Handheld Small Light Portable Multi Gas Detector H2s / O2 / Co / Ex Diffusion Type
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Portable Single Gas Detector | Color | Yellow/black |
|---|---|---|---|
| Alarm Type | Light+Sound | Sampling Method | Diffusion Sampling |
| Display | LCD Screen | Sensor | O2 /H2S / CO: Plug-in Electrochemical Sensor |
| Highlight | h2s portable multi gas detector,co portable multi gas detector,diffusion type portable multigas detector |
||
Product Description

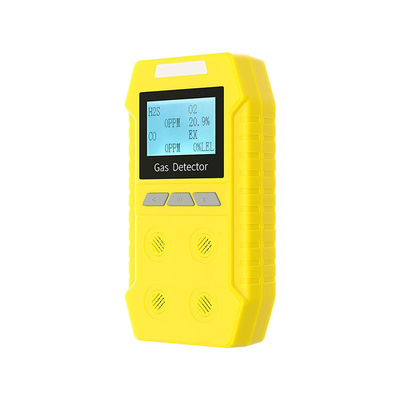

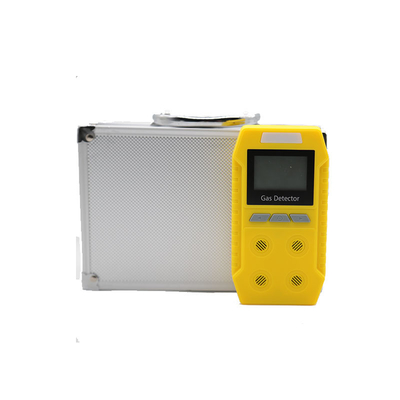

HY20D4 Four in One
Portable multi gas detector CO/ O2/H2S/LEL
OVERVIEW
Portable multi gas detector could detect combustible gas, O2 and other two types of toxic gases continuously and simultaneously.
It is widely used in areas where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers' life and avoid damage to the relevant equipment.
FEATURE
1) Advanced MCU control with low power consumption
2) Adjustable low and high alarm level
3) Adjustable calibrating level
4) High concentration protection for combustible gas
5) Self-test for the combustible gas sensor
6) Low battery indication
7) Replaceable sensor module
8) Self-adjustment function
9) Visual and audible alarm with vibration
10) STEL and TWA alarming for toxic gases
11) Advanced self-examination and self-renovation function
12) Password management to avoid the wrong operation
13) Explosive proof housing
SPECIFICATION
|
Operating & Storage Environment
|
Temperature: -20°C~55°C (-4F~122F)
Humidity: 5%-95% (Relative humidity non-condensing) Pressure: 95~110kPa |
||
|
Sampling method
|
Diffusion type
|
||
|
Detecting Range
|
CO: 0~1000ppm
H2S:0~100 PPM O2: 0~30%vol Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL |
||
|
Sensor
|
O2 /H2S / CO: plug-in electrochemical sensor
|
||
|
Alarm Type
|
low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm
|
||
|
Resolution
|
0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX)
|
||
|
Accuracy
|
3% F.S
|
||
|
Response time
|
10s
|
||
|
Repeatability
|
1%
|
||
|
Zero drift
|
1%
|
||
|
Data record
|
500 sets of data storage
|
||
|
Display
|
Alphanumeric large LCD displays the real time gas concentration and alarm stage
|
||
|
Backlight
|
Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down.
|
||
|
Self-checking Function
|
Self-checking Battery power, display, sensor, hardware failure
|
||
|
Explosion-proof
|
EXiaIICT4
|
||
|
Protection grade
|
IP65
|
||
|
Power Supply
|
Rechargeable lithium battery
|
||
APPLICATION
The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention.
The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, production equipment is not lost.
FAQ
Q: What is your terms of payment ?
A: We accept trade assurance, western union,visa master card, and tt.
Trade assurance can protect you, when you confirm the product then the money into my account.
Q: When do you reply to messages?
A: We will reply you for your inquiry in 24 hours.
Q: What is the warranty for your product ?
A: Warranty: 12 months, Lifetime maintenance
Q: When do you send the products? And how do you send it ?
A: For the small order, we will send out the goods with 5 days,If have stock ,we will send immediately.
We send them by ups, fedex, tnt or dhl. For big order, normal is 20 days will finish.
Q:Do you accept OEM or revised logo, color, model, size?
A: Yes, we accept OEM for the qualified buyer. We can make the products according to customer personal requirement.
Q: How about the quality of the management ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before
shipping to you . We have the certification of ISO, CE we could send the certification test of our company to you.
Q: How about your after-sale service?
A: After sending, we will track the products for you , until you get the products.
When you got the goods, test them, and give me feedback.
If you have any questions about the problem, contact with us, we will offer the solve way for you.
