Six In One Air Quality Portable Gas Leak Detector Industrial Dust Monitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 6 In 1 Gas Analyzer | Gas Unit | PPM, Mg/m3, Vol%, LEL%, PPHM |
|---|---|---|---|
| Function | Multi Gas Detector | Protection Level | IP67 |
| Exterior Dimensions | 180×78×33mm (L×W×H) | Weight | 350g |
| Highlight | air quality portable gas leak detector,zetron portable gas leak detector,6in1 portable multi gas detector |
||
Product Description

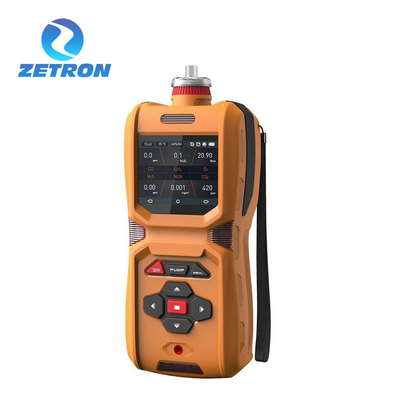

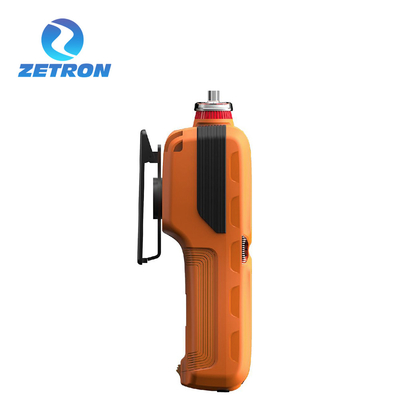

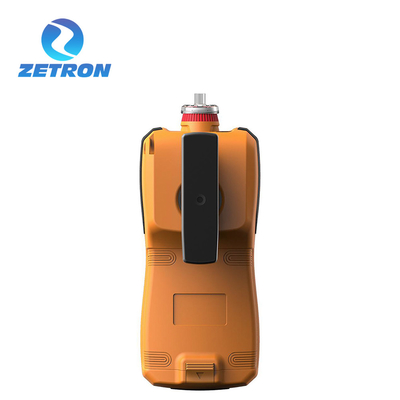

MS600 Six-In-One Portable Gas Detector
OVERVIEW
MS600 Series Portable Composite Gas Detector can be used in: mobile rapid and accurate detection of a variety of gas concentration and measurement of environmental temperature and humidity, if the measurement exceeded the limit value, the alarm will sound.
The interface is simple and easy to operate. far transfer distance, high anti-jamming capability.The shell is made of high strength ABS material, IP65 protection grade, dustproof, waterproof, explosion-proof, and can withstand the test of harsh environment.
It is possible to simultaneously detect 1 ~ 6 types of gases, and the units can be switched freely. The types for detection are more than 500 types.
FEATURES & BENEFITS
· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose and the standard length is 1 meter)
· 0.4-meter stainless steel sampling handle (with a dust filter, not retractable)
· High-temperature sampling and cooling filter handle
· High-temperature humidity pretreatment system
· External remote sampling pump
· SD card, USB disk storage
· Wireless data communications: RS232, infrared communication, automatic recognition
SPECIFICATION
|
Gases to be detected
|
Arbitrary combination of 1 ~ 6 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.Optional configuration: temperature and humidity measurements.
|
||||
|
Application scenarios
|
All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
|
||||
|
Detection range
|
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
|
||||
|
Resolution
|
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 10000 ppm or more), 0.01 mg/l (0 ~ 200 mg/l), 0.1% LEL, 0.01%LEL 0.001% Vol |
||||
|
Detection principle
|
Electrochemical, catalytic combustion, infrared, thermal conductivity,
PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand.
|
||||
|
Allowable error
|
≤±1% F.S (other precision levels can be customized)
|
||||
|
Linearity
|
≤±1%
|
Repeatability
|
≤±1%
|
Uncertainty
|
≤±1%
|
|
Response time
|
T90≤20 seconds
|
Recovery time
|
≤30 seconds
|
||
|
Working environment
|
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
|
||||
|
Temperature and humidity measurement
|
Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
|
||||
|
Power supply
|
3.6VDC, 6000mA high capacity rechargeable polymer battery
|
||||
|
Display mode
|
2.5-inch high-definition color screen
|
||||
|
Alarm mode
|
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
|
||||
|
Communication interface
|
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
|
||||
|
Data storage
|
Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
|
||||
|
Protection level
|
IP67
|
||||
|
Explosion-proof type
|
Intrinsically safe type
|
||||
|
Explosion-proof mark
|
Exia II CT6
|
||||
|
Exterior dimensions
|
180×78×33mm (L×W×H)
|
||||
|
Weight
|
350g
|
||||
|
Standard accessories
|
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter
|
||||
APPLICATION
All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, air governance, warehousing, smoke gas analysis, and so on.
