Ptm600-Aqi SO2 Indoor Air Quality Monitor For Gas Concentration Temp Humidity
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Indoor Air Quality Monitor | Place Of Origin | Beijing, China |
|---|---|---|---|
| Model Number | PTM600-AQI | Warranty | 12 Months |
| Explosion-proof Gas Detector | Exia II CT6 | Gas Unit | PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. |
| Size | 255x210x125 Mm | Weight | 2.5(kg) |
| Highlight | so2 indoor air quality monitor,temp humidity indoor air quality monitor,gas concentration temp air quality monitor |
||
Product Description

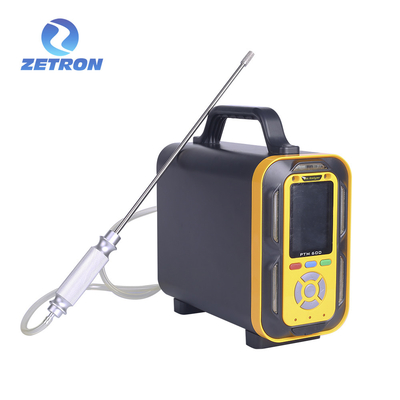

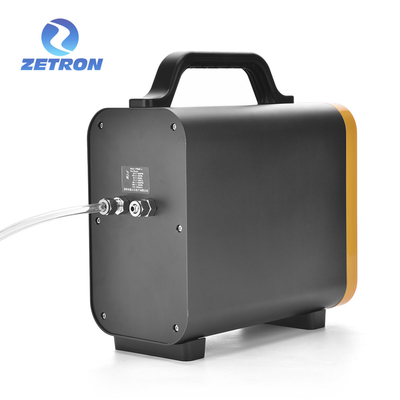

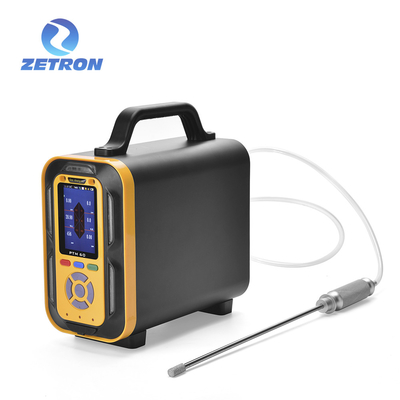

PTM600 Six-in-One Composite Gas Detector
OVERVIEW
PTM600 portable gas detector has the function of measuring multi gases, temperature, and humidity.
The product is provided with high measurement precision, stable performance, simple operation, and convenience to carry. It is suitable for the indoor environment of family, office, inside of cars and natural environment, etc.
It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more types of gases, and the types for detection are more than 500 types.
The product is provided with high measurement precision, stable performance, simple operation, and convenience to carry. It is suitable for the indoor environment of family, office, inside of cars and natural environment, etc.
It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more types of gases, and the types for detection are more than 500 types.
FEATURES
· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose and the standard length is 1 meter)
· High-temperature sampling and cooling filter handle
· High-temperature humidity pretreatment system
· External remote sampling pump
· Multiple humidity dust filter
· CD-ROM (upper-level computer communication software)
· SD card storage
· USB disk storage
· External mini wireless infrared printer
· Built-in mini printer
· Wireless data communications: RS232, infrared communication, automatic recognition
· 1.2 m retractable sampling handle (1-10 meter hose and the standard length is 1 meter)
· High-temperature sampling and cooling filter handle
· High-temperature humidity pretreatment system
· External remote sampling pump
· Multiple humidity dust filter
· CD-ROM (upper-level computer communication software)
· SD card storage
· USB disk storage
· External mini wireless infrared printer
· Built-in mini printer
· Wireless data communications: RS232, infrared communication, automatic recognition
SPECIFICATION
|
Detection factors
|
Detecting gases (standard): CO, SO2, NO2, O3, PM2.5/PM10
|
||
|
CO:Detection range0-10mg/m3,Resolution0.001mg/m3, High-performance electrochemical sensors for environmental testing and analysis
|
|||
|
SO2:Detection range0-2500ug/m3, Resolution1ug/m3, High-performance electrochemical sensors for environmental testing and analysis
|
|||
|
NO2:Detection range0-2000ug/m3, Resolution1ug/m3, High-performance electrochemical sensors for environmental testing and analysis
|
|||
|
O3:Detection range0-2000ug/m3,Resolution1ug/m3,High-performance electrochemical sensors for environmental testing and analysis
|
|||
|
PM2.5:Testing range0-1000ug/m3,Resolution1ug/m3,Laser Principle
|
|||
|
PM10:Testing range0-1000ug/m3,Resolution1ug/m3,Laser Principle
|
|||
|
Optional TVOC, NH3, CO2, and other gases and temperature and humidity, particulate matter, differential pressure, wind speed, etc.
can be expanded to detect any 30 detection factors simultaneously. |
|||
|
Detection method
|
Built-in pump suction type, sampling distance greater than 10 meters high, flow 800ML/min, separate switch button operation switch
air pump |
||
|
Display method
|
3.5 inch 320*240 resolution large screen HD color display
|
||
|
Display content
|
Real-time concentration, alarm, time, temperature, humidity, storage, communication, power, charging status, concentration unit,
gas molecular formula, etc. |
||
|
Detection accuracy
|
≤±1% FS
|
Uncertainty
|
≤±1%
|
|
Linearity
|
≤±1%
|
Repeatability
|
≤±1%
|
|
Response time
|
T90≤20seconds
|
Recovery time
|
≤30seconds
|
|
Working power
|
DC3-5V(standard3.7VDC)
|
||
|
Battery capacity
|
10800mAH rechargeable polymer battery with overcharge, overdischarge, overvoltage, short circuit and overheat protection
|
||
|
Use environment
|
Temperature -40℃~+70℃; Relative humidity: 10-95%RH (non-condensing); Pressure: 80kPa-120kPa
|
||
|
Communication Interface
|
Standard USB charging and communication (can be customized RS485), with charging protection function, support USB hot-swapping,
support RS232 communication |
||
|
Data storage
|
Standard capacity of 100,000 (optional SD card expansion); support local view, delete or data export, storage time interval can be
set arbitrarily |
||
|
Logging
|
Record calibration log, maintenance log, failure log, sensor life expiration reminder, next concentration calibration time
reminder function. |
||
|
Interface language
|
Chinese or English can be set, default Chinese interface
|
||
|
Explosion-proof type
|
Intrinsically safe ExiaⅡCT4Ga
|
||
|
Protection level
|
IP66,Rain and water splash proof, dustproof
|
||
|
Housing material
|
Engineering plastic + 304 stainless steel + high strength, wear and corrosion-resistant aluminum alloy
|
||
|
External Dimension
|
255×210×125mm(L×H×W)
|
Weight
|
2.5Kg
|
|
Standard Accessories
|
Instruction manual, certificate of conformity, USB charger (including data cable), humidity dust filter 1
|
||
|
0.4m stainless steel sampling handle (with standard length 1m hose), high-grade aluminum alloy instrument case
|
|||
|
Optional Features
|
① Temperature detection: -40℃~+70℃ Accuracy 0.5℃; Humidity detection: 0-100%RH Accuracy 3 %RH (while temperature compensation)
|
||
|
② Differential pressure detection, wind speed detection, fall alarm, GPS positioning, SOS one-touch call for help
|
|||
|
③ Wireless data transmission: Bluetooth, WIFI, GPRS wireless transmission, free computer software/ cloud platform/cell phone
APP remote monitoring data |
|||
|
④ Optional internal integrated micro printer or external micro wireless Bluetooth printer
|
|||
|
Print content: company name, gas name, date and time, ambient temperature and humidity, concentration data, test results (whether
qualified) |
|||
|
⑤ Optional 16G or larger capacity SD card supports more than 100,000 data storage capacity
|
|||
|
Optional accessories
|
① 0.9m retractable sampling handle (1 - 10 m hose, standard length 1 m).
② Free uplink communication software (electronic documentation provided) |
||
APPLICATION SCENES
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment, and all other occasions that need to detect and analyze gas concentration.
