Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Test Item | Simultaneous Detection Of 4 Gases, Supporting Up To 6 Gases | Place Of Origin | Beijing, China |
|---|---|---|---|
| Model Number | PTM600-S | Warranty | 12 Months |
| Screen | 3.5-inch LCD | Gas Unit | PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. |
| Work Modes | Diffusion And Pumping | Weight | 300g |
| Highlight | wet oxygen purity analyzer,led oxygen purity analyzer,wet oxygen analyzer for oxygen concentrator |
||
Product Description

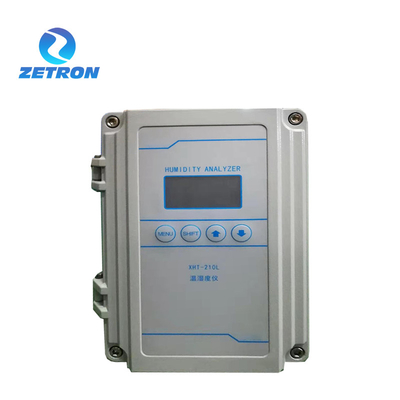

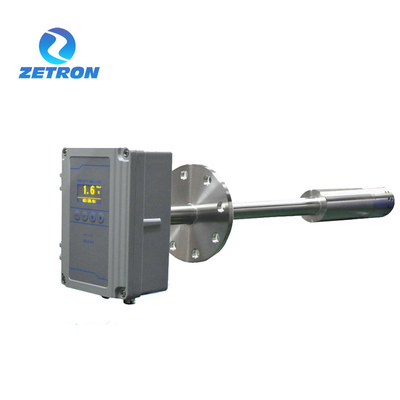

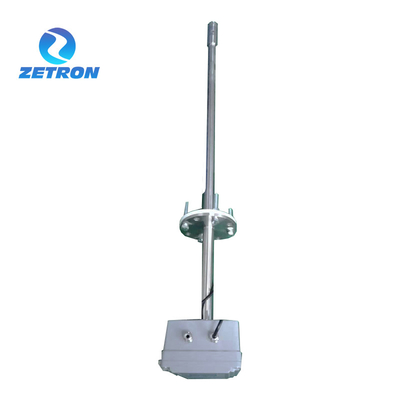

XHT-310L Wet Oxygen Analyzer
OVERVIEW
XHT-310L wet oxygen analyzer can measure humidity and oxygen separately in high temperature environment, the probe has the function of accompanying heat, which can avoid the condensation of water vapor in the gas chamber can realize the accurate measurement of online gas humidity in high temperature environment for a long time, and has strong anti-interference ability.
SPECIFICATION
|
Test principle
|
Dry and wet oxygen
|
|
Test medium
|
Simultaneous monitoring of humidity and oxygen
|
|
Test range:
|
Volume percentage: 0-40% Vol
|
|
Oxygen
|
0-25%
|
|
Working temperature
|
Instrument: - 30 ～＋ 75 ℃, probe rod 0 ～ 190 ℃, working environment of sensor: 0-400 ℃
|
|
Measurement accuracy
|
Vol < ± 1.5% FS O2 < ± 2% FS
|
|
Repeatability
|
< ± 1.5% VO, O2 < 2%
|
|
Stability
|
< 2% vol / year, O2 < 3% / year
|
|
Initialization time
|
120 seconds
|
|
Response time:
|
T90 < 30s
|
FEATURES
* Integrated design, easy to install, and reduce the influence of external interference on the measured value.
* The humidity and oxygen monitor adopts a dual sensor design, which can effectively guarantee the accuracy and service life of the instrument.
* Adopt LED display, more convenient when operating with a simplified Chinese display
* Can be used continuously in a high-temperature environment with reliable stability
* Two-stage dust filtration design, effective filtration of dust and acidic liquids.
* Infinity 316F probe rod material, strong corrosion resistance.
* Instrument body protection grade IP65.
* Simple operation, long service life, and easy maintenance.
* Provide two kinds of display results: volume percentage and oxygen.
APPLICATION SCENES
The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention.
The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.
