Zt100k Mini Combustible Portable Natural Gas Leak Detector Indoor Outdoor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Portable Gas Detector | Recovery Time | ≤30 Seconds |
|---|---|---|---|
| Protection Grade | IP 65 | Display | LCD Screen |
| Weight | 0.12(kg) | Size | 114*60*26mm (L*W*H) |
| Highlight | zt100k portable natural gas leak detector,outdoor portable natural gas leak detector,combustible natural gas leak detector alarm |
||
Product Description

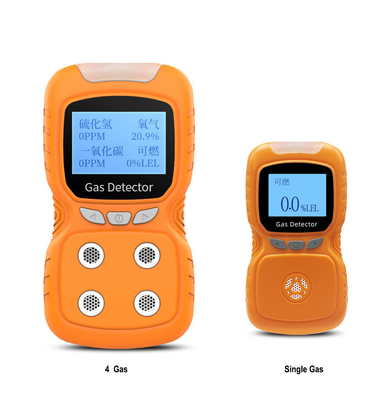

ZT100K Portable Diffusion Gas Detector
OVERVIEW
Providing protection for atmospheric hazards including oxygen, combustible and toxic gases, the types of gases for detection are more than 500 types, ZT100K is unparalleled in its versatility, capability and overall value.
Continuously monitoring and displaying concentrations of gas, the compact and lightweight ZT100K was designed and engineered with an extensive host of applications in mind.
FEATURES & BENEFITS
• Large LCD display, easy to read
• Multi-language, support Chinese and English
• Multi alarm mode: Low & high alarm, sensor alarm, battery low alarm, automatic shutdown alarm
• Full function self-test confirms sensor, battery, and circuitry integrity and audible/visual alarms on activation
• Users can quickly understand the use and maintenance
|
Measuring gas
|
Combustible gas(LEL)
|
Measuring Type
|
Diffusion type
|
|
Measuring range
|
0～100%LEL
0～100%Vol Other ranges can be customized |
Resolution
|
0.1 %LEL
0.1 %Vol Other resolution can be customized |
|
Response time
|
T90 ≤30 seconds
|
Recovery time
|
≤30 seconds
|
|
Display
|
Large LCD displays
|
Alarm
|
Voice Warning & Light
|
|
Size
|
0.12 Kg
|
Weight
|
114*60*26 mm
|
|
Explosion-proof
|
EXiaIICT4
|
Protection grade
|
IP 65
|
|
Battery
|
3.7VDC,2500mAh
Imported lithium batteries |
Charing Time
|
≤6 hours ( USB charging)
|
|
Standard accessories
|
Manual, qualification certificate, warranty card, USB charger, instrument case
|
||
APPLICATION
The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention.
The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.
| Type | Range (optional, customizable) |
| CO | 0-200/1000ppm |
| CO(with H2 compensation) | 0-200/1000ppm |
| H2S | 0-50/100/200/1000/5000ppm |
| O2 | 0-25%vol |
| NO2 | 0-20/500ppm |
| NO | 0-100/1000ppm |
| SO2 | 0-20/100/2000ppm |
| CL2 | 0-20/200/2000ppm |
| NH3 | 0-100/1000/5000ppm |
| H2 | 0-1000/10000/40000ppm |
| H2 (with CO compensation) | 0-1000ppm |
| PH3 | 0-5/20/1000ppm |
| CH2O | 0-10/50/1000ppm |
| O3 | 0-5/20/100/1000ppm |
