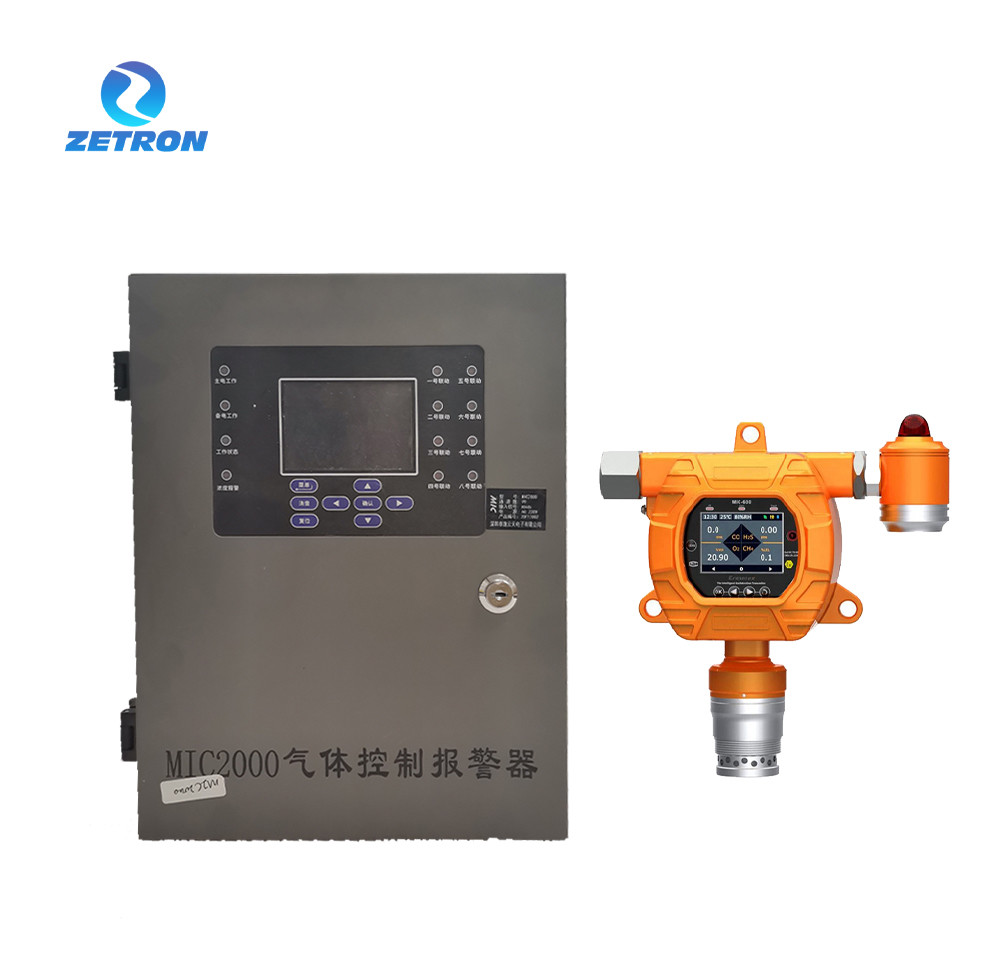

MIC2000-8 Eight Channels Gas Alarm Detection Controller With Fixed Gas Detector

MIC2000-8 Eight Channels Gas Alarm Controller

MIC2000-8 Gas alarm controller is a centralized alarm controller for gas concentration monitoring and leakage. The power source is directly powered by the mains grid or battery. This alarm controller receives RS485 signal and 4-20mA, and temporarily can only receive RS485 signal output by our company's new online detector. One gas alarm controller can be connected to 120 channels of bus system RS485 output gas detectors and 8 channels of 4-20mA output gas detectors, and more input channels can be customized.



Signal input	1～32 channels 4～20mA, RS485 input at the same time, 255 probes can be connected
Output signal	Ethernet, RS485 (standard MODBUS protocol), 4-20mA (4 channels, 8 channels optional)
Display accuracy	±0.1%FS
Display mode	high-definition color screen, six-channel simultaneous display or large-font single-channel circular display, more than six channels automatically or manually turn the screen and circular display
Control loop	standard is 4 channels, 1 public output, optional 8 channels, 12 channels, 16 channels control output
Automatic detection	line break/short circuit detection, various detector states, function detection, etc.
Working temperature	-40℃～+70℃
Maximum power consumption	2.5W/channel





MIC2000 gas detection controller is used to connect with the fixed gas detector and the related equipment in the industrial scenes, such as petroleum refineries, LPG stations, boiler rooms, gas stations, metallurgy, mining, fire, environmental protection, etc.
