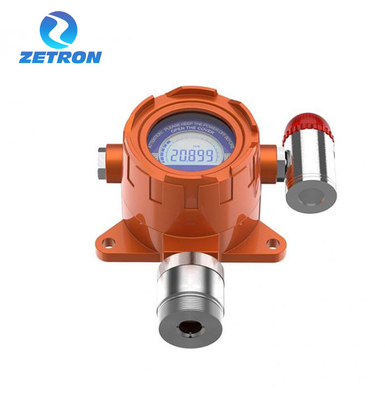

MIC100 Online Fixed Gas Leak Detector Industrial Toxic Gas Monitoring Device Oem

  • MIC100 Online Fixed Gas Leak Detector Industrial Toxic Gas Monitoring Device Oem
  • MIC100 Online Fixed Gas Leak Detector Industrial Toxic Gas Monitoring Device Oem
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC-100
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Gas Unit PPM
Customized Support OEM, ODM, OBM Warranty 12 Months
Weight 1.6(kg) Size 180*140*92mm (L*H*W)
Highlight

mic100 fixed gas leak detector

,

oem fixed gas leak detector
Leave a Message
Product Description

MIC200 Fixed Online Gas Detector


OVERVIEW


MIC100 Series require no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
Strong, durable, and explosion-proof shell and fluorocarbon surface treatment processes are suitable for use at a variety of hazardous places and corrosive environments.


MIC100 Online Fixed Gas Leak Detector Industrial Toxic Gas Monitoring Device Oem 0MIC100 Online Fixed Gas Leak Detector Industrial Toxic Gas Monitoring Device Oem 1=MIC100 Online Fixed Gas Leak Detector Industrial Toxic Gas Monitoring Device Oem 2MIC100 Online Fixed Gas Leak Detector Industrial Toxic Gas Monitoring Device Oem 3




FEATURES
  • Imported Sensors,Infrared Remote Control
  • 24 hours continuous online monitoring of gas concentration, and the types for detection are more than 500 types.
  • Gas units can be customized: Normally PPM, %Vol, %LEL, other: mg/m3, PPHM, ppb, mg/l.
  • Diversified Data Communication Methods
SPECIFICATION



Gas
Nitric Oxide
Sensor
Electrochemical
Range
0-500,1000,2000ppm
Can be customized
Resolution
0.1 ppm; Can be customized
Smapling Method
diffusion/pump
Control Method
Controller/Infrared remote control
Working Temp
-20 ℃ ~ + 70 ℃;(Standard Values)
-40 ℃ ~ + 80 ℃;(Limit Value)
Humidity
10 ~ 95% RH
Voltage
≤2.5 W(DC24V)
Power
12～30VDC
Protection level
IP65
Explosion-proof
Exd Ⅱ CT6
Alarm
Audible；Light(option)
Display
LCD/without LCD Display
Cable
PVVP3 * 1.0mm 2
Transmission Distance
≤1000m
Installation
Wall-mounted；Ceiling-mounted；Vertical pipe-mounted; Horizontal pipe-mounted
Size(mm)
180*140*92
Weight(Kg)
1.6
Kit
Manual, qualification certificate, warranty card, outer packaging box

APPLICATION


All the cases which requires the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

MIC100 Online Fixed Gas Leak Detector Industrial Toxic Gas Monitoring Device Oem 4
