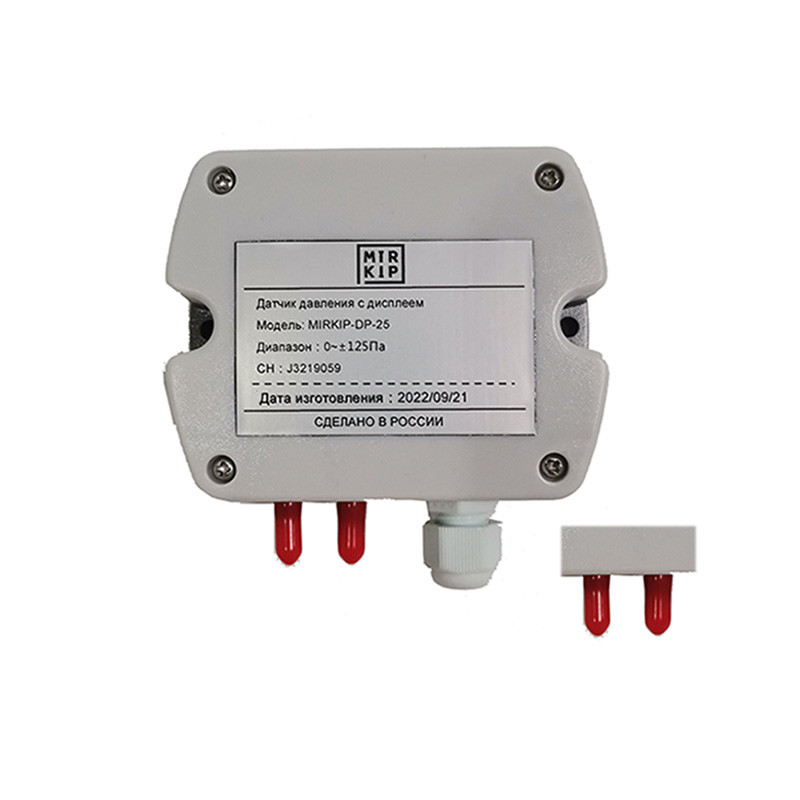

DP-25 Dp Transmitter LCD Liquid Crystal Display Anti Vibration

  • DP-25 Dp Transmitter LCD Liquid Crystal Display Anti Vibration
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number DP-25
Minimum Order Quantity 1
Packaging Details alloy case
Delivery Time 5-7 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Medium Air Or Neutral Gas Humidity ≤85%RH
Output Load Voltage Type Output Is More Than 1000Ω, Current Type Output Is Less Than 500Ω Power DC12～24V/100mA
Highlight

anti vibration dp transmitter

,

liquid crystal display dp transmitter

,

lcd differential pressure transmitter
Leave a Message
Product Description



DP-25 Differential Pressure Transmitter

OVERVIEW



DP-25 The instrument selects TE (Tyco) high-precision differential pressure sensor, a variety of range specifications are optional, and with advanced circuit design and structure design, stable and reliable quality, high test accuracy, clear display numbers, easy to use. Reasonable structure design, compact size, and convenient installation. According to customer-specified requirements customized range, flexible and convenient.

FEATURES & BENEFITS



●Differential pressure transmitter can quickly measure the differential pressure of air or non-corrosive gases

●Display the differential pressure digitally with a 4-bit LCD liquid crystal.

●RS485, 4-20mA, 0-5V or 0-10V multiple output options.
●The site can directly adjust the zero.
●Add a complex filtering algorithm, the degree is more stable.
●Meets the GMP standards for clean rooms and the EU and FDA standards.



SPECIFICATION



Range Accuracy Pressure Resolution
0-±125Pa ±0.6Pa 100psi 0.1Pa
0-±250Pa ±1Pa 100psi 0.1Pa
0-±500Pa ±1.25Pa 100psi 0.1Pa
0- 1000Pa ±2.5Pa 100psi 1Pa
0- 2500Pa ±6.25Pa 100psi 1Pa
0- 5000Pa ±12.5Pa 100psi 1Pa



Work environment Temp:-10～50℃ Humidity:≤85%RH
Measurement medium Air or neutral gas
Size 90×90×30 (mm)
Protect level IP65
Power DC12～24V/100mA



DP-25 Dp Transmitter LCD Liquid Crystal Display Anti Vibration 0



APPLICATION



Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications.



It can be widely used in electronics, pharmaceutical, biotechnology, aerospace, and other production, and scientific research departments, It is an ideal instrument for pharmaceutical enterprises and quality supervision departments to implement GMP standards and strengthen production environment management.

DP-25 Dp Transmitter LCD Liquid Crystal Display Anti Vibration 1
