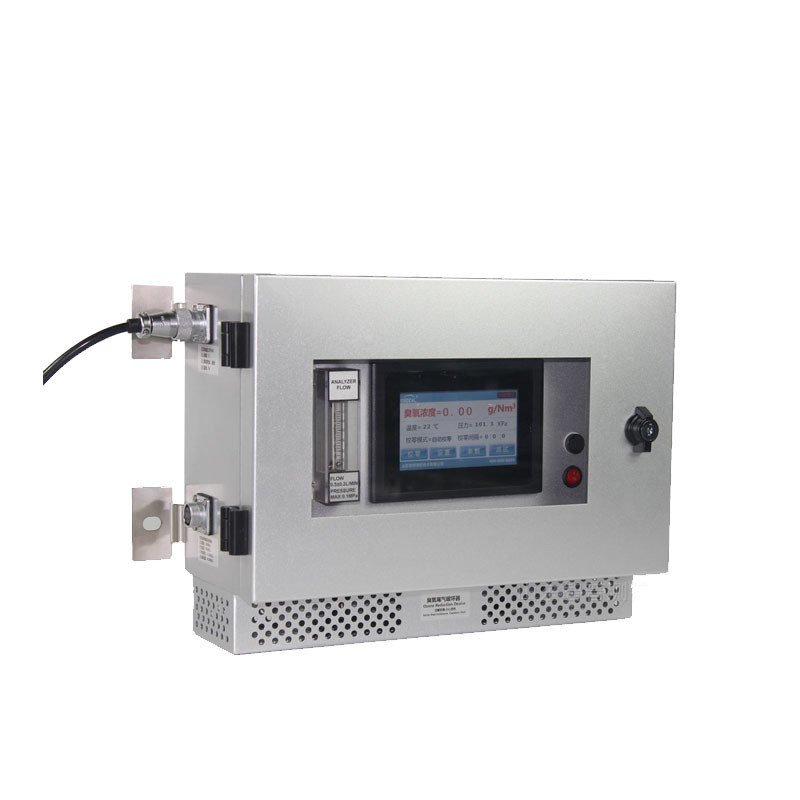

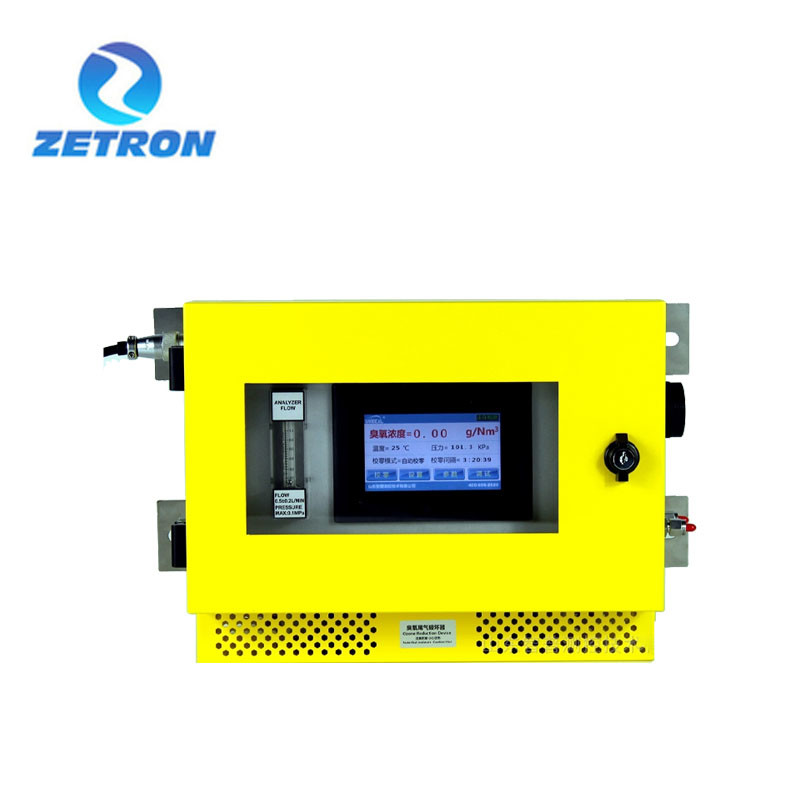

UV-2300C Wall Mounted Ozone Analyzer Continue Concentration In Operating Pipelines

  • UV-2300C Wall Mounted Ozone Analyzer Continue Concentration In Operating Pipelines
  • UV-2300C Wall Mounted Ozone Analyzer Continue Concentration In Operating Pipelines
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number UV-2300C
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Resolution 0.01 G/m3, 0.01ppm Note: 1mg/L=1g/m3=467ppm Sampling Method Positive Pressure Sampling , Negative Pressure Sampling
Sampling Flow Rate 0.5L±0.2L/min Light Source Life About 30000-50000 Hours
Input Pressure <0.1MPa Ambient Temperature -20～50℃.
Highlight

wall mounted ozone gas analyzer

,

wall mounted ozone analyzer

,

pipelines ozone analyzer
Leave a Message
Product Description

UV-2300C Ozone Concentration Analyzer

OVERVIEW



This ozone concentration analyzer is mainly used for ozone concentration measurement in the ozone generator pipeline, and can continuously detect the ozone concentration in the ozone generator outlet pipeline online. It is mainly used for the continuous detection of ozone gas in various industrial environments, and can also be used to detect ozone gas in operating pipelines, vessels, and other settings. Widely used in pharmaceutical, chemical, municipal, sewage treatment, and other industries, the ozone generator outlet concentration, and ozone generator output measurement.

The ozone concentration detector calculates the current ozone concentration value by measuring the change in light signal intensity before and after the absorption of ultraviolet light by ozone. Equipment using an advanced dual-optical UV light source system, equipped with a lamp intelligent management system, after power on the UV lamp can quickly reach the measurement state, using the German separation of light cell technology, the equipment has no leakage, high-pressure resistance, resistance to the impact of large flow sampling gas, easy to clean, easy maintenance, simple operation, low cost of use and other characteristics.

Ozone concentration detector equipment every 1 hour automatic zero point blowing once to ensure the stability of the zero point, to prevent the zero point drift affect the accuracy of the detection concentration, the gas flow, pressure, and flow rate remains unchanged during the calibration zero, to prevent the impact of airflow on the calibration zero, to ensure that the equipment can operate continuously 24 hours a day.



UV-2300C Wall Mounted Ozone Analyzer Continue Concentration In Operating Pipelines 0Tag: Exhaust ozone detector, Ozone detector, Ozone concentration online monitor, Ozone generator manufacturer, Tabletop ozone analyzer, Wall-mounted Ozone Gas Analyzer, OEM/ODM services
