0-100 Ppm Portable Single Gas Detector With Alligator Clips For Easy Carrying

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFunction | Single Gas Analyzer | Detection Range | 0-100 Ppm |
---|---|---|---|
Size | 90*60*33mm | Weight | 125g |
Highlight | 0-100 ppm portable single gas detector,easy carrying portable single gas detector |

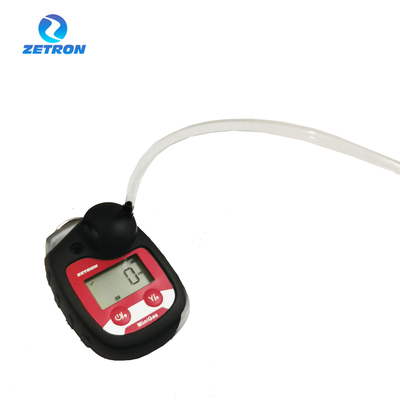

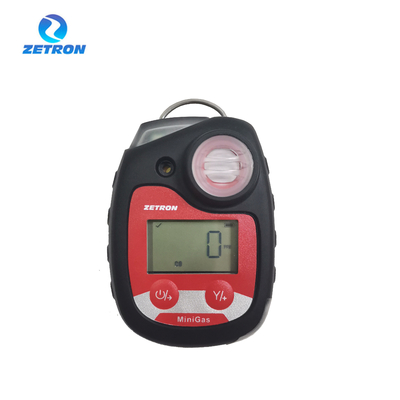

MiniGas Personal Gas Detector
MiniGas is small, sturdy, ergonomic, and can be attached to a work coat or cap with alligator clips for easy carrying. It offers up to 2 years of protection with no need for calibration, sensor replacement, battery replacement, or battery charging. It’s IECEx, ATEX, and CNEX explosion-proof certificated and meets the highest standards of quality and reliability to ensure workers’ safety and compliance. MiniGas can detect toxic and harmful gases like carbon monoxide and sulfur dioxide, other toxic gases can be customized, and it is widely used in petroleum, petrochemical, and other industries for gas detection and personnel protection.
- Low power consumption and long standby time, the standby time is up to 2 years, no need to replace the battery
- Maintenance free: just turn on the device and it will run continuously -no calibration, no sensor replacement, no battery charging
- Ultra-high buzzer alarm sound, 2 high-bright red LED up and down alarms, sound, light, and vibration triple alarm to remind workers
- High point alarm, low point alarm, TWA, STEL multiple alarm types, the user can adjust the alarm set point as needed throughout the life cycle
- Automatic logging of 10 sets of recent alarm events for easy and accurate record keeping
- Protection class IP68, splash-proof, dust-proof, explosion-proof, shock-proof, intrinsically safe circuit design
- Compact and lightweight design with two-button operation without extensive training
- Affordable, with a low cost of ownership
- Small size, lightweight, easy to carry
- The shell is made of high-strength materials, designed for a variety of harsh environments, comfortable and durable
- With a self-test function, which can improve safety by automatic self-test
- One press to check the battery and voltage
Gas Type
|
Harmful and toxic gas
|
Sampling method
|
Diffusion
|
Detection range
|
0-100 ppm
|
Resolution
|
0.1ppm
|
Principle
|
Electrochemical principle
|
Unit
|
PPM, mg/m3, %VOL, μmol/mol
|
Display
|
Gas name, concentration unit, measured value, electricity
|
Alarm mode
|
Sound, light, vibration alarm, high and low alarm values can be set by yourself
|
Alarm type
|
Low alarm, high alarm, STEL, TWA, low battery
|
Explosion-proof
|
Grade ExiaIICT4Ga
|
Protection class
|
IP68
|
Working temperature
|
-20℃~55℃
|
Working humidity
|
0-95%RH (non-condensing)
|
Dimensions
|
90*60*33mm
|
Weight
|
125g
|
Gas |
Range |
Other available range |
Resolution |
CO |
0-1000ppm |
0-500ppm |
1ppm |
H2S |
0-100ppm |
0-10ppm, 0-50ppm |
0.1ppm |
O2 |
0-30%VOL |
0-5%VOL, 0-25%VOL |
0.1%VOL |
NH3 |
0-100PPM |
0-200ppm |
0.1ppm |
SO2 |
0-100PPM |
0-20ppm, 0-50ppm |
0.1ppm |







The detector is widely used in the petroleum, and chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, and explosion prevention.
The detector can effectively predict the concentration of dangerous gas alarms, ensuring that staff life's safety is not threatened, and production equipment is not lost.
