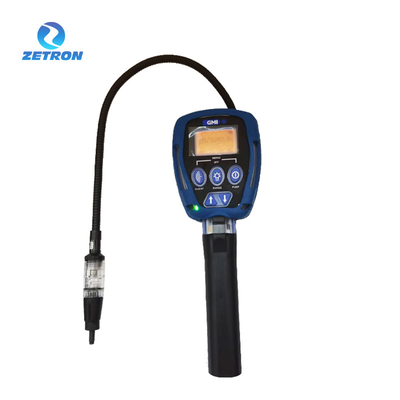

GT Series Portable Multi Gas Detector PPM LEL And Volume Methane Flammable Gas

  • GT Series Portable Multi Gas Detector PPM LEL And Volume Methane Flammable Gas
Place of Origin German
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number GT44
Minimum Order Quantity 1
Packaging Details Plastic box
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Item NO, NO2, SO2, CO, CO2-(IR) And O2 Display LCD Screen
Alarm Type Light+Sound+Vibrating Power Supply AC Mains Unit 100 V To 240 V (50 To 60 Hz)
Weight 0.78(kg) Size 290*95*43mm (L*W*H)
Highlight

lcd portable multi gas detector

,

100 v portable multi gas detector

,

lcd portable multi gas monitor
Leave a Message
Product Description
GT44 Series Portable Gas Detector

OVERVIEW



This instrument is a highly flexible five-button portable gas detector that can be used for leak detection, concentration detection, and safety monitoring of LEL (lower explosive limit) and VOL (volume ratio) of combustible gases. The instrument has a range for detecting combustible gases at the PPM level and can be used to detect trace gas leaks with high sensitivity for monitoring indoor air, it is designed to meet the requirements of the latest standards for gas detection in hazardous areas.
The GT series is suitable for detection in confined spaces, such as sewers, underground pipes, storage tanks, and other monitoring requirements. It has high intensity and high brightness audio-visual alarm and toxic gas concentration early warning performance. The user can easily operate the device with a single button.

FEATURE

1.Measures up to 4 gases
2.Gas leak detection,Confined space monitoring
3.Integral pump with pressure sensor for flow fail detection. Sample path is protected by a hydrophobic
filter.
4.Surveying and purging
5.PPM, LEL and Volume Methane flammable gas ranges for leak detection
6.Manual and automatic data logging
7.Alarm:Loud audible and high visual 'ticker' (Geiger) on ppm range.High visibility LEDs on both sides of
instrument 85 db audible alarm All alarms user programmable via password protected menu.
8.Integral flashlight
9.Alkaline or rechargeable battery options
10.Charging via simple power cable or docking station
11.Rugged polycarbonate case, sealed to IP54
12. 7 Application Modes
Leak Test Mode: measures methane in three different distinct ranges (ppm/LEL/%Volume). Autoranging between all three ranges, audible, visual, and gieger alarms, and ergonomical design allows for easy one handed operation. Also ideal for carbon monoxide investigations.
Confined Space Mode: measures up to 4 gases (O2, LEL, CO, H2S) simultaneously with audible visual alarms, datalogging, and min/max values.
Bahole Mode :for testing undrerground leaks. In this mode the GT measures gas beginning in the LEL range and autoranges to %Volume. Barhole probe included with instrument.
Carbon Monoxide Mode: measures CO directly in ppm. Menu items for air free CO (O2 correction) when fitted with an O2 sensor, and differential CO.
Purge Mode: for measuring methane from 0-100% Volume in inert atmospheres.
Sniffer Mode: enables rapid leak detection by measuring methane 0-10000 ppm with the semi-conductor fitted at the end of the flexi probe. Audible/visual gieger allows for easy pinpointing of leaking pipes.
Pressure Mode :measures from 0-60" of water column via a pressure sensor on the back of the instrument. Ideal for tightness tests on gas systems up to 2 PSI.


TECHNOLOGY PARAMETER



Mode
GT44
Gas
Methane flammable gas
Sensor 1
Semiconductor
Range
0-10,000ppm (1ppm)
Sensor 2
Catalytic Bead
Range
0-100% LEL (1%LEL)
Sensor 3
Thermal Conductivity Sensor
Range
0-100% Vol ( 1%%Vol)
Dimensions
290 x 95 x 43 mm /
11.4 x 3.7 x 1.7” (Excl. Probe)
Weight
0.78 kg /
1.7 lbs (Incl. Probe & Batteries)
Display
LCD with backlighting
Humidity
0-95% non condensing
Alarms
High visibility LEDs on both sides of instrument , 85 db audible alarm
All alarms user programmable via password protected menu
Sampling
Integral pump with pressure sensor for flow fail detection. Sample path is protected by a hydrophobic filter.
Response Time
T90 < 30 seconds
Rating
IP54 (Dust protected and splashproof)
Battery
3 ‘C’ type batteries – LR14 alkaline or rechargeable
Battery Life
8 hours continuous alkaline or rechargeable
Construction
High impact polycarbonate ABS blend
Certification
UL 913 Class I, Div 1, Groups C, D CSA Class I, Groups C, D C22.2 No. 152 SIRA05 ATEX II 2G EEx iad IIB T3 IECEx Exiad IIB T3
