CE Portable Emission Analyzer Certified Marine Ship Testo 350 Maritime

  • CE Portable Emission Analyzer Certified Marine Ship Testo 350 Maritime
Place of Origin German
Brand Name HiYi
Certification CE, ISO13485, ISO9001
Model Number Testo 350 MARITIME
Minimum Order Quantity 1
Packaging Details Plastic box
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Item NO, NO2, SO2, CO, CO2-(IR) And O2 Product Name Emission Analyzer
Weight 17 Kg Size 565 X 455 X 265 Mm (case)
Highlight

ce portable emission analyzer

,

testo 350 certified portable emission analyzer

,

marine testo 350 portable emission analyzer
Leave a Message
Product Description

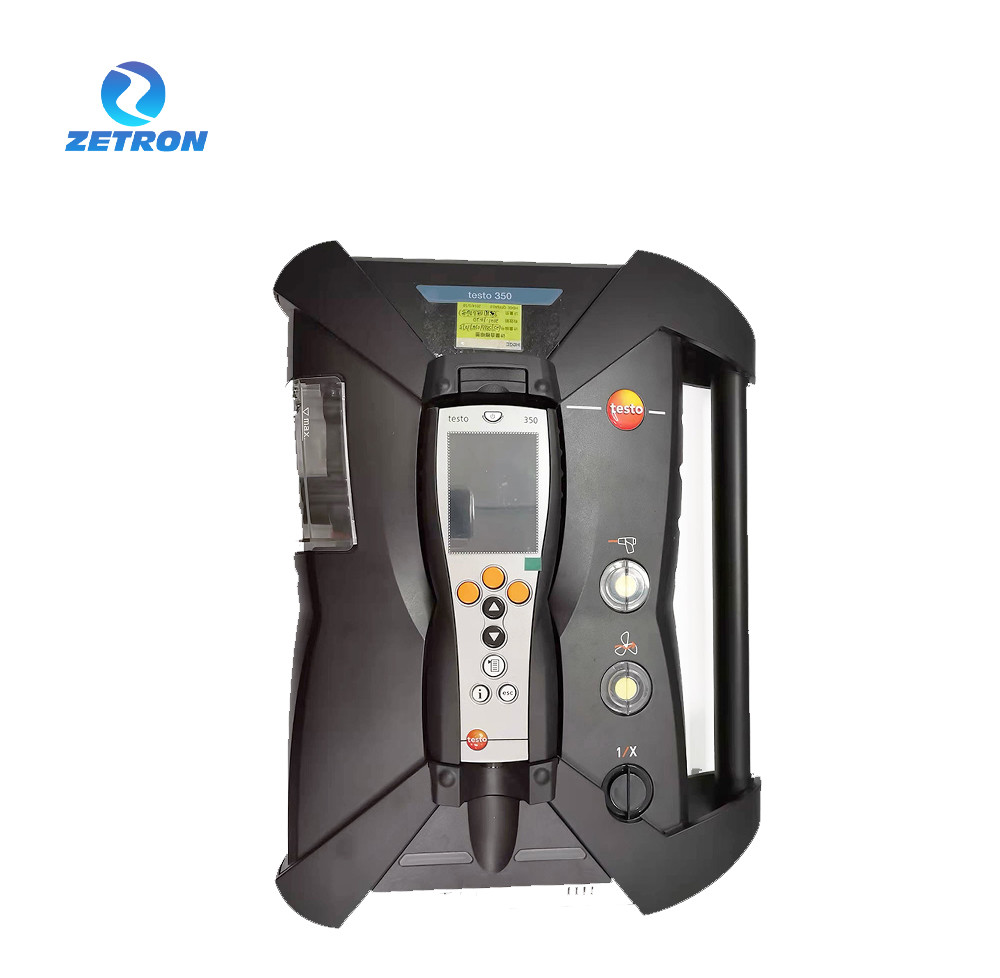

Testo 350 MARITIME Flue Gas Analyzer

OVERVIEW


 It complies with the directive on marine equipment and has the MED mark of conformity 0098/2018.

The analyzer is able to measure a wide range of the most important gases simultaneously, including NO, NO₂, SO₂, CO, CO₂ and O₂. As such, it is ideal for the periodic on-board direct measurement of emissions, as well as after modification or adjustment of the engines. As a semi-continuous multigas analyzer, the Testo 350 MARITIME provides a complete picture of combustion emissions. Weighing just 17Kg, the instrument is supplied complete with a rechargeable battery and gas sampling probe, and with a robust, wheeled, protective case it is easy to transport, including by aircraft.

FEATURE

* With DNV GL and NK certificate according to MARPOL Annexe VI and NOx Technical Code 2008
* Unrestricted availability thanks to pre-calibrated gas sensors which are exchangeable on site
* Tested gas sensors — as good as reference measurement technology
Testo proudly presents the world’s first portable exhaust gas analyzer for diesel ship engines: the testo 350 MARITIME! The groundbreaking exhaust gas analyzer measures emissions at diesel ship engines in compliance with MARPOL Annex VI and NOx TechnicalCode 2008.


TECHNOLOGY PARAMETER



Weight
Approx. 17 kg
Dimensions
565 x 455 x 265 mm (case)
Operating temperature
5 to +45 °C
Connectable probes
1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x temperature probe; 1 x differential pressure
Product colour
Black
Standards
Germanischer Lloyd (DNV GL) Certificate Nippon Kaijik Kyokai (Class NK) certificate according to MARPOL Annex VI and NOx Technical
Code 2008
Power supply
Li ion rechargeable battery; AC mains unit 100 V to 240 V (50 to 60 Hz)
Pump flow
1 l / min. with flow monitoring
Dewpoint calculation
0.04 °Ctd; 99 °Ctd
Interface
IR/IRDA interface; Bluetooth®; USB; data bus; trigger input; Differential Pressure; probe input/ probe inputs; DC-voltage input;
Mains connection; dilution gas inlet for measurement range extension
Storage temperature
-20 to +50 °C
Dewpoint calculation
0 °Ctd; 99 °Ctd
Trigger input
Voltage 5 to 12 Volt (rising or trailing edge) pulse width > 1-sec load: 5 V/max, 5 mA, 12 V/max. 40 mA
Maximum
250,000 readings
Interface
data bus; Bluetooth®; USB; IR/IRDA interface; Mains connection; trigger input; Differential Pressure; probe input/ probe inputs;
DC-voltage input; dilution gas inlet for measurement range extension
