Multi Zetron GMS4000 natural gas leak tester IP 54

  • Multi Zetron GMS4000 natural gas leak tester IP 54
  • Multi Zetron GMS4000 natural gas leak tester IP 54
Place of Origin German
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number GMS4000
Minimum Order Quantity 1
Packaging Details Plastic box
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Item CH4, H2, O2, CO, H2S Product Name Gas Analyzer
Protect Level IP 54 Temperature Range -20'C~+40'C
Size 250 X 65 X 120 Mm Weight 1.5 Kg
Highlight

Zetron Natural Gas Leak Tester

,

IP 54 Natural Gas Leak Tester

,

IP 54 Multi Gas Leak Detector
Leave a Message
Product Description

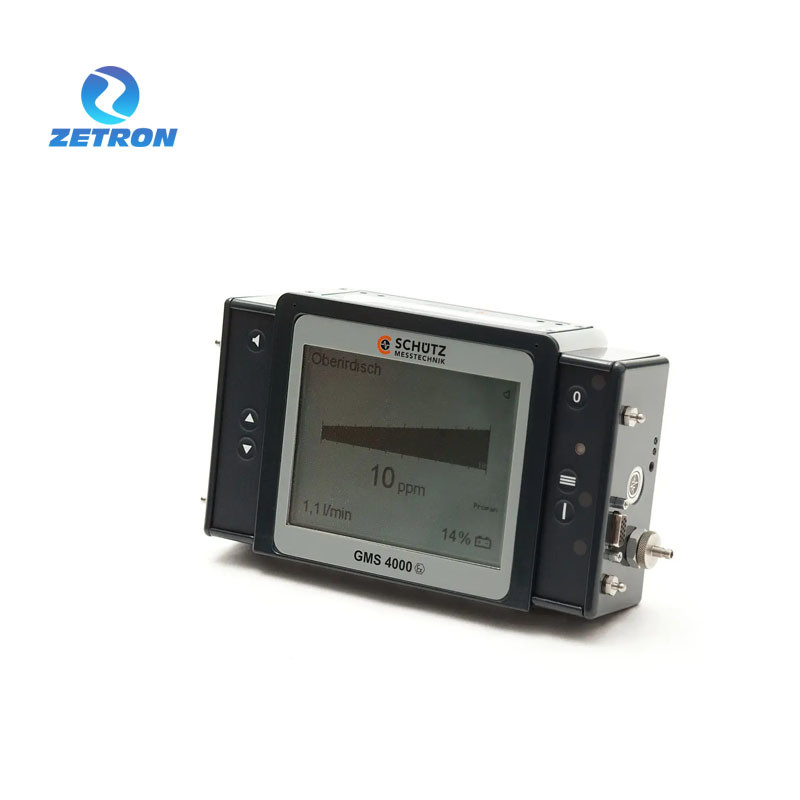

GMS4000 Gas Leak Detector

OVERVIEW



The device innovation GMS 4000 is the universal device for leak detection, network control, and gas analysis. With infrared measurement technology, the measuring instrument can determine natural gas and CO2 precisely and without cross-sensitivities. The GMS 4000 detects heavy gas, oxygen, hydrogen sulfide, and carbon monoxide (optional sensors). In addition, the ethane/propane analysis with data storage of the measurement results is possible. A Bluetooth interface and a GPS receiver are available. Data storage with the GPS coordinates and the transfer of the data to the PC to document the route are also possible.


FEATURE

  • Large LCD display with automatic lighting
  • Digital and analog displays are possible
  • Very simple operation through automatic measuring range and menu control
  • Selective CH4 measurements with clear measurement results
  • Selective CO2 measurements with clear measurement results
  • Determination of damage points in drill/probe holes
  • Concentration measurements in pipelines
  • Long operating time thanks to lithium-ion batteries
  • Integrated GPS receiver with data storage
  • Integrated Bluetooth interface
  • Free PC software for file transfer
  • Extremely robust for tough practical use
  • Robust and lightweight metal housing (aluminum)
  • Long-term guarantee of 5 years

TECHNOLOGY PARAMETER



Indication Illuminated LCD Display
Alarm Acoustically, optically
Sensors Semiconductor ppm CH4
Infrared sensor Vol.% CH4
Infrared sensor Vol.% CO2
Electrochemical Vol.% O2
Electrochemical ppm CO/H2S
Gas chromatography
Measuring range 1ppm - 2,2 Vol.% CH4
0 - 100 Vol.% CH4
0 - 100 Vol.% CO2
0 - 25 Vol.% O2
0 - 500ppm CO
0 - 100ppm H2S
Gases flammable gases, carbon dioxide, oxygen, carbon monoxide, hydrogen sulfide
Operating temperature -20° C up to 40° C
Measurement data memory 25 inspections, 40 individual measurements, 64 gas analyzes
Protection class IP 54
Energy Supply Li-Ion Battery
Operating time More than 14 hours
Casing Aluminum, powder-coated
Dimensions 250 x 65 x 120 mm
Gewicht 1500g
Interface Serial RS232, Bluetooth, GPS
