Automatic 0.1pa Filter Integrity Tester Monitoring For Pharmaceutical Factory
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Differential Pressure Resolution | 0.1pa | Display Method | 10-inch Touch Color Touch Screen |
|---|---|---|---|
| Interface Ethernet | USB RS485 | Temperature Range | -20'C~+40'C |
| History Record | ≥5 Years Storage | Weight | 30 Kg |
| Highlight | Automatic 0.1pa Filter Integrity Tester,Pharmaceutical Factory Monitoring Filter Integrity Tester |
||
Product Description

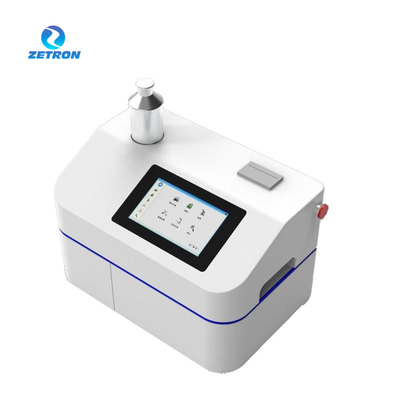

Packaging Leak Tester MFT-900
OVERVIEW
It is suitable for sealing integrity testing of pharmaceutical packaging to prevent moisture, oxygen, and microorganisms from contaminating products. Medicines: bottled, bagged, boxed, ampoules, vials, cartridges, prefilled needles (PFS), (BFS), (FFS), etc.
FEATURE
◎Comply with USP <1207>, ASTM F2338 standards and FDA standards.
◎Semi-automatic detection, suitable for small batch and multi-variety testing.
◎Non-destructive non-destructive testing, high accuracy, repeatability, and sensitivity.
◎The instrument is used for vacuum pressure difference detection.
◎The leak rate can be automatically converted into defect aperture μm.
◎Semi-automatic detection, suitable for small batch and multi-variety testing.
◎Non-destructive non-destructive testing, high accuracy, repeatability, and sensitivity.
◎The instrument is used for vacuum pressure difference detection.
◎The leak rate can be automatically converted into defect aperture μm.
TECHNOLOGY PARAMETER
|
Differential pressure sensor
|
±2kpa, error≤0.5%F.S.
|
|
Differential pressure resolution
|
0.1pa
|
|
Test pressure sensor
|
Error≤±1%F.S.
|
|
Test pressure range
|
-0.1～0.2MPa/-0.1～0.7MPa/-0.1～1.0MPa
|
|
Minimum detectable aperture
|
2μm ( for IV bag minimum 5μm)
|
|
Display method
|
10-inch touch color touch screen
|
|
Voltage
|
AC100V-240V, 50/60Hz, power ≤200W
|
|
Weight
|
Host: about 30kg
|
|
Audit trail
|
≥5 years of storage Multiple event logs, which can be queried according to time
|
|
Data backup
|
Support U disk to export data
|
|
Signal output
|
(4-20) mA, RS485, 12V alarm output
|
|
Interface
|
Ethernet USB RS485
|
Tag: Packaging Leak Tester , Package Integrity Tester, gas integrity meter, Pharmaceutical Laboratory, Bottled, Medicine, Prefilled needles, OEM/ODM service
