High Efficiency Zetron HRF-5C Aerosol Generator For Filter Leak Detection Test System Validation

  • High Efficiency Zetron HRF-5C Aerosol Generator For Filter Leak Detection Test System Validation
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number HRF-5C
Minimum Order Quantity 1
Packaging Details Cardboard box
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detecting Gas Aerosol Generator Compressed Air Nitrogen, Argon, Carbon Dioxide Or Helium (50psi))
Generator Type PAO, DOP, Polydisperse Particles Particles Output Range 1,500-65,000cfm(42-1,839.5m3/min)
Dimension 280*390*300mm Weight 14kg
Highlight

high efficiency aerosol generator

,

pao aerosol generator
Leave a Message
Product Description

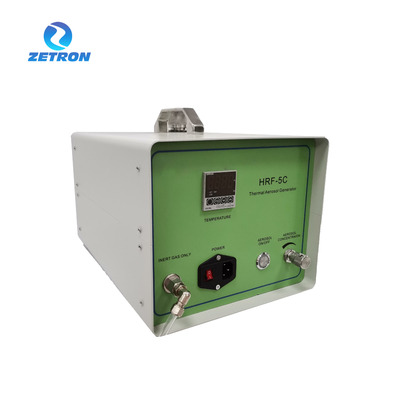

HRF-5C Aerosol Generator Heat-Type

OVERVIEW

HRF-5C type aerosol generator is a portable generator. It is designed according to the principle of generation, heating generation type of aerosol generator.
HRF-5C type can be applied to a broader flow rate of 1500 ~ 65000cfm, can meet the use of high-efficiency filter testing of large flow rates.
The aerosol generator can be equipped with an optional nozzle connector to direct the aerosol particles generated by the aerosol generator upstream of the high-efficiency filter.

TECHNOLOGY PARAMETER



Usable flow rate range
1,500-65,000cfm (42-1,839.5m3/min)
Occurrence concentration
10ug/L: Flow rate 65,000cfm (at approx.1839.5m3/min)

100ug/L: Flow rate 6,500cfm (at approx. 183.95m3/min)
Particle generation
PAO, DOP, polydispersed
Compressed gas (inert)
Nitrogen, Argon, Carbon Dioxide or Helium (50psi))
Generation method
Heating generation
Power supply
AC220～240VAC,50/60HZ
Dimension
280×390×300mm
Weight
Approx. 14kg
