Portable Pharmaceutical Clean Room Dop Aerosol Generator Solvent Heating Generation Type Zetron HRF-5C

  • Portable Pharmaceutical Clean Room Dop Aerosol Generator Solvent Heating Generation Type Zetron HRF-5C
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number HRF-5C
Minimum Order Quantity 1
Packaging Details Cardboard box
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detecting Gas Aerosol Generator-Heat Type Compressed Air Nitrogen, Argon, Carbon Dioxide Or Helium (50psi))
Generator Type PAO, DOP, Polydisperse Particles Particles Output Range 1,500-65,000cfm(42-1,839.5m3/min)
Dimension 280*390*300mm Weight 14kg
Highlight

portable dop aerosol generator

,

pharmaceutical clean room dop aerosol generator
Leave a Message
Product Description

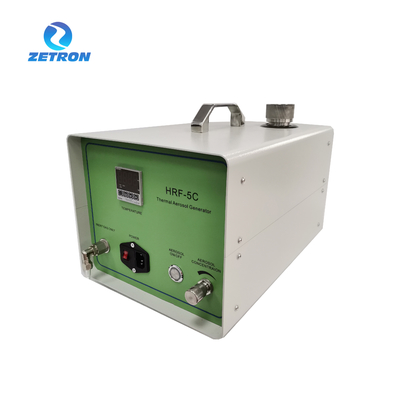

HRF-5C Aerosol Generator

OVERVIEW

HRF-5C heat-type aerosol generator is a portable generator. It is designed according to the principle of generation, heating generation type of aerosol generator.
Aerosol generator is a device to generate smoke, DOP solvent (or PAO solvent) poured into the generator container, under certain pressure heating conditions can produce aerosol smoke, the aerosol smoke will be sent to the upwind side of the high-efficiency filter (DOP liquid heating, the formation of DOP vapor, the vapor condensed into tiny droplets under specific conditions, remove the too large and too small droplets, leaving only 0.3μm (about particles, mist DOP into the air duct).

TECHNOLOGY PARAMETER



Usable flow rate range
1,500-65,000cfm (42-1,839.5m3/min)
Occurrence concentration
10ug/L: Flow rate 65,000cfm (at approx.1839.5m3/min)

100ug/L: Flow rate 6,500cfm (at approx. 183.95m3/min)
Particle generation
PAO, DOP, polydispersed
Compressed gas (inert)
Nitrogen, Argon, Carbon Dioxide or Helium (50psi))
Generation method
Heating generation
Power supply
AC220～240VAC,50/60HZ
Dimension
280×390×300mm
Weight
Approx. 14kg
