PTM600-Bio Zetron 4in1 Biogas Detector CH4 CO2 O2 H2S Gas Composition Repeatable Accuracy Measurement
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Biogas Analyzer | Place Of Origin | Beijing, China |
|---|---|---|---|
| Model Number | PTM600-Bio | Warranty | 12 Months |
| Explosion-proof Gas Detector | Exia II CT6 | Gas Unit | PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. |
| Size | 230*210*120 Mm (L*H*W) | Weight | 2.5(kg) |
| Highlight | 4in1 biogas detector,zetron biogas detector,explosion proof biogas detector |
||
Product Description

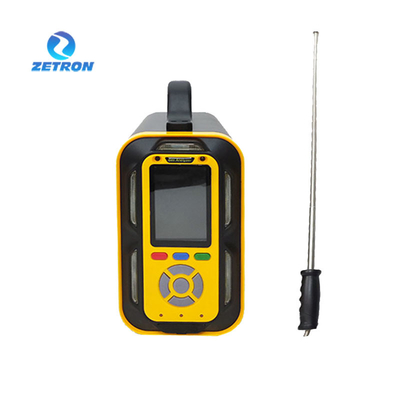

PTM600-Bio Portable Biogas Analyzer
OVERVIEW
PTM600-Bio designed to meet Global Renewable Energy and Carbon Credit digester project requirements, it is the ideal field instrument for anaerobic digester gas analysis. Easy-to-use and portable, the PTM-Bio measures gas composition and flow with repeatable accuracy on farms, food processing plants and waste water treatment facilities.
SPECIFICATION
|
Gases to be detected
|
Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.
Optional configuration: temperature and humidity measurements. |
||||
|
Detection range
|
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
|
||||
|
Allowable error
|
≤±2% F.S (other or higher precision levels can be customized)
|
||||
|
Linearity
|
≤±2%
|
Repeatability
|
≤±2%
|
Uncertainty
|
≤±2%
|
|
Response time
|
T90≤20 seconds
|
Recovery time
|
≤30 seconds
|
||
|
Working environment
|
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
|
||||
|
Sample gas temperature
|
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
|
||||
|
Alarm mode
|
It is possible to set as sound & light alarm, vibration alarm, turning off the alarm.
|
||||
|
Explosion-proof mark
|
Exia II CT6
|
||||
|
Exterior dimensions
|
230×210×120 mm (L×H×W)
|
||||
|
Weight
|
2.5Kg
|
||||
APPLICATION SCENES
Anaerobic Digesters
Farms
Water Recovery Facilities
Breweries and Food Processing
Methane Recovery
Waste Water
