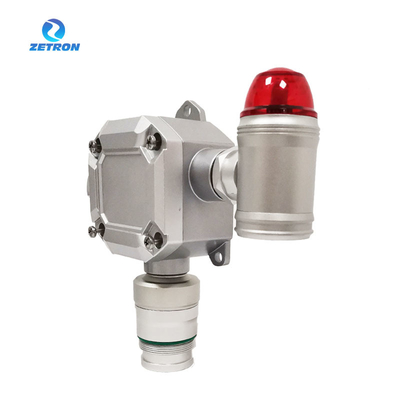

Zetron MIC300-VOC-H Fixed Gas Detector PID Light Ion High Precision VOC

  • Zetron MIC300-VOC-H Fixed Gas Detector PID Light Ion High Precision VOC
  • Zetron MIC300-VOC-H Fixed Gas Detector PID Light Ion High Precision VOC
Place of Origin China
Brand Name Zetron
Certification CE, Atex, RohS, ISO
Model Number MIC300-VOC-H
Minimum Order Quantity 1 piece
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Gas Detector Detection Range 0～1000, 2000, 5000, 10000ppm, 30%Vol, 100%Vol Optional
Explosive Grade Exd II CT6/DIP A20 TA, T6 Protection Level IP66
Material Aluminum Alloy, Surface Anticorrosive Paint Sprayed Warranty 1 Year
Highlight

pid fixed gas detector

,

voc fixed gas detector

,

pid voc gas detector
Leave a Message
Product Description



MIC300-VOC-H Online Toxic and Harmful Gas Detector

OVERVIEW



MIC300 is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space; and gas leakage alarm. The types for detection are more than 500 types. Strong, durable, and explosion-proof shell is suitable for use at various hazardous places and harsh industrial environments, and is widely used in the industries such as petroleum, chemical, metallurgy, refining, gas transmission and distribution, biochemical and pharmaceutical, and so on.
Zetron MIC300-VOC-H Fixed Gas Detector PID Light Ion High Precision VOC 0
Zetron MIC300-VOC-H Fixed Gas Detector PID Light Ion High Precision VOC 1
Zetron MIC300-VOC-H Fixed Gas Detector PID Light Ion High Precision VOC 2

SPECIFICATION



Type
Fixed Gas Detector
Allowable error
≤±3% F.S (other or higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
≤±2%
Response time
T90≤30 seconds
Recovery time
≤30 seconds
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
Power supply reference
24V, 2.1A is possible to drive 40 units of toxic gas detector,
or 15 units of flammable, infrared gas detector.
Working method
Fixed type installation, online detection, diffusion type measurement
Protection level
IP65
Explosion-proof mark
ExdⅡCT6, certificate number: CNEx15.1283
Exterior dimensions
233×205×65mm (L×H×W)
Weight
1.0 Kg
Standard accessories
Manual, qualification certificate, warranty card, outer packaging box





Gases to be detected
Range
Accurancy
Resolution
Response time T90
Ethylene ( C2 H4 )
0-100%LEL
＜±2%(F.S)
0.1%LEL
≤30 seconds
Acetaldehyde
0-10ppm
＜±2%(F.S)
0.01ppm
≤30 seconds
Ethanol ( C2 H6O )
0-100ppm
＜±2%(F.S)
0.01ppm
≤30 seconds
Methanol ( CH4O )
0-100ppm
＜±2%(F.S)
0.01ppm
≤30 seconds
Combustible gas ( EX )
0-100%LEL
＜±2%(F.S)
0.1%LEL
≤10 seconds
Methane ( CH4 )
0-100%Vol
＜±2%(F.S)
0.1%Vol
≤10 seconds
Oxygen gas ( O2 )
0-30%Vol
＜±2%(F.S)
0.01%Vol
≤10 seconds
Nitrogen gas ( N2 )
0-100%Vol
＜±2%(F.S)
0.01%Vol
≤10 seconds
Hydrogen gas ( H2 )
0-40000ppm
＜±2%(F.S)
1ppm
≤30 seconds

Note: Not all gases and ranges are listed, if you need more information, please contact us.
