Zetron Atmospheric Pollutants Online Gas Monitoring System Wall Mounted TH2000 With Multi Protection

  • Zetron Atmospheric Pollutants Online Gas Monitoring System Wall Mounted TH2000 With Multi Protection
Place of Origin China
Brand Name Zetron
Certification CE
Model Number TH2000
Minimum Order Quantity 1 piece
Packaging Details paper carton
Delivery Time 5-8days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gas Online Monitoring System Operating Temperature -40℃ ~ +70℃
Relative Humidity 0 ~ 95%RH Explosion-proof ExdⅡCT6
Installation Method Wall-mounted Warranty 1 Year
Highlight

Atmospheric Pollutants Online Gas Monitoring System

,

Wall Mounted Online Gas Monitoring System

,

Multi Protection Online Gas Monitoring System
You can tick the products you need and communicate with us in the message board.
Product name
Leave a Message
Product Description

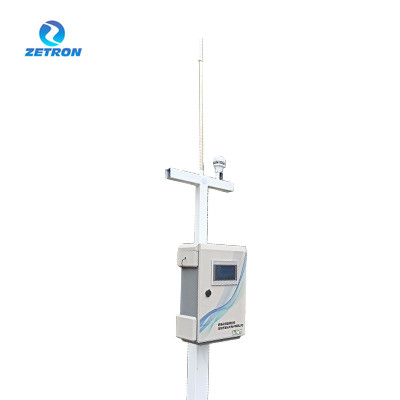

TH2000 Online Gas Monitoring System

OVERVIEW



Gas monitoring system is made of stainless steel, aluminum alloy, high-quality cold plate, aluminum-magnesium zinc plate mixed material, is designed for the open-air outdoor environment and all-weather equipment protection box,  with rain, dust, ventilation fan heat, anti-UV (anti-aging), rust, acid and alkali corrosion, electromagnetic interference (lightning) characteristics, the box adopts a high degree of freedom modular quick-disassembly structure, easy to Quick installation of equipment and later maintenance.



Online monitoring system with built-in gas detector MIC600



MIC600 online composite gas detector is used for 24-hour continuous online monitoring of gas concentration and temperature and humidity measurement, on-site display of concentration, and sound and light alarm for exceeding the standard, remote data transmission. It adopts a 2.5-inch high-definition color screen to display the concentration in real-time and selects the current industry electrochemical, infrared, catalytic combustion, thermal conductivity, PID light ionization principle gas sensors and Swiss high-precision capacitive digital temperature and humidity sensors according to the different detection gases.
The MIC600 can detect gas concentrations in pipelines or restricted spaces, atmospheric environments as well as gas leaks, and can also detect the purity of single gases at high concentrations. Rugged explosion-proof housing and fluorocarbon paint surface treatment process for a variety of hazardous places and strong acid and alkali corrosive environment, resistant to wear and tear, 10 years without fading and paint loss.



PARAMETER



Working mode fixed installation, online detection, diffusion measurement, pipeline type (M45X1.5 male thread), circulation type, pump suction type optional.
Installation method pipeline type, wall-mounted type. The working pressure of pipeline type is ±30% of the atmospheric pressure, beyond the range need to reduce the pressure treatment.
Response time T90 ≤ 20 seconds (TVOC using light ion principle is less than 15 seconds)
Recovery time ≤ 30 seconds
Working environment -40℃～+70℃
Relative humidity ≤10-95%RH (conventional) non-condensing occasions
Operating voltage 12~30V (DC DC, the standard power supply of single device is 24V, 1A or DC switching power supply greater than 1A)
Size 60 * 60 * 1000
Explosion-proof form ExdⅡCT6
Protection level IP66



APPLICATION



All the cases which requires the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing, Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users , Ice Skating & Hockey Arenas,Breweries and so on.
