LCD Zetron PTM600-S-CO wireless co detector for Gas Environmental
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Test Item | CO | Place Of Origin | Beijing, China |
|---|---|---|---|
| Model Number | PTM600-S-CO | Screen | 3.5-inch LCD |
| Work Modes | Diffusion And Pumping | Weight | 300g |
| Highlight | Zetron Wireless Co Detector,LCD Wireless Co Detector |
||
Product Description

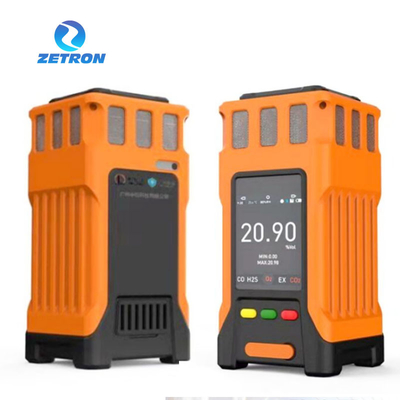

PTM600-S Intelligent Gas Warning Instrument
OVERVIEW
PTM600-S can simultaneously detect toxic and combustible gases, suitable for dangerous or hazardous space, such as tunnels, culverts, storage rooms and other restricted spaces where the air can not be circulated. The system could be easily transport the monitoring and alarms among the monitors or apps, better to know the area situation by sharing gas readings and alarm information and make faster, more informed safety decisions.
Wireless interconnected multifunctional gas environmental monitoring alarms enable individual gas detection and area monitoring, keeping workers aware of their surroundings by sharing gas readings and alarm information between gas monitors. When a gas hazard, worker fall, or panic situation occurs causing the instrument to sound an alarm, all companions in the wireless workgroup area will immediately receive notification of gas hazards and personnel injuries.
SPECIFICATION
|
Detecting gas
|
Carbon monoxide (CO)
|
|
Detection principle
|
Carbon monoxide: imported electrochemical sensors
|
|
Detection range
|
Carbon monoxide: 0~1000PPM
|
|
Resolution
|
CO:1PPM
|
|
Signal output
|
Support 485, 4-20mA, LORA wireless transmission.This project mainly focuses on 4G network transmission (other wireless
transmission functions can be customized, such as: zigbee, 433, WIFI, etc.) |
|
Response time
|
T90≤20seconds
|
|
Working conditions
|
Temperature: -20℃-50℃; Humidity: 0-90%RH (no condensation)
|
|
Explosion-proof grade
|
Exd IICT6
|
|
Working voltage
|
12～30V (DC DC, the standard power supply of single device is 24V, 1A or DC switching power supply more than 1A)
|
|
Protection level
|
IP66 splash and rainproof
|
|
Video monitoring
|
2.2 megapixel, support infrared night vision, customizable gimbal, zoom camera
|
|
Location information
|
Support GPS/BeiDou positioning
|
FEATURES
> Unique shape design, beautiful and elegant, easy to disassemble and maintain.
>Four kinds of compound gas detection at the same time, supporting both diffusion and pumping.
>Support GPS/BeiDou position positioning.
>3.5-inch high-definition LCD display, graphical interface display, friendly human-computer interaction.
>Curve analysis, indicating the trajectory and trend of gas concentration.
>Support SD card storage with large data capacity.
>Support for voice broadcast of alarms and voice broadcast of notifications sent remotely from the platform.
>Support for remote control of the alarm and the issuance of sound and light warnings
>Support for alarm interconnection between the warning relay and the detector, to achieve regional alarm.
>Multiple alarm output modes >Support remote video monitoring to view the condition around the equipment
>Support for wifi, Lora, 4G and other wireless communication methods
>Large battery capacity, long standby time
>Support usb fast charging
>With explosion-proof function Support signal relay function (customized)
APPLICATION SCENES
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
