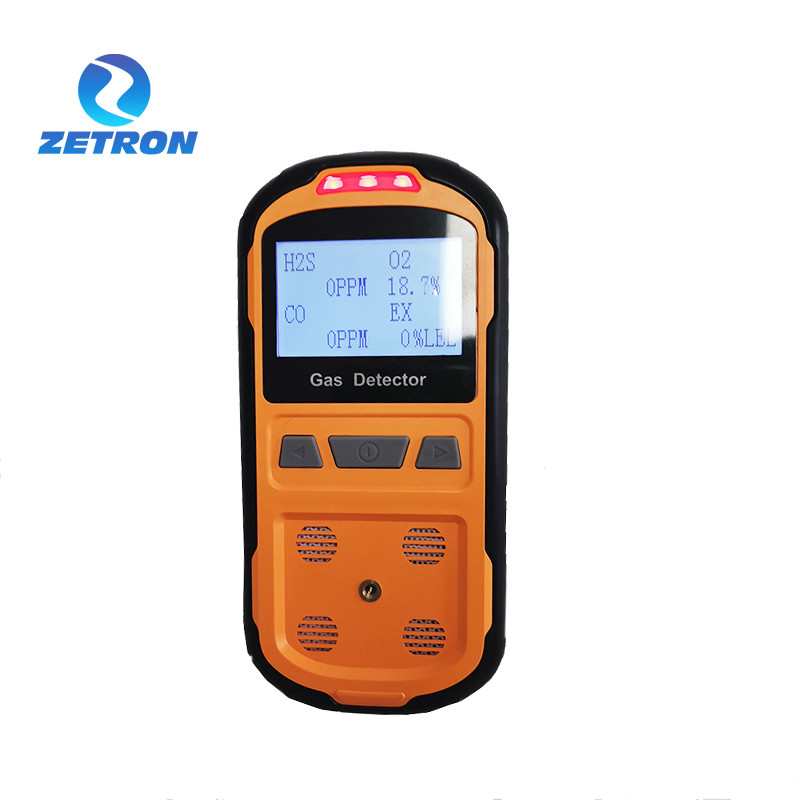

Zetron ABH842 Portable Multi Gas Detector With Integrated Circuit Technology

  • Zetron ABH842 Portable Multi Gas Detector With Integrated Circuit Technology
Place of Origin China
Brand Name Zetron
Certification CE
Model Number ABH842
Minimum Order Quantity 1 set
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Multi-Gas Analyzer Model Number ABH842
Response Time T<30s Precision <5%FS
Size 65*35*140mm Weight 210g
Highlight

Zetron Portable Multi Gas Detector

,

Integrated Circuit Portable Multi Gas Detector
Leave a Message
Product Description

ABH842 Multi-Gas Detector



OVERVIEW



Portable voice type multi-gas detector is a safety device that can continuously detect the concentration of leaking gas. It adopts advanced integrated circuit technology, embedded computer control, and high-quality imported gas sensors, with excellent sensitivity and repeatability. It uses a dot matrix LCD display to support the Chinese-English interface and Chinese-English voice prompt so that users can quickly understand the product and use and maintain it simple. High-strength engineering plastics, good seismic resistance, high strength, high-grade atmospheric appearance and dust-proof, waterproof and explosion-proof function, etc.



Zetron ABH842 Portable Multi Gas Detector With Integrated Circuit Technology 0

PARAMETER



Gas type Range L.ow alarm High Resolutio
EX (0-100)%LEL 20%LEL 50%LEL 1%LEL
H2S (0-100)ppm 10ppm 35ppm lppm
CO (0-1000)ppm 50ppm 150ppm lppm
O2 (0-30)%vol 19.5%vol 23.5%vol 0.1%vol
Other gas types please contact us



Precision <土5%FS
Response time T<30s
Display  LCD display real-time data and station of the system
Alarm Audible-visual-vibration alarm with voice alarm
Work -20℃ -50 ℃ ; <95%RH non-condensing
Power supply DC3.7V (Rechargeable lithium battery1800mAh)
Explosion-Proof grade: ExibIIBT3Gb
Battery charge time  4h-6h
Working time  Over 10 hours
Sensor life 2 years
Protection grad IP65
Dimensions  65*35*140mm
Weight 210g



APPLICATION



The detector is widely used in the petroleum, chemical industry, environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection, Archaeology, and other industries and places that need safety monitoring for toxicity and harmfulness, and explosion prevention. The detector can effectively predict the concentration of dangerous gases and alarm to ensure the safety of workers and production equipment.



Zetron ABH842 Portable Multi Gas Detector With Integrated Circuit Technology 1

Tag: Multi-Gas Detector, Gas monitor, Handheld gas analyzer, Toxic and harmful gas detector, Gas Leaking Detector, Voice Type, Portable, OEM/ODM service
