MS600 Series Portable Composite Compound Gas Monitor Detector For Confined Space
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Portable Gas Analyzer | Allowable Error | ≤±1% F.S (other Precision Levels Can Be Customized) |
|---|---|---|---|
| Power Supply | 3.6VDC, 6000mA High Capacity Rechargeable Polymer Battery | Display Mode | 2.5-inch |
| Size | 180*78*33mm (L*W*H) | Weight | 0.35(kg) |
| Highlight | Portable Composite compound gas monitor,compound gas monitor For Confined Space |
||
Product Description

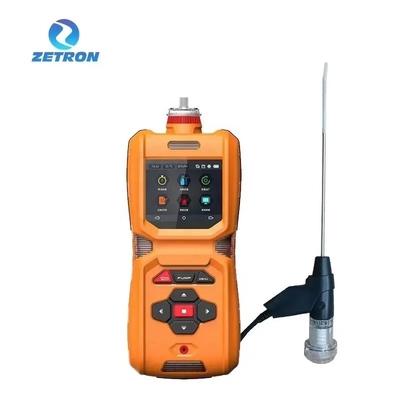

MS600-VOC Portable Multiple Gas Detector
OVERVIEW
MS600 Series Portable composite gas detector can be used in mobile rapid and accurate detection of a variety of gas concentrations and measurement of environmental temperature and humidity.
FEATURES
*Built-in humidity dust filter, preliminary treatment of the detection gas, so as to protect the equipment.
*Multiple alarm modes, and multi-directional and three-dimensional indication alarm states.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
*Zero-point automatic tracking; long-term use will not be affected by the zero drift.
*Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
*Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of the next concentration calibration.
*Data recovery function.
*Detection principles include electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on. Depending on the type of gas, range, field environment, and user demand.
*Mis-operation recognition function: automatic recognition and prevention of the concentration calibration misoperation, which is possible to avoid the poor performance that may be caused by human factors.
PARAMETER
|
Gases to be detected
|
VOC and so on.Optional configuration: temperature and humidity measurements.
|
||||
|
Detection range
|
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
|
||||
|
Allowable error
|
≤±1% F.S (other precision levels can be customized)
|
||||
|
Response time
|
T90≤20 seconds
|
Recovery time
|
≤30 seconds
|
||
|
Sample gas temperature
|
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
|
||||
|
Power supply
|
3.6VDC, 6000mA high capacity rechargeable polymer battery
|
||||
|
Display mode
|
2.5-inch high-definition color screen
|
||||
|
Detection mode
|
Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml/min,
the three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass |
||||
|
Communication interface
|
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
|
||||
|
Data storage
|
Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
|
||||
|
Protection level
|
IP67
|
||||
|
Explosion-proof mark
|
Exia II CT6
|
||||
|
Exterior dimensions
|
180×78×33mm (L×W×H)
|
||||
|
Weight
|
350g
|
||||
|
Standard accessories
|
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter
|
||||
APPLICATION
The detector is widely used in the petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, and explosion prevention.
