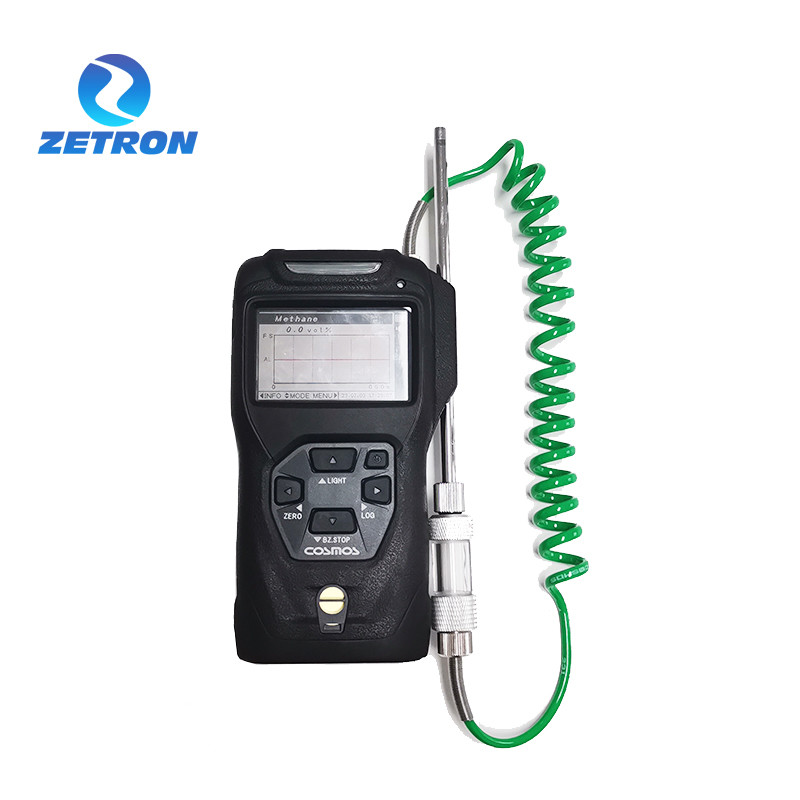

CE Zetron XP-3318II Combustible Gas Leakage Detector With Probe

  • CE Zetron XP-3318II Combustible Gas Leakage Detector With Probe
Place of Origin China
Brand Name Zetron
Certification CE
Model Number XP-3318II
Minimum Order Quantity 1 set
Price USD 100/set / 900/set
Packaging Details 160*70*28mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Multi Gas Detector Gas VOC
Response Time <30s Protection Level IP65
Exterior Dimensions 210*170*85mm (L*H*W) Weight 1.8(kg)
Highlight

CE combustible gas leakage detector

,

combustible gas leakage detector With Probe
Leave a Message
Product Description

XP-3318II Multi Gas Detector

For daily checks and safety in plants, tanks, manholes, and tunnel construction.

FEATURE



* Convert to 32 types gas concentration
* Robust design Passed 7m drop test Waterproof and dustproof, IP67
* Wide range models Up to five combustible gases can be set as target gas (option) Enable to measure in "%LEL" and "ppm'Only for XP-3360lw and XP-3368I-WV

* Selectable power supply alkaline AA batteries / rechargeable nickel metal hydride AA batteries

* Timer and stopwatch function Only for XP-3318II and XP-3368II-W



PARAMETER



Sampling Method
Extractive
Alarm Method
Gas Alarm
Beeping with flashing red light and AL icon on the LCD
Device Error
Beeping with flashing yellow light and error message on the LCD
Power Source
･Non-rechargeable alkaline AA battery x4: Toshiba LR6, Panasonic LR6X, Duracell MN1500, Energizer E91 or Varta 4106
･Rechargeable nickel metal hydride AA battery x4: New Cosmos HR-3UTG
Operating Temperature/Humidity
-20 to 50℃ 95%RH. No condensation
Compliance*1
ATEX: Ex II 1G Ex ia da IIC T4 Ga*1
IECEx: Ex ia da IIC T4 Ga*1
CE (ATEX, RoHS and RE directives)
Ingress Protection
IP67
Main Features
Self-diagnosis (sensor error), Zero adjustment, Battery level indication, Flashlight, Peak-hold, LCD backlight, Audio alarm muting
during gas alarm, Time indication, Alarm test, Alarm volume change, Audio muting
Dimensions
W91 x H164 x D44mm
Mass
Approx. 460g (including batteries)
Accessaries
Gas sampling tube(1m), Shoulder strap, Drain filter, Filter element, Alkaline AA batteries(or Rechargeable nickel metal hydride AA
batteries) x 4, Screen protector film x 3











Model
XP-3368II-W
XP-3368II
XP-3318II
Target Gas
Combustible gas
/solvent vapor
Oxygen
Combustible gas
/solvent vapor
Oxygen
Combustible gas
/solvent vapor
Oxygen
Detection Principle
Catalytic
Galvanic cell
Catalytic
Galvanic cell
Catalytic
Galvanic cell
Mesuring Range
(Reference Indication)
0.0–100.0%LEL (100.1–110.0%LEL)
Enable to display in ppm.
0–25vol%
(25.1–50.0vol%)
0–5000ppm or
0–10000ppm
(5001–5500ppm or 10001–11000ppm)
0–25vol%
(25.1–50.0vol%)
0–100%LEL
(100.1–110.0%LEL)
0–25vol%
(25.1–50.0vol%)
Accuracy*2
≤ 1000ppm : ±100ppm
1001ppmOther than above: ±5%F.S.
±0.3vol%
≤10%F.S. : ±2.5%F.S.
>10%F.S. : ±5%F.S.
±0.3vol%
±5%F.S.
±0.3vol%
Resolution
0.1%LEL or 1ppm
0.1vol%
1ppm
0.1vol%
0.1%LEL
0.1vol%
Alarm Set Value
20%LEL
18vol%
250ppm or 500ppm
18vol%
20%LEL
18vol%
Response Time
T90: 30 seconds
ー
T90 : 30 seconds
ー
T90 : 30 seconds
ー
Continuous Operation Time*3
Approx. 15 hours
