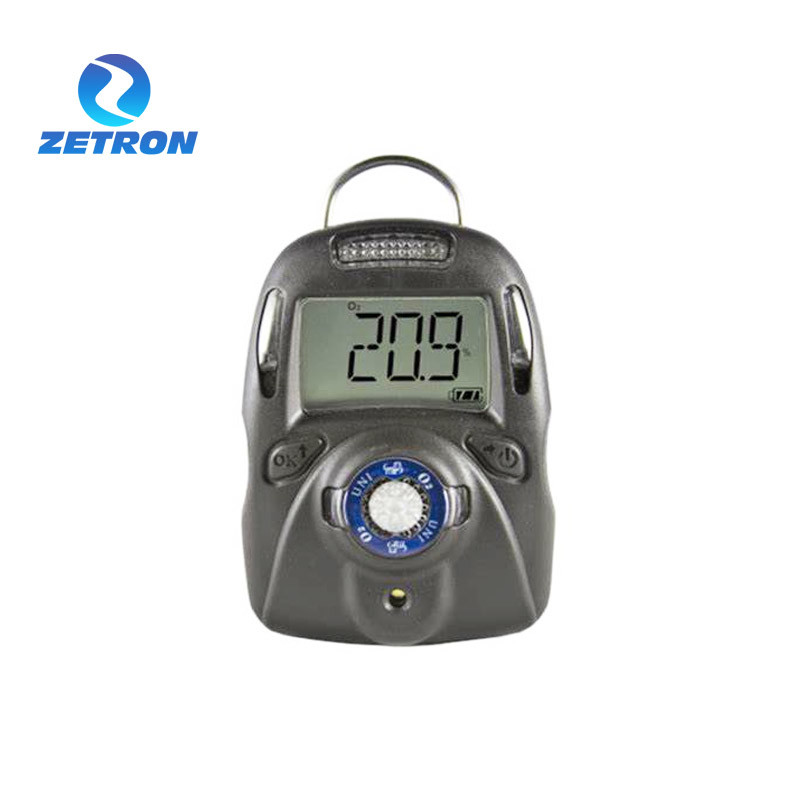

Zetron UNI MP100 Oxygen Gas Analyzer Password Protection Function

  • Zetron UNI MP100 Oxygen Gas Analyzer Password Protection Function
  • Zetron UNI MP100 Oxygen Gas Analyzer Password Protection Function
Place of Origin china
Brand Name Zetron
Model Number UNI MP100
Minimum Order Quantity 1 pcs
Price USD 120/set- 150/set
Packaging Details paper case
Delivery Time 14 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MPower UNI MP100 Single Gas Detectors Sub-Category Single-Gas
Ingress Protection IP68 Humidity Range 5%-95%
Size 3.46 X 2.44 X 1.3 In/ (88 X 62 X 33 Mm) Weight 4.4 Oz (125 G)
Highlight

password protection function oxygen gas analyzer

,

IP68 oxygen gas analyzer

,

password protection function o2 gas analyzer
Leave a Message
Product Description

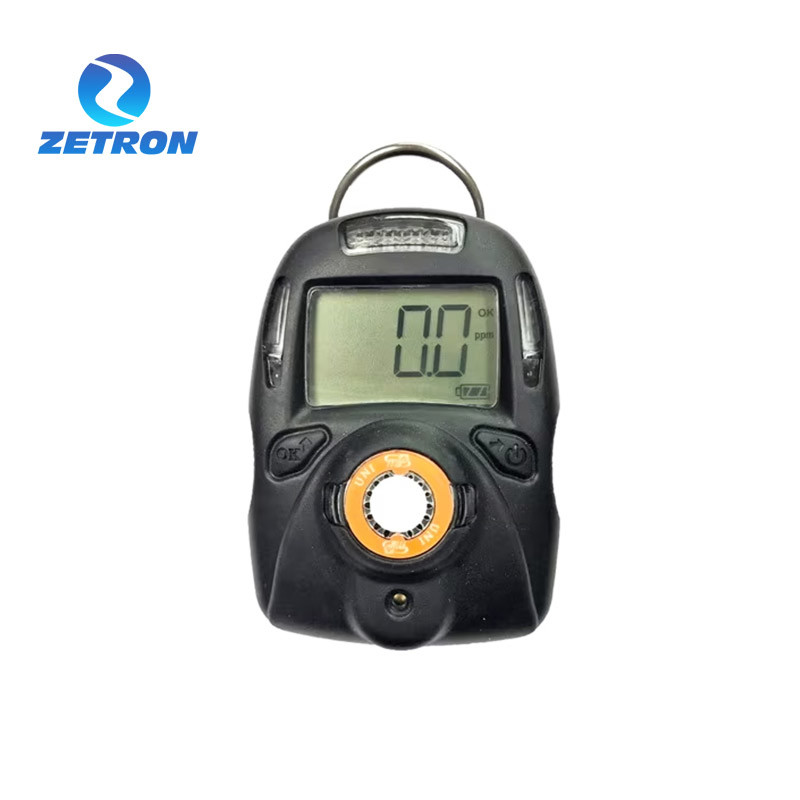

mPower UNI MP100 Single Gas Detectors



OVERVIEW

The UNI MP100 offers a simple portable solution for the widest array of toxic gas and oxygen (O2) applications on the market. In addition to typical sensors such as carbon monoxide (CO), hydrogen sulfide (H2S), nitrogen (NOx), ammonia (NH3) and sulfur dioxide (SO2), we offer less-common sensors including hydrogen chloride, hydrogen fluoride, phosphine, ozone, ethylene oxide, methyl mercaptan, arsine and phosgene. The monitors have a large LCD providing maximum readability in the field and are made with six bright red LEDs allowing for a quick alarm notification. Constructed of strong and durable material, the UNI is designed to be comfortable yet drop-resistant. The UNI series can easily be bump tested and calibrated either manually or using the convenient Single Docking Box, or 4-Bay CaliCase.

FEATURES
● UL/cUL: Class I, Div 1, Group A, B, C, D; Class II, Div 1, Group E, F, G; Class III, Div 1
● Temperature rating T4, -20°C ≤ Tamb ≤ +50°C
● Event logger
● IP rating: IP-67
● Large LCD, 30% larger than most
● Password protection
● Adjustable Low, High, TWA & STEL alarms
● Six bright red flashing LEDs
● Sensors for over 20 chemicals in 24 concentration ranges
● Two-point field calibration
● 3-year typical operation
APPLICATION SCENES



The detector is widely used in petroleum, chemical industry,environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection, Archaeology and other industries and places that need safety monitoring for toxicity and harmfulness, explosion prevention.



PRODUCT PARAMENTERS



Size
3.46 x 2.44 x 1.3 in
(88 x 62 x 33 mm)
Weight
4.4 oz (125 g)
Temperature
-4°F to 122°F (-20°C to 50°C)
Humidity
5 to 95% relative humidity (non-condensing)
Alarm Type
High alarm, Low alarm, STEL alarm, TWA alarm, adjustable.
Over-range alarm, Battery low alarm
Alarm Signal
95 dB @ 30 cm audible
Bright red LED
Built in vibrator
Calibration
2 point calibration, zero and span, power on zero (user-selectable)
Event log
Up to 50 alarm events
Response time (t90)
15 seconds (CO/H2S/O2), Others vary, see individual sensor specifications in TA Note 4
IP rating
IP-67
EMI/RFI
Compliant with EMC 2004/108/EC
Safety certifications
IECEx Ex ia IIC T4 Ga
ATEX CE Ex II 1G
Ex ia IIC T4 Ga
UL/cUL
Class I, Div 1, Group A, B, C, D
Class II, Div 1, Group E, F, G
Class III, Div 1
T4, -20°C ≤ Tamb ≤ +50°C
Battery
Replaceable AA size Lithium battery, 3 years typical operation
Sensor
CO/H2S expected operating life 5 years or longer, others 1 to 2 years as per warranty
Warranty
2 years on O2, CO, H2S, SO2, HCN, NO, NO2, and PH3 units including sensor; 1 year on others



Gas Measuring Range /
Resolution (ppm)		 Instrument
P/N
CO 1000/1 M001-0023-000
H2S 100.0/0.1
1000/1		 M001-0054-000
M001-0060-000
O2 25.0/0.1% M001-0032-000
O2 Lead-free 30.0/0.1% M001-0095-000
O2 Inverted Alarm for Inert 25.0/0.1% M001-0093-000
H2 2000/1 M001-0019-000
NH3 50/1 M001-0006-000
NH3 500/1 M001-0090-000
Cl2 50.0/0.1 M001-0004-000
ClO2 1.00/0.01 M001-0072-000
HCN 100/0.1 M001-0005-000
NO 250/1 M001-0015-000
NO2 20.0/0.1 M001-0011-000
PH3 20.0/0.01 M001-0016-000
SO2 20.0/0.1 M001-0007-000
SO2 100.0/0.1 M001-0091-000
Ethylene Oxide (ETO) 200.0/0.1 M001-0069-000
O3 5.00/0.01 M001-0009-000
HF 20.0/0.1 M001-0014-000
HCl 15.0/0.1 M001-0008-000
CH3SH 10.0/0.1 M001-0077-000
Tetrahydrothiophene (THT) 40.0/0.1 M001-0085-000
Arsine (AsH3) 1.0/0.01 M001-0092-000
Phosgene (COCl2) 1.0/0.01 M001-0020-000
Zetron UNI MP100 Oxygen Gas Analyzer Password Protection Function 0Zetron UNI MP100 Oxygen Gas Analyzer Password Protection Function 1
