R310 Online Air Particle Counter With 6 Particle Size Channels 0.3 0.5 1.0 3.0 5.0um 10um

  • R310 Online Air Particle Counter With 6 Particle Size Channels 0.3 0.5 1.0 3.0 5.0um 10um
  • R310 Online Air Particle Counter With 6 Particle Size Channels 0.3 0.5 1.0 3.0 5.0um 10um
  • R310 Online Air Particle Counter With 6 Particle Size Channels 0.3 0.5 1.0 3.0 5.0um 10um
Place of Origin China
Brand Name Zetron
Certification ISO21501-4, CE
Model Number R310
Minimum Order Quantity 1
Packaging Details alloy case
Delivery Time 5-7 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Clean Room Particle Counter Flow Rate 28.3L/min
Explosion-proof Laser Diode Vacuum Pump Separate Pump
Size 120 * 65 * 132mm Weight 0.6kg
Detecting Gas Airborne Particle Counter Calibration Particles CE, EUGMP, GMP
Power 220V AC/50Hz Over Lapping Error 5 %,2,000,000 Grain/c.f.
Test Accuracy ±0.1 M/s Communication Mode RS485
Delay Time 0-99sec Testing Duration 2-8min
Sampling Time 1min~15min(15 Levels) Measure Range 0.001mg/L ～ 1mg/L（1 ～ 1000ppb）
Counting Accuracy <±5% Alarm Visual/ Audible
Concentration Limits 35,000/L @10% Count Loss Net Weight 2 Kg
Record Data Storage 3,000
Highlight

10um Air Particle Counter

,

R310 Air Particle Counter
Leave a Message
Product Description

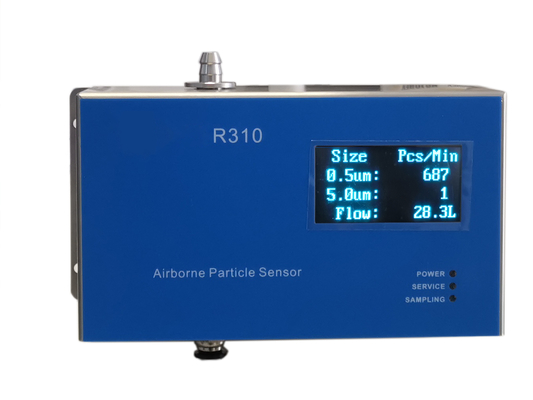

R310  6 particle size channels online particle counter
OVERVIEW



Clean Environment Monitoring System is an advanced, reliable, and user-friendly monitoring software suite that features a truly distributed architecture.
High availability databases and hot standby system fail-over functionality assure (multiple manufacturers supported), temperature/humidity, differential pressures compliance, and peace of mind.
Local Display, real-time monitoring of the clean environment cleanliness, differential pressure, temperature, humidity and 24x7 continuous monitoring.
R310 remote particle counter has local Display, real-time monitoring of the clean environment cleanliness, differential pressure, temperature, humidity and 24x7 continuous monitoring the Monitoring software has two parts: Server and the Client-Side.



FEATURES & BENEFITS



● Local Display, real-time monitoring of the clean environment cleanliness, differential pressure, temperature, humidity and 24×7 continuous monitoring
●  Monitoring software, including two parts: Server and the Client-Side
(1)The server software monitor the sensor and customer; data storage
(2) The client software can remotely access through net and refer the data from server.
●  Software can reviews historical data of any period at any position , and the data can be derived into the form of EXCEL file.
●  It can set start-up time and stop time for each sensor.
●  Automatically judges clean level according to the requirement of GMP.
●  On-site alarm and Sms alarm functions, users can freely set overrun alarm level and forecasting warning level.
●  Ethernet communication, easy to extend and low cost



SPECIFICATION



Model
R200 (2.83L/min)
R210 (2.83L/min)
R310 (28.3L/min)
R310P
(28.3L/min)
Channel sizes
Two Channels: 0.5μm,5.0μm
Three Channels: 0.3μm,0.5μm,5.0μm
Four Channels: 0.3μm,0.5μm,1.0μm,5.0μm
Six Channels: 0.3μm,0.5μm,1.0μm,2.0μm,3.0μm,5.0μm(Customizable)
Display
X
Customizable
2.4 inch OLED
Display
2.4 inch OLED
Output
RS485(Modbus)
RS485(Modbus) or TCPIP(modbus)
(TCPIP has no extended output)
Power Supply
12-24V
12-24V(RS485(Modbus))
12-24V,48V Standard POE(TCPIP(Modbus))
Pump
External pump
Built-in pump(R210)
External pump(R310)
Built-in pump
Weight & Size
0.2-0.3Kg
106.5×76×49(mm)
0.9Kg
135×120×60(mm)
2.6-2.8Kg
217×250×138(mm)

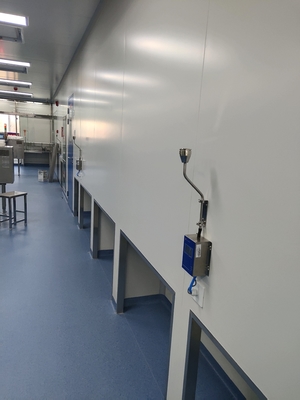

R310 Online Air Particle Counter With 6 Particle Size Channels 0.3 0.5 1.0 3.0 5.0um 10um 0

R310 Online Air Particle Counter With 6 Particle Size Channels 0.3 0.5 1.0 3.0 5.0um 10um 1

APPLICATION



Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size, weight, and sleek handle, you can easily utilize this unit.

These units provide immediate results that allow you to proactively monitor your environment.
It's widely used in Automotive Manufacturing;  Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing; Electronic Industry (semiconductor factory, precision machinery production and processing, etc); Food Hygiene Industry (dairy products, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.





R310 Online Air Particle Counter With 6 Particle Size Channels 0.3 0.5 1.0 3.0 5.0um 10um 2
