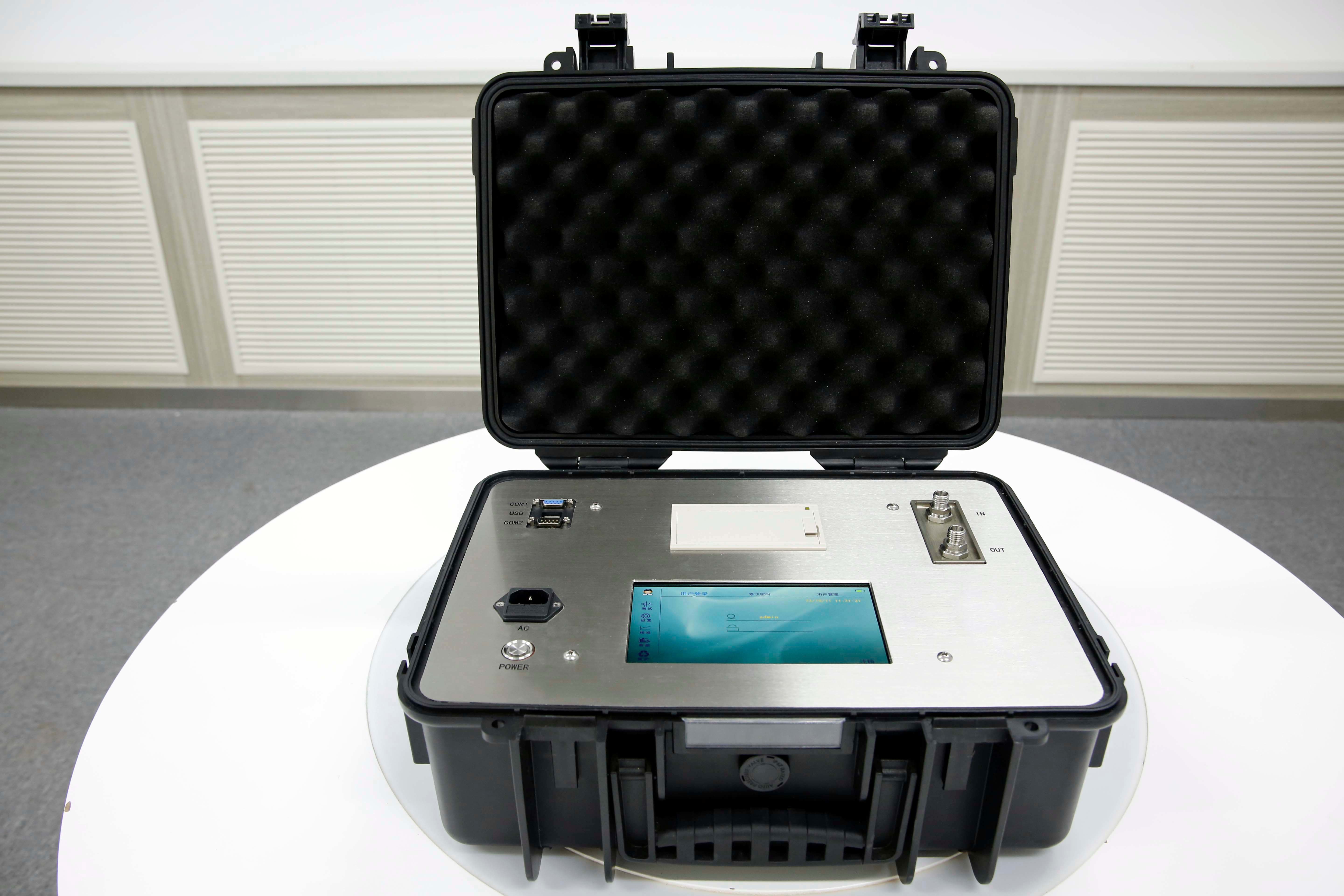

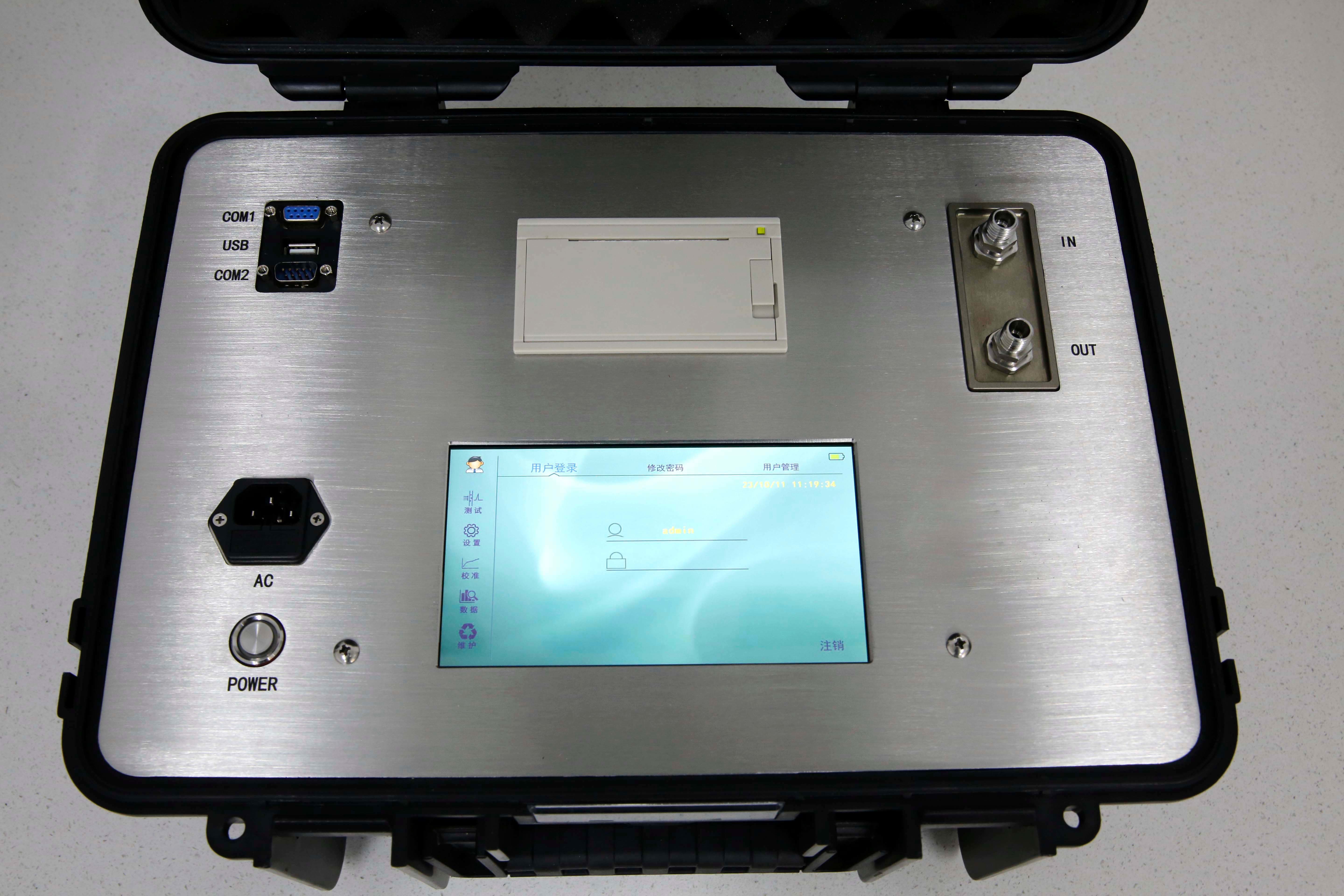

Zetron OPC-P6 Portable Hydraulic Oil Particle Counter

  • Zetron OPC-P6 Portable Hydraulic Oil Particle Counter
  • Zetron OPC-P6 Portable Hydraulic Oil Particle Counter
Place of Origin China
Brand Name Zetron
Model Number OPC-P6
Minimum Order Quantity 1 pcs
Packaging Details Stainless steel 304 suitcase
Delivery Time 14 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name OPC-P6 Oil Particle Counter Light Source Semiconductor Laser
Power Supply 110~245V AC, 50Hz, 70W Overall Dimension 420mm*326mm*182mm
Instrument Weight 9kg
Highlight

Portable Hydraulic Oil Particle Counter

,

OPC-P6 Hydraulic Oil Particle Counter

,

Zetron Hydraulic Oil Particle Counter
Leave a Message
Product Description

OPC-P6 Portable Oil Particle Counter



OVERVIEW


OPC-P6 Portable Oil Particle Counter adopts Laser Extinction Technology, is designed to measure the particles' size and quantity in oil liquid. It is Suitable for tests of pollution degree of solid particles in hydraulic oil, lubricating oil, fire resistant oil, insulating oil, turbine oil, organic liquid and polymer solution, etc. So our instrument can be used in aviation, spaceflight, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.4.1 Power Choice: External power or Battery.


FEATURES

  1. The light blocking (shading) test principle specified by the International Hydraulic Standards Committee
  2. High-precision laser sensor, wide test range, stable performance, low noise, high resolution
  3. High-precision bidirectional plunger pump sampling method, adjustable injection speed, high sampling volume accuracy
  4. The pipeline is made of 316L and PTFE materials, which are corrosion-resistant and can meet the detection requirements of various organic solvents and oils.
  5. For laboratory or on-site measurement, optional pressure reducing device for online high-pressure measurement
  6. Can be connected to an external pressure chamber to form positive/negative pressure, enabling detection of high viscosity samples and negative pressure degassing of samples
  7. A variety of sampling containers such as standard sampling bottles and sampling cups can be used, or they can be directly connected to the hydraulic system for online testing to meet the testing requirements of different industries
  8. Built-in multiple calibration curves, compatible with all commonly used domestic and foreign standards for calibration
  9. Automatic calibration, manual calibration and half-count calibration are available
  10. Built-in GJB-420A, GJB-420B, NAS1638, GB/T14039, ISO4406, SAE4059cpc, SAE4059F, SAE749D, Г OCT17216 , QC/T29104, JB/T9737, DLT432, HH005-2018 and more than ten commonly used standards. One test can give the data results under all built-in standards
  11. Supports custom standard testing and can set up 64 detection channels at the same time according to customer needs
  12. 1000 particle size channels can be set to facilitate particle size analysis
  13. Built-in data analysis system, which can automatically determine the sample grade according to the standard, and has the function of automatic data processing and printing
  14. 7-inch color touch screen operation, Chinese and English input, free switching of language interface, with preset, input, modification, storage, upload functions, convenient and fast operation
  15. You can set up multiple user login accounts at will, add new users, set permissions, and delete old users.
  16. Optional tablet computer control, win10 operating system, can edit personalized signature for operators
  17. With RS232 interface, it can be connected to a computer or laboratory platform for data processing, and can also use USB for data storage
  18. Built-in lithium battery, suitable for field operations, can be used without external power supply
  19. Embedded design , high-strength shell, easy to carry, suitable for all kinds of engineering machinery
APPLICATION SCENES


OPC-P6 can be widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.

PRODUCT PARAMETERS

​

​​
Light source semiconductor laser
Particle size range 0.8-600μm ( calibrated according to ACFTD calibration 1~100μm or ISO MTD calibration 4~70μm(c) )
Detection channels 64, particle size can be set arbitrarily
Sampling volume 0.2-1000ml
Sampling accuracy better than ±1%
Sampling speed 5-80mL/min
Cleaning speed 5-80mL/min
Cleaning volume can be set between 0ml and 90ml
Counting accuracy error less than ±5%
Resolution ≤10%
Repeatability RSD<2%
Limit coincidence error 12000-40000 particles/mL
Temperature acquisition (optional) -40~100ºC Accuracy ±0.5ºC
Moisture (optional) Water activity collection
1~100%RH; Accuracy ±1%RH
Absolute water content 1~360ppm; Accuracy ±10ppm
Viscosity (optional) 0.5~50 0 cSt Accuracy ±2%
Offline detection viscosity ≤100cSt (optional pressure bottle sampler with maximum viscosity up to 400cSt)
Pressure range low pressure 0-0.6MPa, high pressure up to 42MPa (optional pressure reducing valve)
Online detection interval arbitrarily set
Instrument screen size 7 inches
Tablet size 10 inches (optional)
Tablet computer system Windows 10 Professional Edition system TYPE-C to DB9 data cable connected to the instrument serial port
Flash 64GB
RAM no less than 4GB DDR3L
Test sample temperature 0ºC~80ºC
Working temperature -20ºC~60ºC
Storage temperature -30ºC~80ºC
Power supply AC100-240V, 50/60Hz
Battery capacity 5200mAh
Battery operating time 6-8 hours
Dimensions 420 *326 * 182mm
Weight 9 kg
​ ​

​


 Zetron OPC-P6 Portable Hydraulic Oil Particle Counter 8Zetron OPC-P6 Portable Hydraulic Oil Particle Counter 8
