Zetron OPC-P50 Portable Oil Particle Counter Small Size

  • Zetron OPC-P50 Portable Oil Particle Counter Small Size
  • Zetron OPC-P50 Portable Oil Particle Counter Small Size
  • Zetron OPC-P50 Portable Oil Particle Counter Small Size
  • Zetron OPC-P50 Portable Oil Particle Counter Small Size
Place of Origin China
Brand Name Zetron
Model Number OPC-P50
Minimum Order Quantity 1 pcs
Packaging Details Stainless steel 304 suitcase
Delivery Time 14 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name OPC-P50 Oil Particle Counter Light Source Semiconductor Laser
Power Supply 110~245V AC, 50Hz, 70W Overall Dimension 365×295×170mm
Instrument Weight 9kg
Highlight

Small Size Portable Oil Particle Counter

,

OPC-P50 Portable Oil Particle Counter

,

Zetron Portable Oil Particle Counter
Leave a Message
Product Description

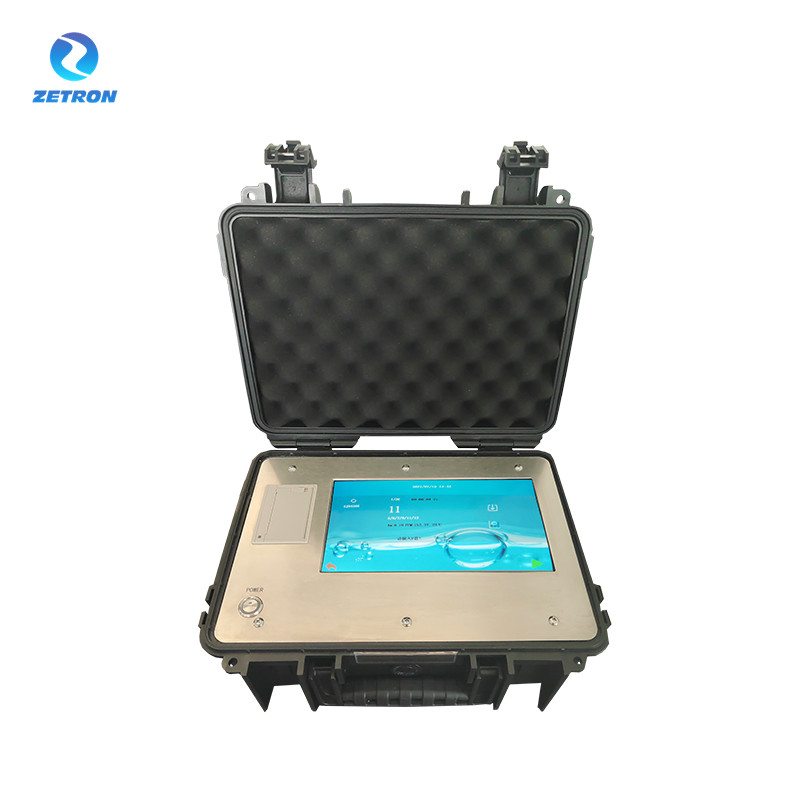

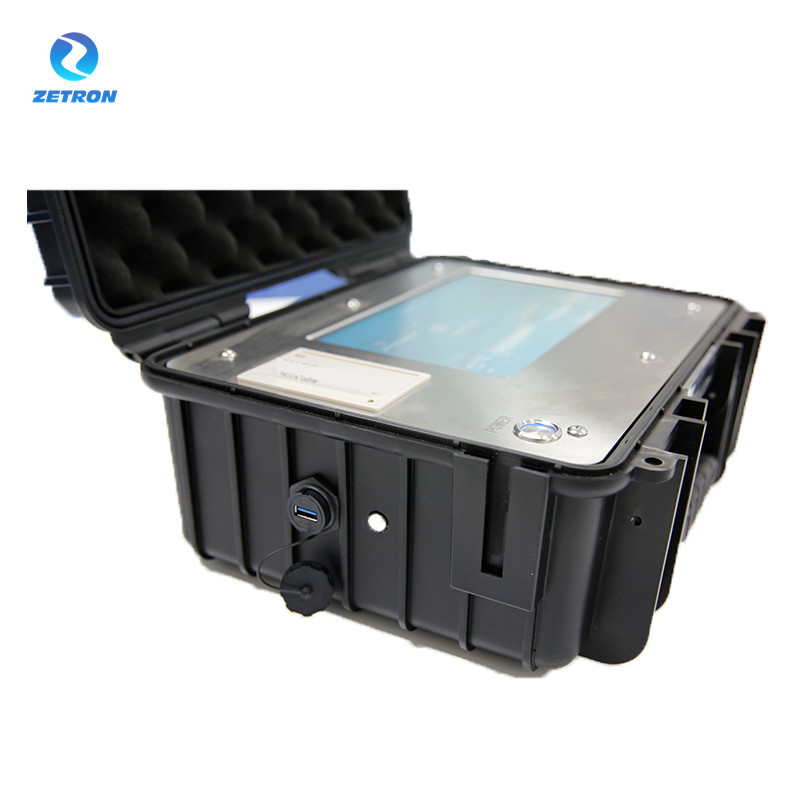

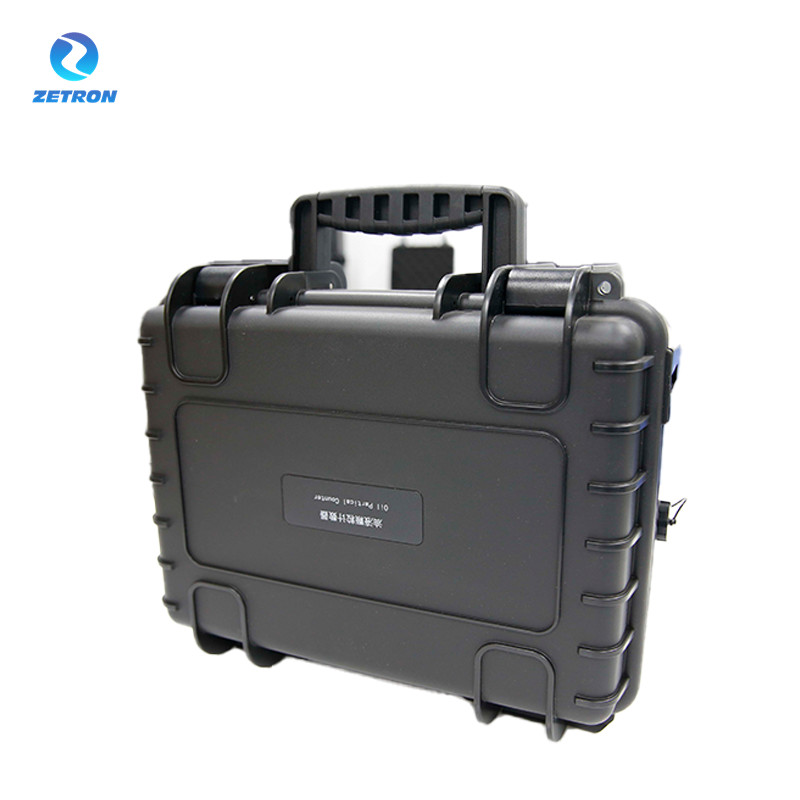

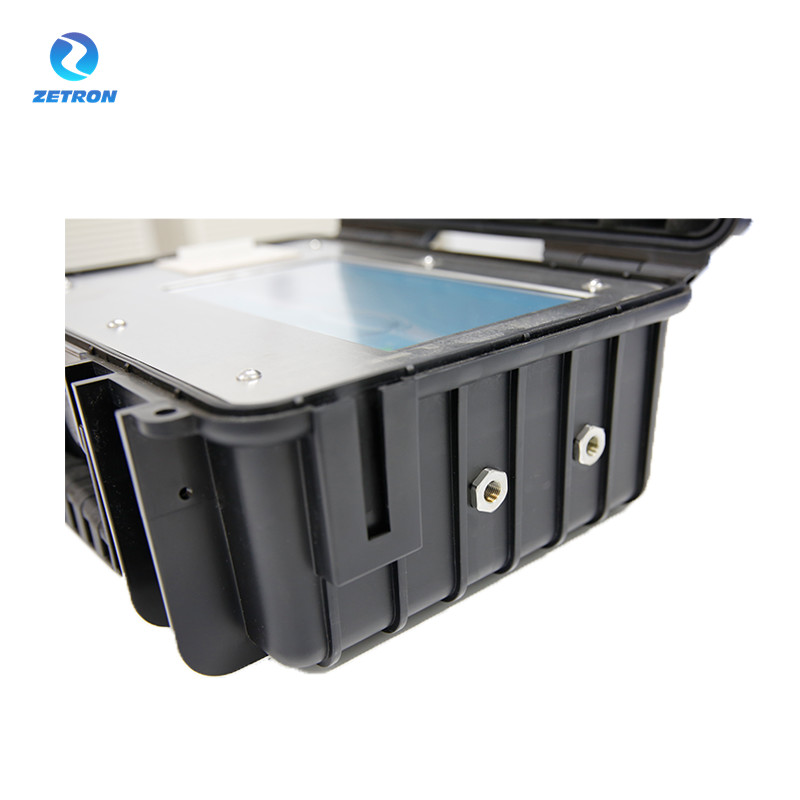

OPC-P50 Portable Oil Particle Counter



OVERVIEW


OPC-P50 Portable Oil Particle Counter adopts Laser Extinction Technology, is designed to measure the particles' size and quantity in oil liquid. It is Suitable for tests of pollution degree of solid particles in hydraulic oil, lubricating oil, fire resistant oil, insulating oil, turbine oil, organic liquid and polymer solution, etc. So our instrument can be used in aviation, spaceflight, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.4.1 Power Choice: External power or Battery.


FEATURES

  1. ​ Adopting the principle of light blocking (shading) method and using high-precision laser sensor, it has small size, high precision and stable performance.
  1. Suitable for laboratory or on-site testing, it can also be equipped with a pressure reducing device for online high-pressure measurement and real-time monitoring of particle contamination in the oil system
  2. Can be connected to an external pressure chamber to form positive/negative pressure, enabling detection and sample degassing of high viscosity samples
  3. Built-in data analysis system, which can display the real data of particle size in each channel and automatically determine the sample grade
  4. The pipeline is made of 316L and PTFE materials to meet the detection of various organic solvents and oils.
  5. It has volume flushing and time flushing modes, which is convenient for users to use and maintain the equipment
  6. Built-in ISO4406, NAS1638, SAE4059 (integral and differential), GJB420A, GJB420B, Г OCT17216 , GB/T14039 and other particle pollution level standards
  7. Built-in calibration function, can be calibrated according to GB / T21540 , ISO4402, GB / T 18854 and other standards
  8. Built-in data analysis system, which can automatically determine the sample grade according to the standard, and has the function of automatic data processing and printing
  9. Built-in water sensor and temperature sensor
  10. Chinese and English bilingual, one-touch switching, with printing and storage functions, 1 0.2 -inch large screen, easy and fast operation
  11. Large storage capacity, can be stored in the instrument or external storage device
  12. Embedded design , high-strength shell, easy to carry, suitable for all kinds of engineering machinery




OPC-P50 can be widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.

PRODUCT PARAMETERS

​

​​​
Light source semiconductor laser
Offline detection speed 5-60mL/min
Offline sample viscosity ≤100cSt (optional pressure chamber for high viscosity)
Online detection pressure 0.1 -0.6Mpa (optional pressure reducing device with maximum pressure up to 42Mpa)
Particle size range 1-500μm
Interface USB interface, power interface
Data storage Provides 1,000 sets of data storage space and supports USB storage
Sensitivity 0.8μm or 4μm (c)
Limit coincidence error 40,000 particles/ml
Counting volume 1-999 ml
Counting accuracy error less than ±10%
Protection level IP 67
Test time interval 1 second - 24 hours
Detection sample temperature 0-80ºC
Water activity reference value 0-1aw (±0.05aw)
Water content 0-360ppm (±10%)
Working temperature -20-60ºC
Charging DC12.6V AC100~240V
Weight 5.5kg
Screen size 10.2 inches
Battery capacity 8000mAh
Volume 365*295*170mm
​ ​​

​
Zetron OPC-P50 Portable Oil Particle Counter Small Size 8Zetron OPC-P50 Portable Oil Particle Counter Small Size 9
