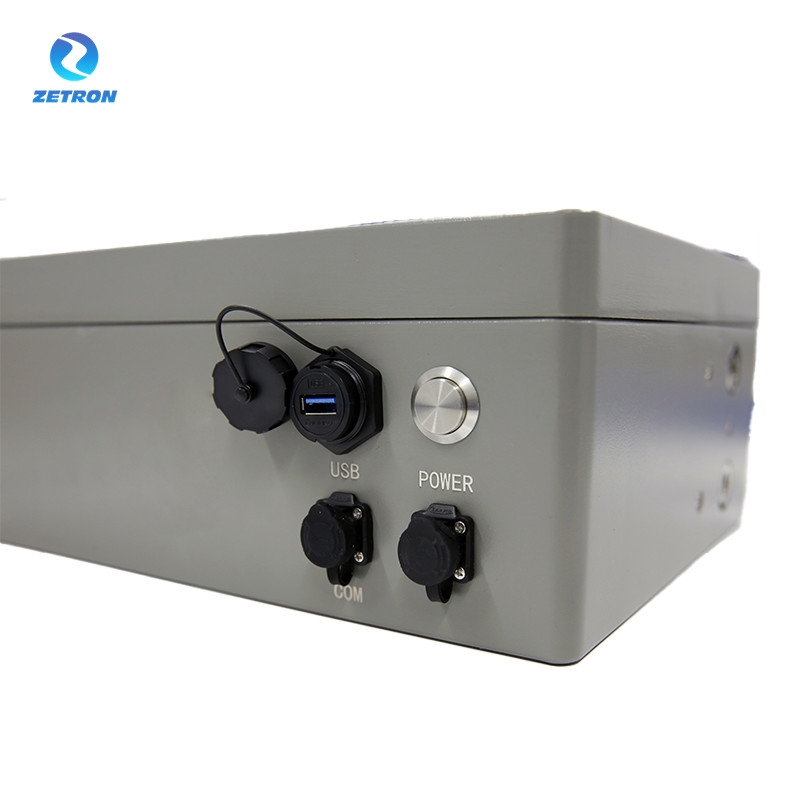

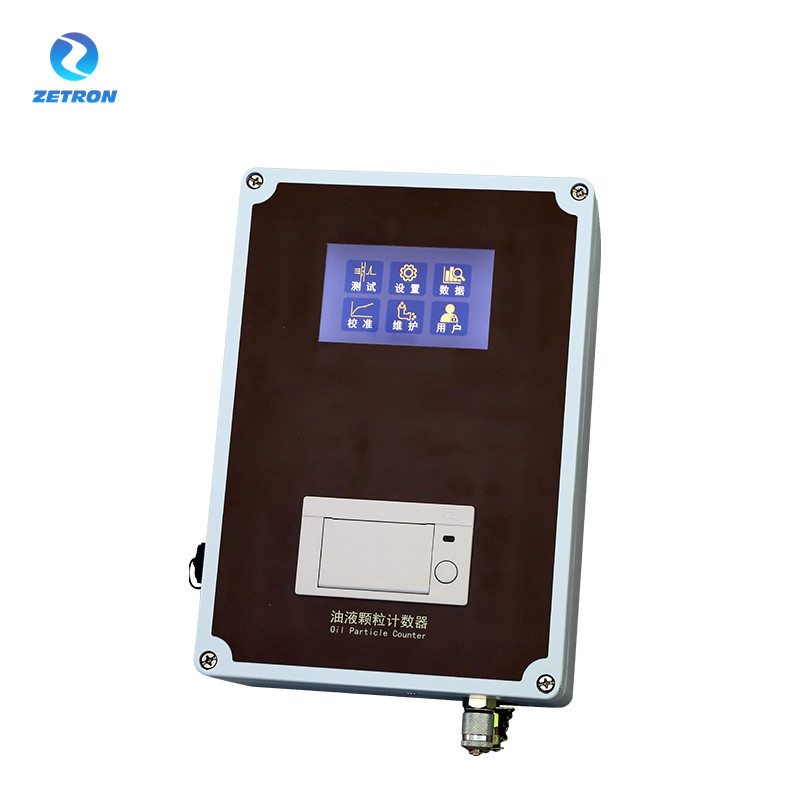

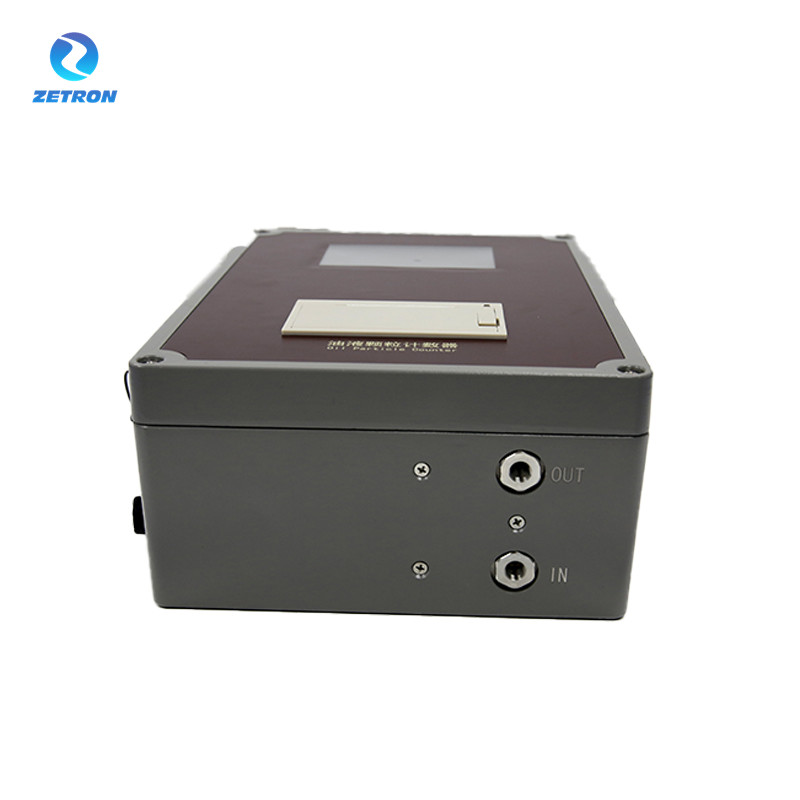

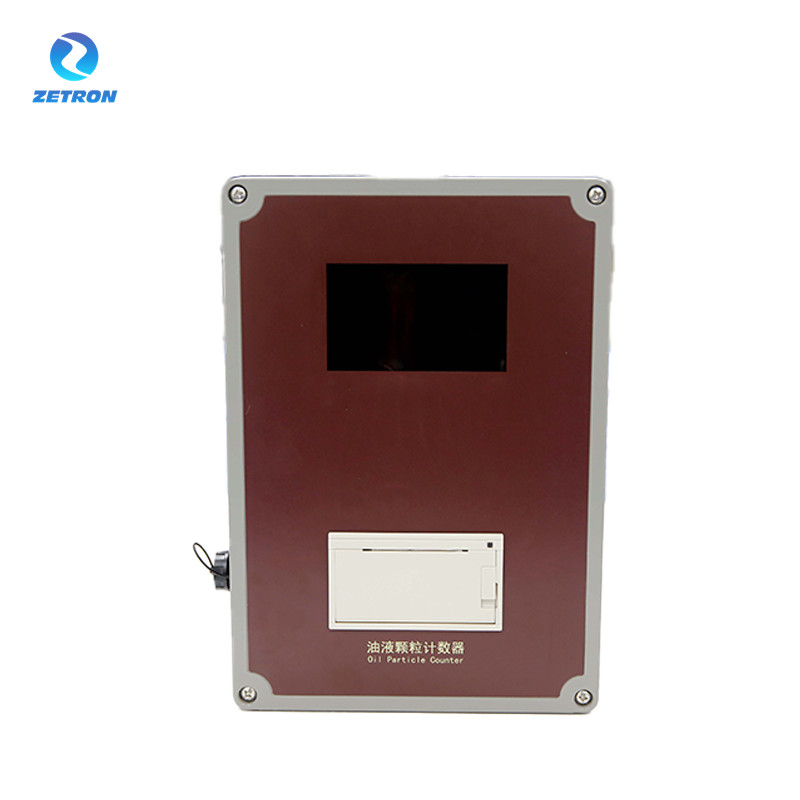

Semiconductor Laser Zetron LPC-O Online Particle Counter

  • Semiconductor Laser Zetron LPC-O Online Particle Counter
  • Semiconductor Laser Zetron LPC-O Online Particle Counter
  • Semiconductor Laser Zetron LPC-O Online Particle Counter
  • Semiconductor Laser Zetron LPC-O Online Particle Counter
Place of Origin China
Brand Name Zetron
Model Number LPC-O
Minimum Order Quantity 1 pcs
Packaging Details Stainless steel 304 suitcase
Delivery Time 14 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name LPC-O Online Particle Counter Light Source Semiconductor Laser
Power Supply 110~245V AC, 50Hz, 70W Overall Dimension 330*230*120mm
Instrument Weight 0.5kg
Highlight

Semiconductor Laser Online Particle Counter

,

LPC-O Online Particle Counter

,

Zetron LPC-O Online Particle Counter
Leave a Message
Product Description

LPC-O Online Particle Counter



OVERVIEW


LPC-O online particle counter is a device specially used for detecting the level of polluted particles in liquids, which adopts the counting principle of the light blocking (shading) method specified by the International Hydraulic Standards Committee and is developed in accordance with national and international standards such as GB/T 18854-2002 (ISO11171-1999) . It can provide fast, accurate, reliable and repeatable test results. It is simple and convenient to operate and is suitable for online monitoring of various oil systems. It can also connect two (or more) slaves to the same host or platform for comparison tests, which is simple to operate and flexible in combination. It can be widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, ports, metallurgy, water treatment, machinery, automobile manufacturing and other fields.


FEATURES

  1. Adopt the light blocking (shading) counting principle specified by the International Hydraulic Standards Committee
  2. High-precision laser sensor, wide test range, stable performance, low noise, high resolution
  3. Adopt high-precision bidirectional plunger pump, stable injection speed and high sampling accuracy
  4. Can be equipped with a built-in pressure reducing device for online high-voltage testing
  5. Built-in common standards such as GJB-420 A, GJB-420B, SAE4059E, ISO4406 , GB / T14039 , NAS1638 and ГOST17216 , support custom standard testing, and can set the required standards according to customer needs
  6. Built-in data analysis system, which can automatically determine the sample level according to the standard, continuously monitor the system and have alarm function, and can set the level alarm for each standard and the size alarm for each channel separately
  7. Built-in multiple calibration curves, compatible with all commonly used domestic and foreign standards for calibration
  8. It can realize continuous automatic online detection and can set the detection interval time arbitrarily.
  9. Baud rate setting available
  10. Chinese and English dual systems, users can switch at will
  11. Different accounts and passwords can be added and permissions can be set
  12. It has RS232 , RS485 and USB interfaces, which can be connected to computers or laboratory platforms, and can also be connected to industrial field buses.
  13. With data storage and printing functions, it is convenient for data sorting and archiving
  14. Can be used as a single machine, can be used online with upstream and downstream to calculate the filtration rate, can be monitored by multiple interconnected remote host computers, can generate curve graphs, historical queries, data exports, etc., with various combinations and strong scalability in application occasions
  15. High-strength metal casing, suitable for use in harsh environments such as on-site
  16. The functions and dimensions of batch instruments can be customized according to customer requirements




LPC-O can be widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.

PRODUCT PARAMETERS

​

​​​
Light source semiconductor laser
Particle size range 0.8μm~600μm (calibrated according to 1~100μm or 4~70μm(c))
Sensitivity 1μm (ISO4402) or 4μm (c)
Sampling volume 0.2~1000ml (recommended 10)
Sampling volume accuracy better than ± 1 %
Detection speed 20mL/min or 5 ~ 80ml/min according to customer needs
Limit coincidence error 40,000 particles/mL
Repeatability RSD<2%
Resolution better than 10%
Counting error better than 10% (less than ±0.1 pollution level)
Online detection pressure 0.1~0.6Mpa (optional pressure reducing device with maximum pressure up to 42 MPa)
Online detection interval 1 second ~ 23 hours 59 minutes 59 seconds
Detection channel 8 channels, particle size can be set arbitrarily
Protection level IP56
Test sample temperature 0ºC~80ºC
Working temperature -20ºC~60ºC
Power supply 100~240VAC or DC24V
Screen size 5.0 inches
Instrument size 330*230*120mm
​​​

​


 Semiconductor Laser Zetron LPC-O Online Particle Counter 8Semiconductor Laser Zetron LPC-O Online Particle Counter 9
