COCL2 Portable Single Gas Detector Electrochemical Sensor Accurate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Protable Single Gas Detector | Model Number | MS104K-S1 |
|---|---|---|---|
| Type | Biogas Analyzer | Detecting Gas | CO, CO2, O2, H2S,EX |
| Display Mode | 1.7inch LCD | Sensor Type | Electrochemical Sensor,IR Sensor And Etc |
| Unit | Ppm, Mg/m3, LEL,VOL | Detection Range | 0-100ppm,0-100%LEL,0-100%VOL,depending Onrequirement |
| Sampling Type | Diffusion | Size | 86×62×39mm(L×W×H) |
| Weight | 200g | ||
| Highlight | COCL2 portable single gas detector,Accurate portable single gas detector,personal gas detector COCL2 |
||
Product Description

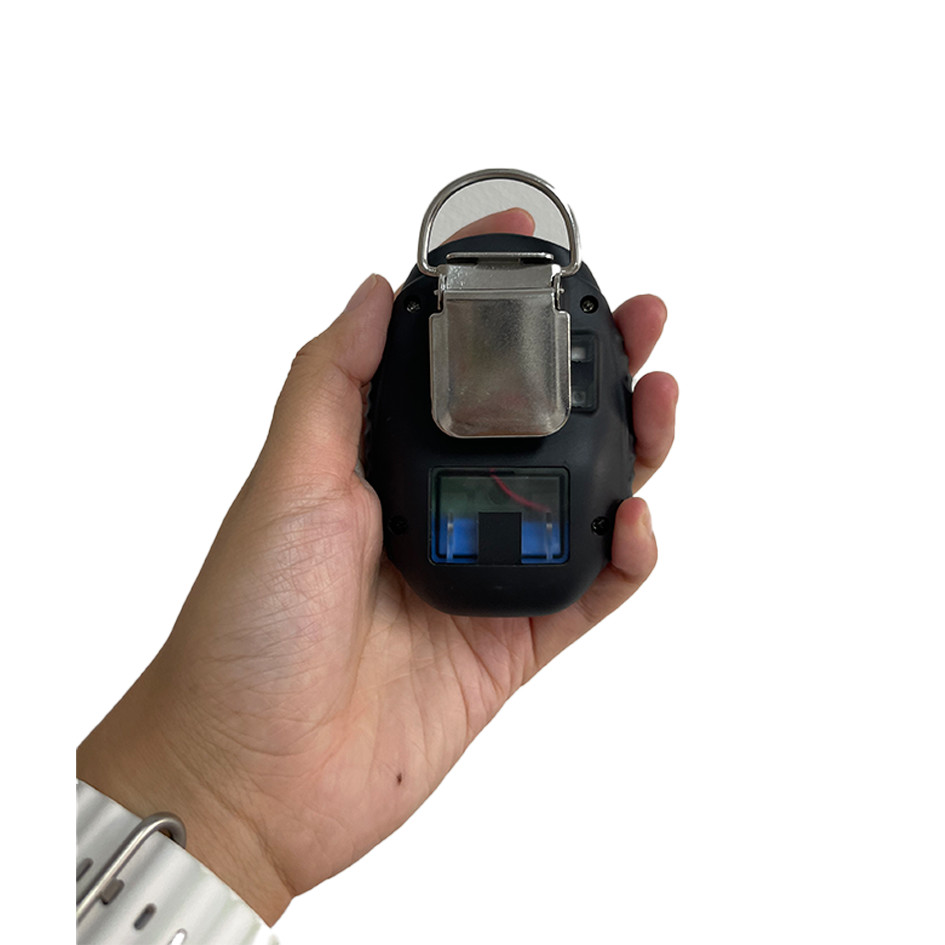

MS104K-S1 Protable Single Gas Detector
OVERVIEW
The MS104K-S1 is a compact, reliable and maintenance-free gas detector designed to ensure worker safety and operational compliance. It provides up to two years of protection without the need for calibration, sensor replacement or battery maintenance. It is certified to IECEx, ATEX and CNEX explosion-proof standards and meets stringent quality and safety requirements!
The MS104K-S1 is ergonomically designed to be easily attached to clothing or helmets using alligator clips for portability. It is capable of detecting a wide range of flammable, toxic and hazardous gases, including liquefied petroleum gas (LPG), methane (CH4), carbon monoxide, hydrogen sulfide, oxygen and sulfur dioxide. Other gases can be detected on a customized basis. Its versatility makes it an ideal solution for industries such as petroleum, petrochemical, metallurgy and chemical manufacturing, ensuring gas monitoring
FEATURES
1. Could test more than 100 gas types, especially with lR sensor forCO2.CH4.LPG,LNG combustious gas detection
2. Standby time up to 2 years, no need to replace the battery
3. Maintenance free: one button to work continuously-no calibration, nosensor replacement, no battery charging
4. With self-test function, improve safety by automatic self-test
5. Light, Sound & Valibration alarm.90dB@30cm
6. Fire-resistant, anti-static and anti-frequency radiation
7. With data storage function, not less than 100000pieces
8. Infrared communication interface
9. With human fell-down alarm function.
10. 1.7inch LCD display with backlit function
11. Atex,lEcex, Sil3 and lP68 certified
2. Standby time up to 2 years, no need to replace the battery
3. Maintenance free: one button to work continuously-no calibration, nosensor replacement, no battery charging
4. With self-test function, improve safety by automatic self-test
5. Light, Sound & Valibration alarm.90dB@30cm
6. Fire-resistant, anti-static and anti-frequency radiation
7. With data storage function, not less than 100000pieces
8. Infrared communication interface
9. With human fell-down alarm function.
10. 1.7inch LCD display with backlit function
11. Atex,lEcex, Sil3 and lP68 certified
APPLICATION SCENES
MS104K-S1 is widely used in petroleum,petrochemical, metallurgy,chemical and other industries for gasdetection and personnel protection.
SPECIFICATION
| Data Sheet | |
| Detection Gas | carbon monoxide CO,hydrogen sulfide H2S,oxygen O2,combustible gas Ex,carbon dioxide CO2,etc. |
| Detection Range | 0-100ppm,0-100%LEL,0-100%VOL,depending on requirement |
| Unit | ppm,mg/m3,LEL,VOL |
| Sensor Principle | Electrochemical sensor,IR sensor and etc |
| Sampling Type | Diffusion |
| Display | 1.7inch LCD |
| Display content | real-time concentration,alarm,power,charging status concentration unit,gas name,etc |
| Accurancy | ≤±3%FS |
| Responding time | T90≤30S |
| Power supply | DC3.6V |
| Battery capacity | 1600mAh energy battery,no charging,working time 1-2 years |
| Working Environment | Temperature:-20℃~+50℃,can be customized -40℃~+70℃ Relative humidity:10-95%RH |
| Communication | nfrared,optional communication base for communication, manual calibration and export of data |
| Language | English |
| Explosion-proof | Exia I CT4Ga,Sil3,Atex |
| Protection Leve | IP68 |
| Size | 87x63x32mm |
| Weight | 200g |
| Standard Accessories | calibration cover(diffusion type),instructions,certificate packaging box |
| Optional | communication base (TYPE-C interface) |
