SiH4 Portable Single Gas Detector With 1.7 Inch LCD
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Protable Single Gas Detector | Model Number | MS104K-S1 |
|---|---|---|---|
| Type | Biogas Analyzer | Detecting Gas | CO, CO2, O2, H2S,EX |
| Display Mode | 1.7 Inch LCD | Sensor Type | Electrochemical Sensor,IR Sensor And Etc |
| Unit | Ppm, Mg/m3, LEL,VOL | Detection Range | 0-100ppm,0-100%LEL,0-100%VOL,depending Onrequirement |
| Sampling Type | Diffusion | Size | 86×62×39mm(L×W×H) |
| Weight | 200g | ||
| Highlight | SiH4 portable single gas detector,1.7 Inch portable single gas detector,LCD portable single gas detector |
||
Product Description

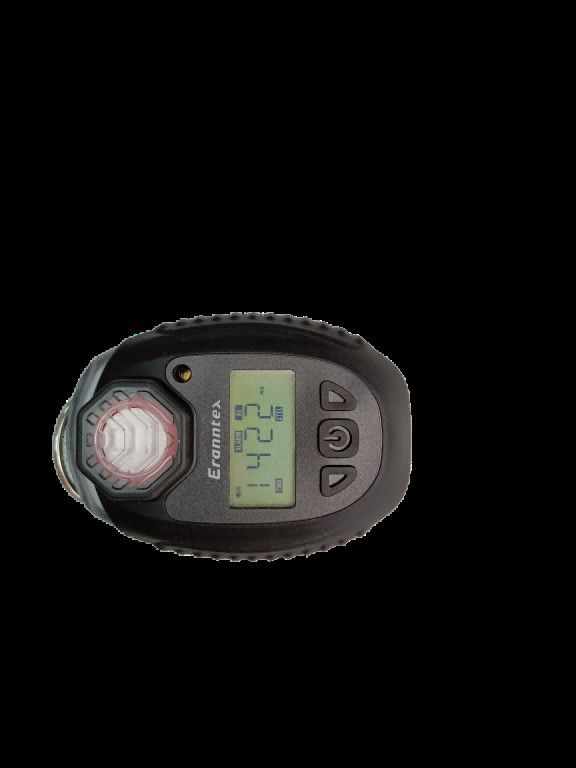

MS104K-S1 Protable Single Gas Detector
OVERVIEW
The MS104K-S1 is a top-tier maintenance-free single gas detector that is both reliable and user-friendly, making it a cost-effective choice for protecting workers and ensuring compliance with safety regulations. It features an impressive operational time of up to two years with no calibration, sensor replacement, battery check, or charging needed. With certifications from IECEx, ATEX, and CNEX for explosion-proof safety, it meets the highest standards of quality and reliability. Its lightweight, robust construction allows it to be easily clipped onto work coats or caps for convenient portability. This versatile detector can identify a range of gases, including LPG, CH4, carbon monoxide, hydrogen sulfide, and sulfur dioxide, and can be customized to accommodate other toxic gases. The MS104K-S1 is widely deployed in the petroleum, petrochemical, metallurgy, and chemical industries for effective gas monitoring and personnel safety.
FEATURES
1. Could test more than 100 gas types, especially with lR sensor forCO2.CH4.LPG,LNG combustious gas detection
2. Standby time up to 2 years, no need to replace the battery
3. Maintenance free: one button to work continuously-no calibration, nosensor replacement, no battery charging
4. With self-test function, improve safety by automatic self-test
5. Light, Sound & Valibration alarm.90dB@30cm
6. Fire-resistant, anti-static and anti-frequency radiation
7. With data storage function, not less than 100000pieces
8. Infrared communication interface
9. With human fell-down alarm function.
10. 1.7inch LCD display with backlit function
11. Atex,lEcex, Sil3 and lP68 certified
2. Standby time up to 2 years, no need to replace the battery
3. Maintenance free: one button to work continuously-no calibration, nosensor replacement, no battery charging
4. With self-test function, improve safety by automatic self-test
5. Light, Sound & Valibration alarm.90dB@30cm
6. Fire-resistant, anti-static and anti-frequency radiation
7. With data storage function, not less than 100000pieces
8. Infrared communication interface
9. With human fell-down alarm function.
10. 1.7inch LCD display with backlit function
11. Atex,lEcex, Sil3 and lP68 certified
APPLICATION SCENES
MS104K-S1 is widely used in petroleum,petrochemical, metallurgy,chemical and other industries for gasdetection and personnel protection.
SPECIFICATION
| Data Sheet | |
| Detection Gas | carbon monoxide CO,hydrogen sulfide H2S,oxygen O2,combustible gas Ex,carbon dioxide CO2,etc. |
| Detection Range | 0-100ppm,0-100%LEL,0-100%VOL,depending on requirement |
| Unit | ppm,mg/m3,LEL,VOL |
| Sensor Principle | Electrochemical sensor,IR sensor and etc |
| Sampling Type | Diffusion |
| Display | 1.7inch LCD |
| Display content | real-time concentration,alarm,power,charging status concentration unit,gas name,etc |
| Accurancy | ≤±3%FS |
| Responding time | T90≤30S |
| Power supply | DC3.6V |
| Battery capacity | 1600mAh energy battery,no charging,working time 1-2 years |
| Working Environment | Temperature:-20℃~+50℃,can be customized -40℃~+70℃ Relative humidity:10-95%RH |
| Communication | nfrared,optional communication base for communication, manual calibration and export of data |
| Language | English |
| Explosion-proof | Exia I CT4Ga,Sil3,Atex |
| Protection Leve | IP68 |
| Size | 87x63x32mm |
| Weight | 200g |
| Standard Accessories | calibration cover(diffusion type),instructions,certificate packaging box |
| Optional | communication base (TYPE-C interface) |
