Compact Electrochemical Sensor personal gas meter Accurate AsH3 Detection

  • Compact Electrochemical Sensor personal gas meter Accurate AsH3 Detection
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MS104K-S1
Minimum Order Quantity 1
Price 320-440USD
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Protable Single Gas Detector Model Number MS104K-S1
Type Biogas Analyzer Detecting Gas CO, CO2, O2, H2S,EX
Display Mode 1.7inch LCD Sensor Type Electrochemical Sensor,IR Sensor And Etc
Unit Ppm, Mg/m3, LEL,VOL Detection Range 0-100ppm,0-100%LEL,0-100%VOL,depending Onrequirement
Sampling Type Diffusion Size 86×62×39mm(L×W×H)
Weight 200g
Highlight

Compact personal gas meter

,

Accurate AsH3 Detection personal gas meter

,

AsH3 portable single gas detector
Leave a Message
Product Description

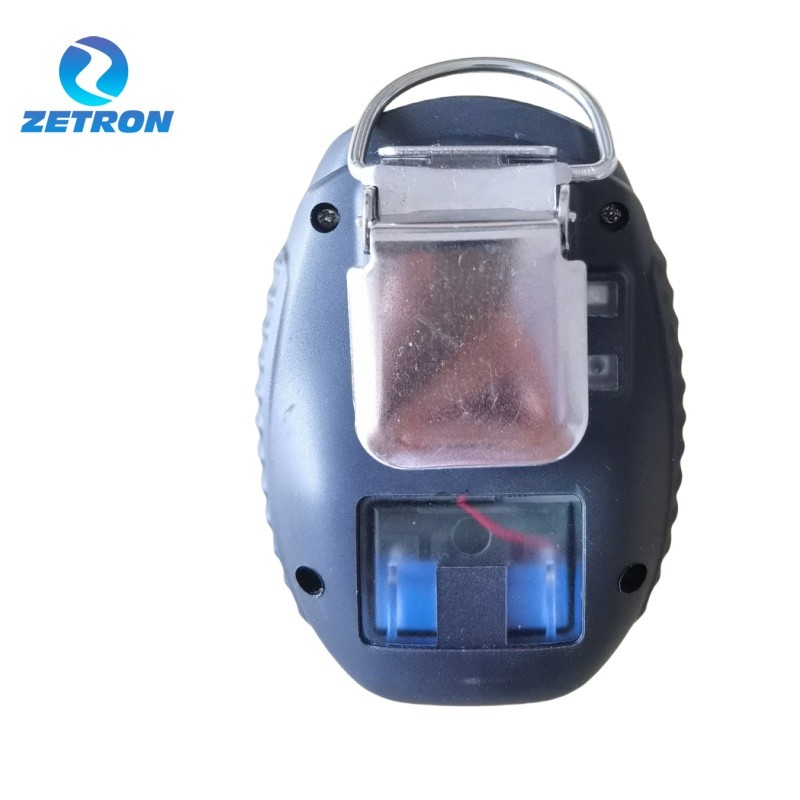

MS104K-S1​ Protable Single Gas Detector

OVERVIEW

The MS104K-S1 is an innovative, maintenance-free single gas detector, renowned for its reliability, user-friendliness, and cost-effectiveness in promoting worker safety and ensuring regulatory compliance. This detector provides up to two years of hassle-free operation without the need for calibration, sensor or battery replacements, or charging. Certified with IECEx, ATEX, and CNEX explosion-proof standards, it guarantees exceptional quality and reliability for the safety of personnel. Compact and robust, the MS104K-S1 features an ergonomic design that can be easily clipped onto work attire like coats or caps. It effectively detects a range of combustible, toxic, and harmful gases, including LPG, CH4, carbon monoxide, hydrogen sulfide, oxygen, and sulfur dioxide, with options for additional customized toxic gas detection. Its widespread application spans industries such as petroleum, petrochemical, metallurgy, and chemicals for gas monitoring and personnel safety.

FEATURES

1. Could test more than 100 gas types, especially with lR sensor forCO2.CH4.LPG,LNG combustious gas detection
2. Standby time up to 2 years, no need to replace the battery
3. Maintenance free: one button to work continuously-no calibration, nosensor replacement, no battery charging
4. With self-test function, improve safety by automatic self-test
5. Light, Sound & Valibration alarm.90dB@30cm
6. Fire-resistant, anti-static and anti-frequency radiation
7. With data storage function, not less than 100000pieces
8. Infrared communication interface
9. With human fell-down alarm function.
10. 1.7inch LCD display with backlit function
11. Atex,lEcex, Sil3 and lP68 certified
APPLICATION SCENES

MS104K-S1 is widely used in petroleum,petrochemical, metallurgy,chemical and other industries for gasdetection and personnel protection.

SPECIFICATION



Data Sheet
Detection Gas carbon monoxide CO,hydrogen sulfide H2S,oxygen O2,combustible gas Ex,carbon dioxide CO2,etc.
Detection Range 0-100ppm,0-100%LEL,0-100%VOL,depending on requirement
Unit ppm,mg/m3,LEL,VOL
Sensor Principle Electrochemical sensor,IR sensor and etc
Sampling Type Diffusion
Display 1.7inch LCD
Display content real-time concentration,alarm,power,charging status concentration unit,gas name,etc
Accurancy ≤±3%FS
Responding time T90≤30S
Power supply DC3.6V
Battery capacity 1600mAh energy battery,no charging,working time 1-2 years
Working Environment Temperature:-20℃~+50℃,can be customized -40℃~+70℃
Relative humidity:10-95%RH
Communication nfrared,optional communication base for communication,
manual calibration and export of data
Language English
Explosion-proof Exia I CT4Ga,Sil3,Atex
Protection Leve IP68
Size 87x63x32mm
Weight 200g
Standard Accessories calibration cover(diffusion type),instructions,certificate packaging box
Optional communication base (TYPE-C interface)
