portable H2s Single Gas Detector Accurate Indoor Air Quality Monitoring
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Protable Single Gas Detector | Model Number | MS104K-S1 |
|---|---|---|---|
| Type | Biogas Analyzer | Detecting Gas | CO, CO2, O2, H2S,EX |
| Display Mode | 1.7inch LCD | Sensor Type | Electrochemical Sensor,IR Sensor And Etc |
| Unit | Ppm, Mg/m3, LEL,VOL | Detection Range | 0-100ppm,0-100%LEL,0-100%VOL,depending Onrequirement |
| Sampling Type | Diffusion | Size | 86×62×39mm(L×W×H) |
| Weight | 200g | ||
| Highlight | portable h2s single gas detector,Accurate h2s single gas detector,H2s portable single gas detector |
||
Product Description

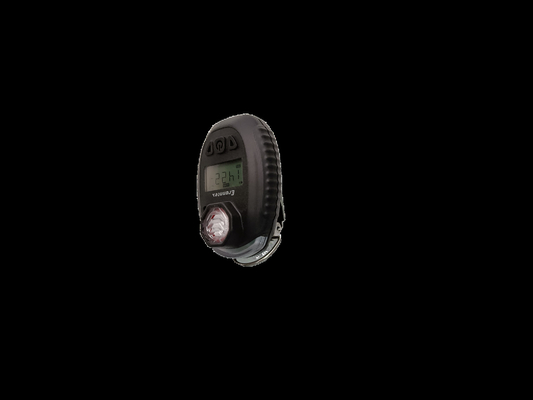

MS104K-S1 Protable Single Gas Detector
OVERVIEW
The MS104K-S1 is a state-of-the-art maintenance-free single gas detector known for its exceptional reliability, user-centric design, and cost-saving features that enhance worker safety and compliance. It boasts an extended operational life of up to two years without necessitating calibration, battery or sensor changes, or recharging. Approved by IECEx, ATEX, and CNEX, it meets rigorous explosion-proof criteria, ensuring the highest quality and reliability for worker safety. Ergonomically designed, the compact MS104K-S1 can be easily clipped onto work clothing or caps for effortless transportation. This detector identifies a range of combustibles and harmful gases, including LPG, CH4, carbon monoxide, hydrogen sulfide, and sulfur dioxide, with the option to customize for other toxic gases. Its widespread use in petroleum, petrochemical, metallurgy, and chemical industries highlights its importance in gas detection and personnel protection.
FEATURES
1. Could test more than 100 gas types, especially with lR sensor forCO2.CH4.LPG,LNG combustious gas detection
2. Standby time up to 2 years, no need to replace the battery
3. Maintenance free: one button to work continuously-no calibration, nosensor replacement, no battery charging
4. With self-test function, improve safety by automatic self-test
5. Light, Sound & Valibration alarm.90dB@30cm
6. Fire-resistant, anti-static and anti-frequency radiation
7. With data storage function, not less than 100000pieces
8. Infrared communication interface
9. With human fell-down alarm function.
10. 1.7inch LCD display with backlit function
11. Atex,lEcex, Sil3 and lP68 certified
2. Standby time up to 2 years, no need to replace the battery
3. Maintenance free: one button to work continuously-no calibration, nosensor replacement, no battery charging
4. With self-test function, improve safety by automatic self-test
5. Light, Sound & Valibration alarm.90dB@30cm
6. Fire-resistant, anti-static and anti-frequency radiation
7. With data storage function, not less than 100000pieces
8. Infrared communication interface
9. With human fell-down alarm function.
10. 1.7inch LCD display with backlit function
11. Atex,lEcex, Sil3 and lP68 certified
APPLICATION SCENES
MS104K-S1 is widely used in petroleum,petrochemical, metallurgy,chemical and other industries for gasdetection and personnel protection.
SPECIFICATION
| Data Sheet | |
| Detection Gas | carbon monoxide CO,hydrogen sulfide H2S,oxygen O2,combustible gas Ex,carbon dioxide CO2,etc. |
| Detection Range | 0-100ppm,0-100%LEL,0-100%VOL,depending on requirement |
| Unit | ppm,mg/m3,LEL,VOL |
| Sensor Principle | Electrochemical sensor,IR sensor and etc |
| Sampling Type | Diffusion |
| Display | 1.7inch LCD |
| Display content | real-time concentration,alarm,power,charging status concentration unit,gas name,etc |
| Accurancy | ≤±3%FS |
| Responding time | T90≤30S |
| Power supply | DC3.6V |
| Battery capacity | 1600mAh energy battery,no charging,working time 1-2 years |
| Working Environment | Temperature:-20℃~+50℃,can be customized -40℃~+70℃ Relative humidity:10-95%RH |
| Communication | nfrared,optional communication base for communication, manual calibration and export of data |
| Language | English |
| Explosion-proof | Exia I CT4Ga,Sil3,Atex |
| Protection Leve | IP68 |
| Size | 87x63x32mm |
| Weight | 200g |
| Standard Accessories | calibration cover(diffusion type),instructions,certificate packaging box |
| Optional | communication base (TYPE-C interface) |
