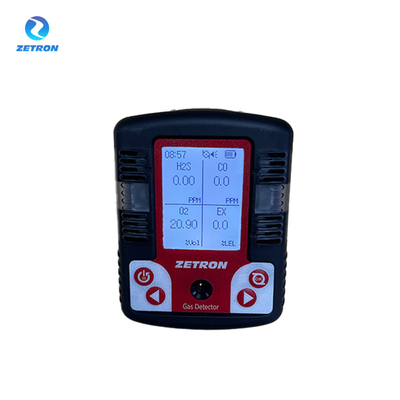

Zetron Ms104K-M Portable Measurement Device High Precision Detection CO O2 H2S And LEL

Place of Origin	China
Brand Name	Zetron
Certification	CE, ISO13485, ISO9001
Model Number	MS104K-M
Minimum Order Quantity	1
Price	320-440USD
Packaging Details	paper carton
Delivery Time	3-7 days
Payment Terms	T/T, Western Union, MoneyGram
Supply Ability	1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Protable Single Gas Detector	Model Number	MS104K-M
Type	Biogas Analyzer	Detecting Gas	CO, CO2, O2, H2S,EX
Display Mode	1.7inch LCD	Sensor Type	Electrochemical Sensor,IR Sensor And Etc
Unit	Ppm, Mg/m3, LEL,VOL	Detection Range	0-100ppm,0-100%LEL,0-100%VOL,depending Onrequirement
Sampling Type	Diffusion	Size	90x70x38mm(L X W X H)
Weight	380g
Highlight	Portable 4 gas detector , 4 gas detector Measurement Device , High Precision Detection 4 gas detector

Leave a Message

Product Description

MS104K Portable 4-in-1 Multi Diffusion Type Gas Detector

OVERVIEW

Developed for quick and precise gas leak detection, the MS104K-M portable four-in-one gas detector alerts users when gas concentrations exceed established safety limits. It features multiple detection principles, including electrochemical technology, infrared sensing, catalytic combustion, thermal conductivity, and photoionization detection (PID). The detector is widely applied in industries like firefighting, emergency response, confined space monitoring, petroleum and chemical production, mining, metallurgy, refining, gas distribution, warehousing, healthcare, environmental management, and air quality control.

FEATURES
Could test any 1 to 4 gases in one equipment
Diffusion/pumping measurement, the external pump is connected to the instrumentin an integrated type
With felldown alarm
With computer software for data transfer and analysise
With different probes for multi-applications

​Detailed Photos

SPECIFICATION

			Detection factor
			1-4 gases (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, combustible gas Ex, CO2 CO2, VOC, etc.),

			Depending on the site environment and user needs

			Scope of detection
			Depending on the site environment and user needs

			resolution ratio
			0.001ppm (0-10ppm high precision) / 0.01ppm (0-10 ppm);0.01ppm (0-100 ppm),0.1ppm (0-1000 ppm), 1ppm (0-5000 ppm); 0.1% LEL; 0.01%Vol

			Unit display
			Option: umol / mol, ppm, mg/m3, VOL%, LEL%

			Detection principle
			Electrochemistry, catalytic combustion, infrared, thermal conductivity, semiconductor, PID photoions, etc., according to the range, field environment and user needs

			Sensor life
			2 - 3 years for electrochemical chemistry, 2 - 3 years for catalytic combustion, 5 years for infrared, 2 - 5 years for thermal conductivity, and 2 years for PID

			detection mode
			Diffusion type / pump suction type, standard equipment: external pump, pump plug alarm function

			display mode
			LCD

			Display content
			Real-time concentration, alarm, time, storage, communication state, electric quantity, charging state, concentration unit, gas molecular formula, etc

			Detection accuracy
			Typical accuracy: ± 3% FS (optional higher precision sensor)
			uncertainty
			≤±2%

			degree of linearity
			≤±3%
			repetitiveness
			≤±2%

			response time
			T9020 seconds (GM)
			recovery time
			30 seconds (GM)

			working power supply
			DC 7.4V

			battery capacity
			7.4V, 1400 mAH rechargeable polymer battery, with over charge, over discharge, over voltage, short circuit, overheat protection functions

			stand-by time
			Over 100 hours (no catalytic sensor)

			The alarm volume
			Buzzer 85dB (1 m distance)

			service environment
			Temperature: -20ºC ~ + 60ºC, it can be customized-40ºC ~ + 70ºC; Relative humidity: 10-95% RH

			communication interface
			Standard Type-C fast charging and communication, with a seat charging base

			data storage
			Standard capacity 100,000; support local view, delete or data export, storage time interval set

			Interface language
			Chinese or English can be set, the default Chinese interface

			Explosion-proof type
			Intrinsically safe type ExiaCT4Ga

			levels of protection
			IP68

			Case material
			High strength corrosion resistance, fire proof polycarbonate, integral glue, anti-fall wear resistance anti-static, effective drop resistance of 5 meters

			External size
			Maximum size: 907038mm (LWH)
			weight
			200g

			standard accessory
			Manual, qualification certificate, USB charger (including data line), instrument box, external pump, filter 1.

			Optional function
			Temperature detection: -40ºC ~ + 70ºC precision 0.5ºC; humidity detection: 0-100% RH precision 3% RH

			Wireless data transmission: LORA, Bluetooth, SOS, one-click call for help.(4G?)

			External micro-powered wireless Bluetooth printer.

			Optional attachment
			Multiple filters
