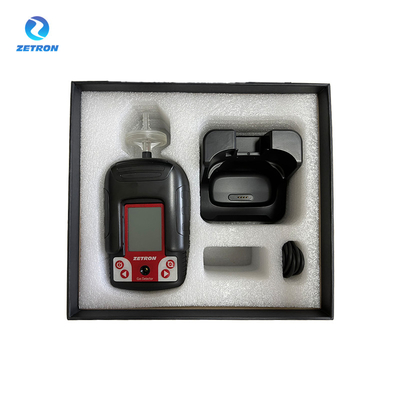

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL

  • Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MS104K-M
Minimum Order Quantity 1
Price 320-440USD
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Protable Single Gas Detector Model Number MS104K-M
Type Biogas Analyzer Detecting Gas CO, CO2, O2, H2S,EX
Display Mode 1.7inch LCD Sensor Type Electrochemical Sensor,IR Sensor And Etc
Unit Ppm, Mg/m3, LEL,VOL Detection Range 0-100ppm,0-100%LEL,0-100%VOL,depending Onrequirement
Sampling Type Diffusion Size 90x70x38mm(L X W X H)
Weight 380g
Highlight

Portable Four in One Gas Detector

,

Accurate multi gas detector 4 gas

,

LCD multi gas detector 4 gas
Leave a Message
Product Description

MS104K Portable 4-in-1 Multi Diffusion Type Gas Detector



OVERVIEW



The MS104K-M four-in-one gas detector is an essential tool for rapidly detecting gas leaks, sounding alarms when gas concentrations exceed safe thresholds. Utilizing an array of detection technologies—electrochemical methods, infrared analysis, catalytic combustion, thermal conductivity, and photoionization detection (PID)—this portable device supports various applications. It is commonly found in sectors such as fire safety, emergency rescue, confined spaces, petroleum and chemical industries, coal mining, metallurgy, refining, gas management, warehousing, healthcare, environmental protection, and air quality management.



Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 0


FEATURES
  • Could test any 1 to 4 gases in one equipment
  • Diffusion/pumping measurement, the external pump is connected to the instrumentin an integrated type
  • With felldown alarm
  • With computer software for data transfer and analysise
  • With different probes for multi-applications
Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 1





​Detailed Photos

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 2

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 3

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 4

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 5

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 6

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 7

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 8

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 9

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 10



SPECIFICATION



Detection factor 1-4 gases (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, combustible gas Ex, CO2 CO2, VOC, etc.),
Depending on the site environment and user needs
Scope of detection Depending on the site environment and user needs
resolution ratio 0.001ppm (0-10ppm high precision) / 0.01ppm (0-10 ppm);0.01ppm (0-100 ppm),0.1ppm (0-1000 ppm), 1ppm (0-5000 ppm); 0.1% LEL; 0.01%Vol
Unit display Option: umol / mol, ppm, mg/m3, VOL%, LEL%
Detection principle Electrochemistry, catalytic combustion, infrared, thermal conductivity, semiconductor, PID photoions, etc., according to the range, field environment and user needs
Sensor life 2 - 3 years for electrochemical chemistry, 2 - 3 years for catalytic combustion, 5 years for infrared, 2 - 5 years for thermal conductivity, and 2 years for PID
detection mode Diffusion type / pump suction type, standard equipment: external pump, pump plug alarm function
display mode LCD
Display content Real-time concentration, alarm, time, storage, communication state, electric quantity, charging state, concentration unit, gas molecular formula, etc
Detection accuracy Typical accuracy: ± 3% FS (optional higher precision sensor) uncertainty ≤±2%
degree of linearity ≤±3% repetitiveness ≤±2%
response time T9020 seconds (GM) recovery time 30 seconds (GM)
working power supply DC 7.4V
battery capacity 7.4V, 1400 mAH rechargeable polymer battery, with over charge, over discharge, over voltage, short circuit, overheat protection functions
stand-by time Over 100 hours (no catalytic sensor)
The alarm volume Buzzer 85dB (1 m distance)
service environment Temperature: -20ºC ~ + 60ºC, it can be customized-40ºC ~ + 70ºC; Relative humidity: 10-95% RH
communication interface Standard Type-C fast charging and communication, with a seat charging base
data storage Standard capacity 100,000; support local view, delete or data export, storage time interval set
Interface language Chinese or English can be set, the default Chinese interface
Explosion-proof type Intrinsically safe type ExiaCT4Ga
levels of protection IP68
Case material High strength corrosion resistance, fire proof polycarbonate, integral glue, anti-fall wear resistance anti-static, effective drop resistance of 5 meters
External size Maximum size: 907038mm (LWH) weight 200g
standard accessory Manual, qualification certificate, USB charger (including data line), instrument box, external pump, filter 1.
Optional function Temperature detection: -40ºC ~ + 70ºC precision 0.5ºC; humidity detection: 0-100% RH precision 3% RH
Wireless data transmission: LORA, Bluetooth, SOS, one-click call for help.(4G?)
External micro-powered wireless Bluetooth printer.
Optional attachment Multiple filters

Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL 15
