Touch Dissolved Ozone Oxygen Concentration Analyzer Zetron Uvoz-150W

Uvoz-150W Dissolved Ozone Concentration Analyzer

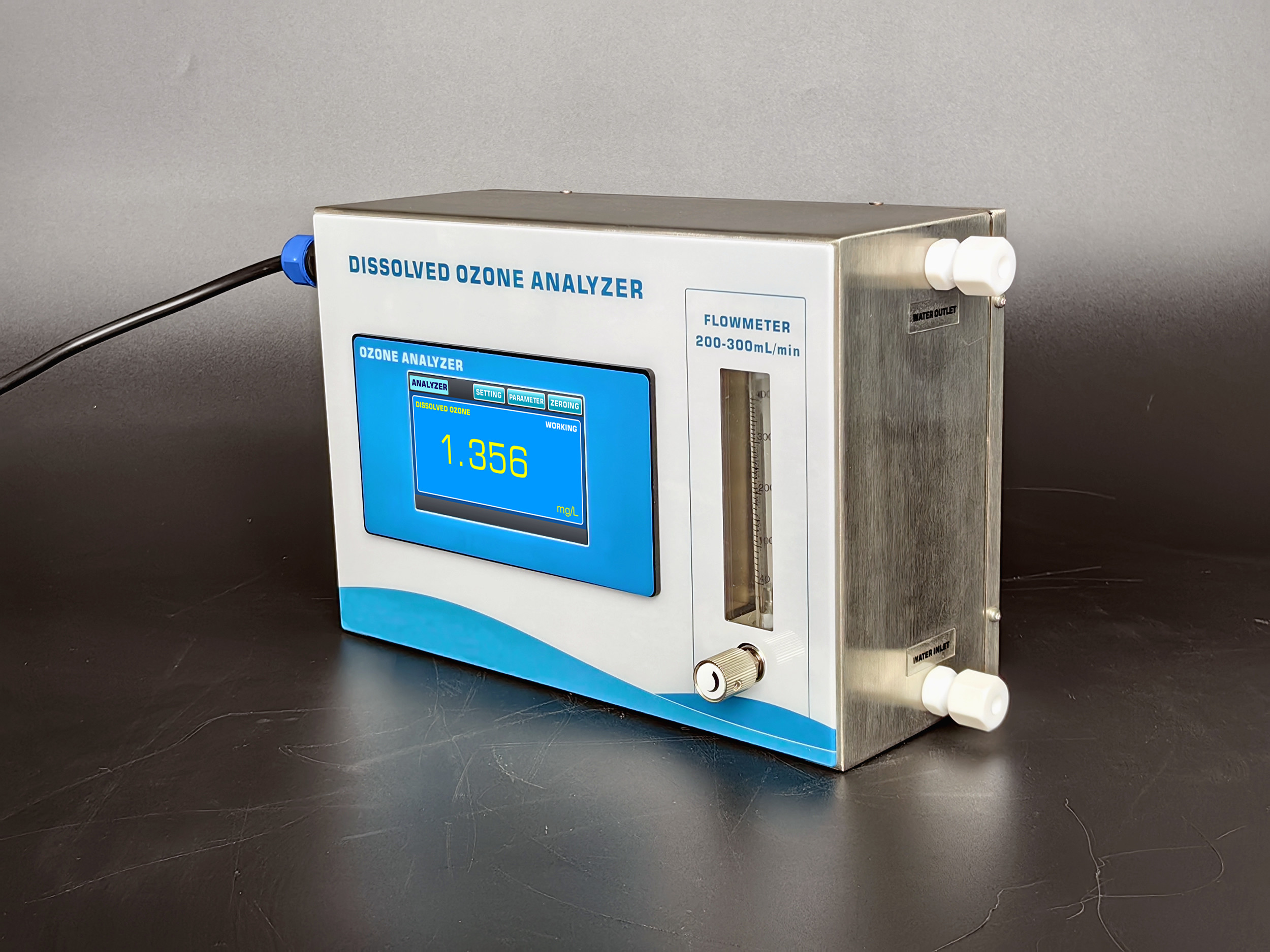

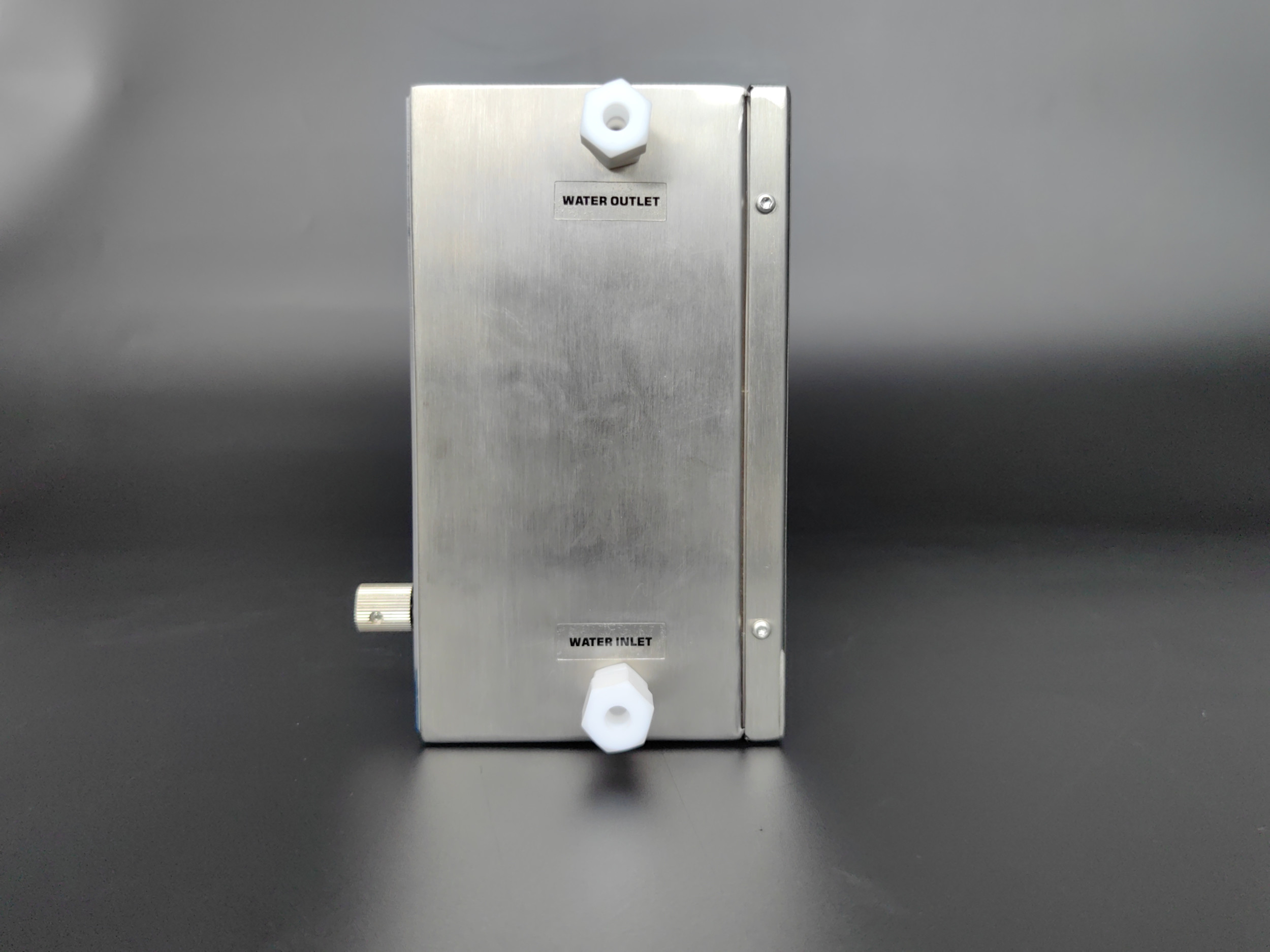

The dissolved ozone concentration analyzer is a direct measurement of ozone content in ultrapure water or constant turbidity water using ultraviolet spectrophotometry. The customizable version is HF, which can be used for 20% ozone aqueous solution. Materials in contact with ozone water include PTFE, FFPM, PFA, and quartz or sapphire. The UVOZ-180W dissolved ozone water concentration analyzer is equipped with an inlet and outlet, and is equipped with a touch screen operation interface. The output is directly connected to the PLC with 4-20mA and RS-485 signal lines.
The dissolved ozone concentration analyzer has an automatic adjustment system function with a UV light source, which can adjust the brightness of the UV LED light source in real-time according to the reference light data to maintain constant zero point data, ensuring the stability of the zero point. It is a patented product of our company. This ozone analyzer can operate continuously without stopping for 24 hours. The superior stability of this ozone concentration analyzer is achieved through the use of a true dual beam optical system and an extremely long-lived ultraviolet LED light source.

Test method: Dual path UV absorption method, long-life light source system, high measurement accuracy.
Measurement principle: According to the Lambert Beer law, precise measurement is carried out through the principle of photometric absorption.
Measurement range: 0-20ppm; 0-50ppm; 0-100ppm; 0-120ppm; 0-180ppm; 0-200ppm.
Light source system: Foreign long-life ultraviolet light source system (wavelength 253.7nm), with a free warranty of 3 years.

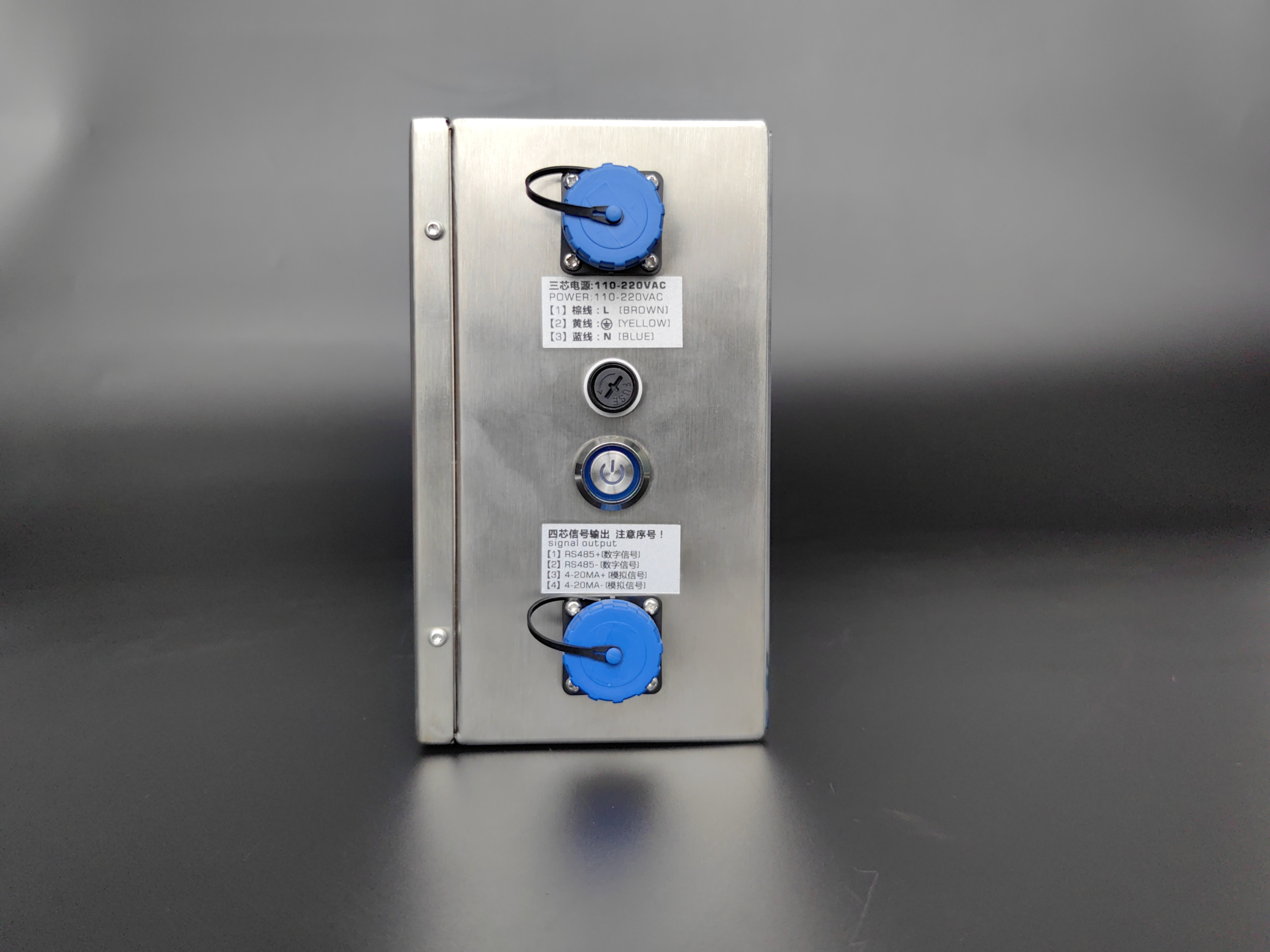

Usage: Indoor installation and use, equipped with waterproof aviation plug terminals.
Light pool system: Separate light pool technology, leak free, high pressure resistance, and resistance to high flow rate sampling liquid impact.
Intelligent compensation: equipped with automatic zero adjustment and automatic light source compensation function.
Operation method: It can be manually zeroed, and during zeroing, it is necessary to ensure that there is no ozone aqueous solution in the instrument.
Display unit: mg/L, ppm optional.

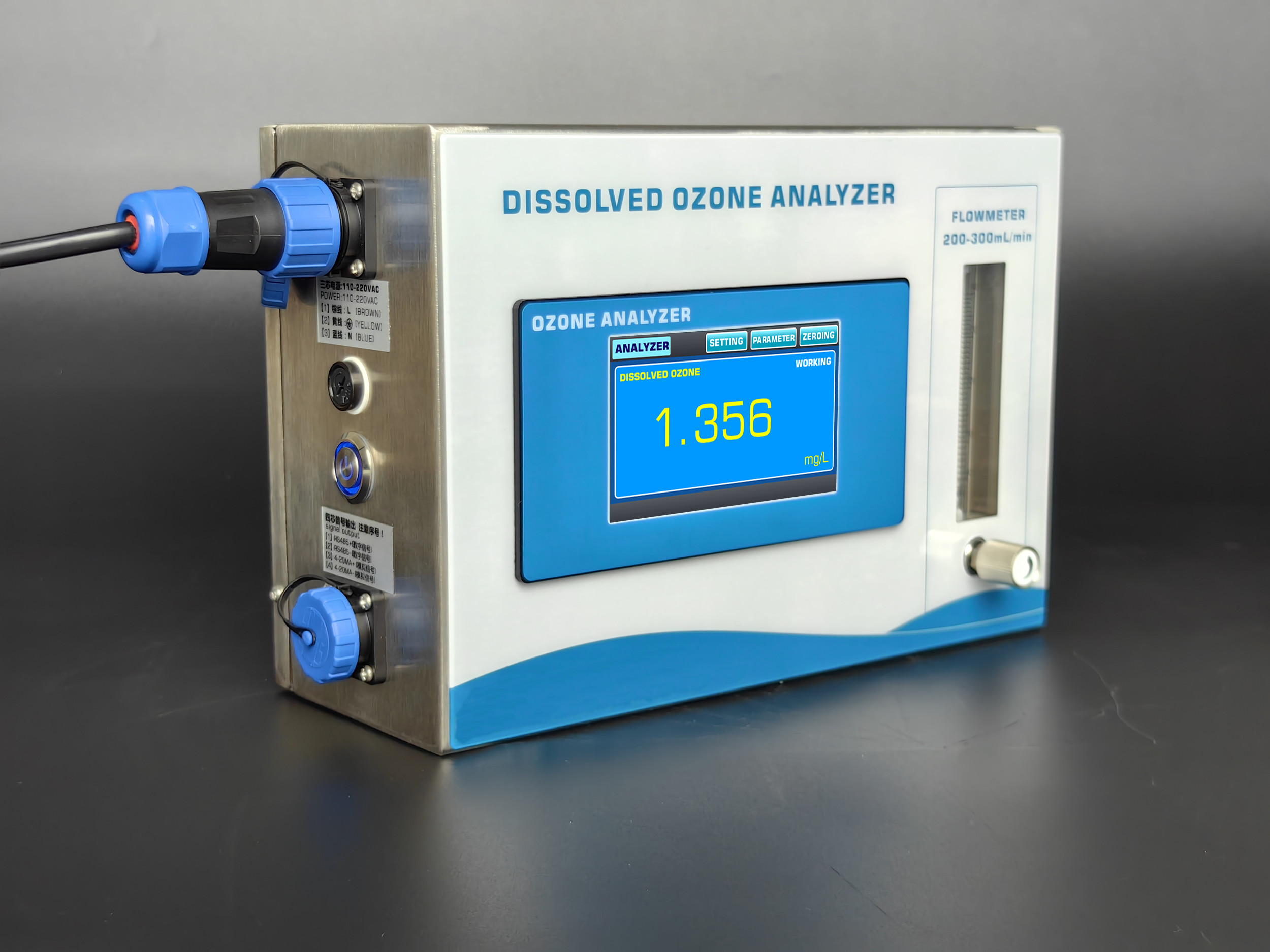

Data display: High definition color touch screen.
Output function: 4-20mA, RS485 communication.

​​

Measurement range	0-200ppm;
Measurement range	0-50ppm; 0-100ppm; 0-200ppm; 0-300ppm;
Light source lifespan	approximately 30000-50000 hours;
Sampling method	positive pressure sampling, negative pressure sampling. Note All sampling methods must be equipped with pumps, valves, and flow meters at the water outlet;
Ozone contact materials	quartz, polytetrafluoroethylene, PFA (sapphire, PTFE, PFA, FFPM);

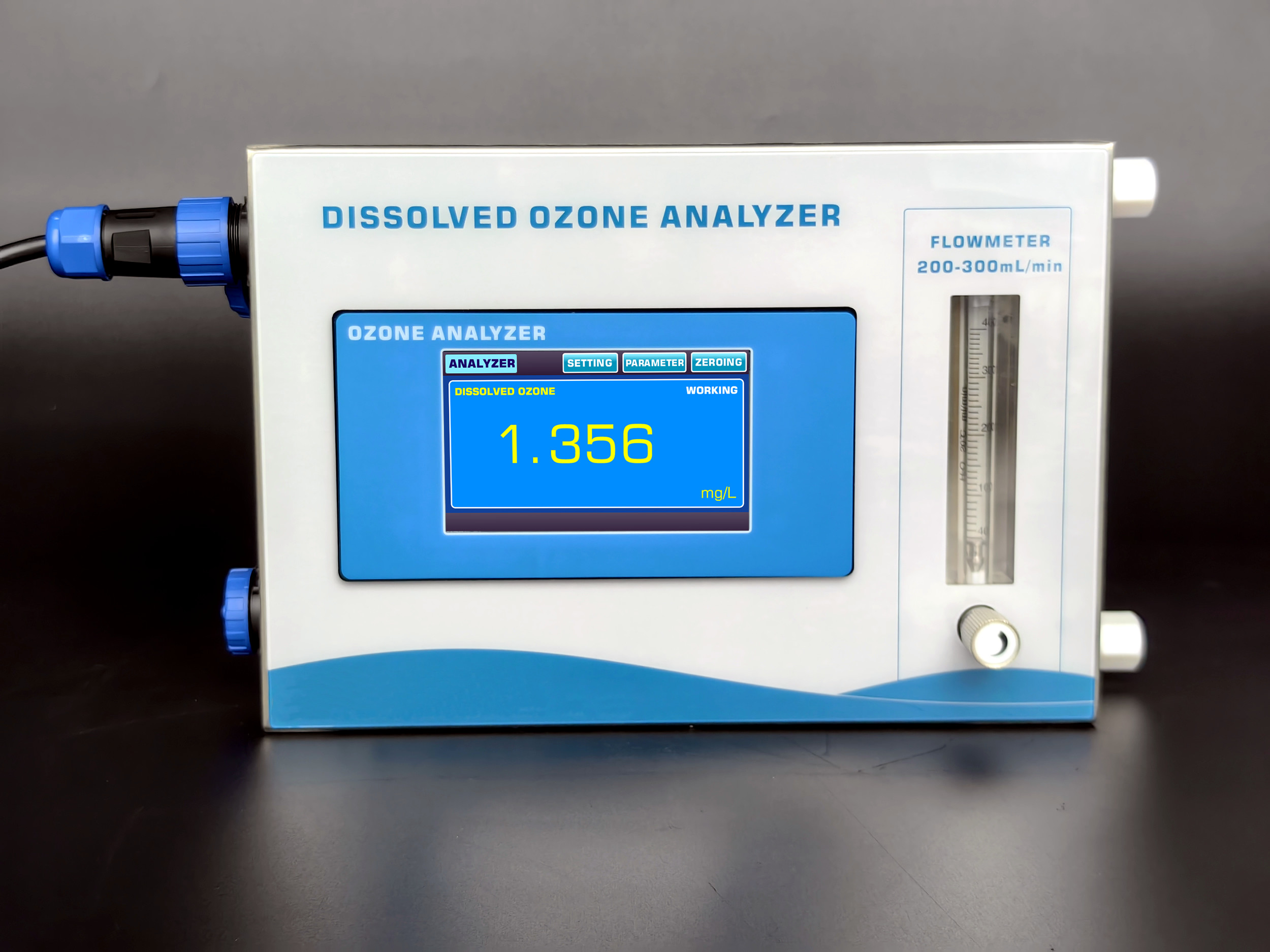

Display interface	high-definition 4.3-inch touch screen operation interface;
Display unit	mg/L, ppm optional;
Display resolution	0.01ppm;
Sampling flow rate	200-300mL/min;
Input pressure	<0.1MPa;
Concentration error	maximum 0.3% FS;
Linear error	maximum 0.2% FS;
Zero drift	<± 0.3%. FS;
Environmental temperature	0-50 ºC;
Interface method	Ferrule (PTFE) with optional 1/4 PFA interface;
Sampling caliber	Φ 6 (6mm * 4mm);
Communication method	RS-485;
Output mode	4-20mA (active);
Power supply	24VDC;
Size	150mm (height) * 200mm (width) * 80mm deep;
Weight	3KG
Free warranty	24 months (for the host);

​



Ozone generator manufacturers,

Municipal water industry,

Industrial wastewater industry,

Fine chemical industry,

Food and drinking water industry,

Space disinfection industry,

Swimming pool disinfection industry,

Flavor synthesis industry ,

other industries using ozone generators.
