MIC500-OZ Fixed Gas Detector For Continuous Gas Monitoring
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Portable Gas Detector | Type | Portable Multi Gas Anlyzer, Built-in Pump |
|---|---|---|---|
| Function | Measure Gas Purity | Sensor Type | Infrared Sensors Imported |
| Detecting Gas | Combustible Gas/H2S/CO/O2/H2S/H2 | Connection | Wi-Fi/USB Network |
| Customized Support | OEM, ODM, OBM | Weight | 2.5kg |
| Highlight | Fixed Gas Detection Systems,Continuous Gas Monitoring Fixed Gas Detector,OBM Fixed Gas Detector |
||
Product Description

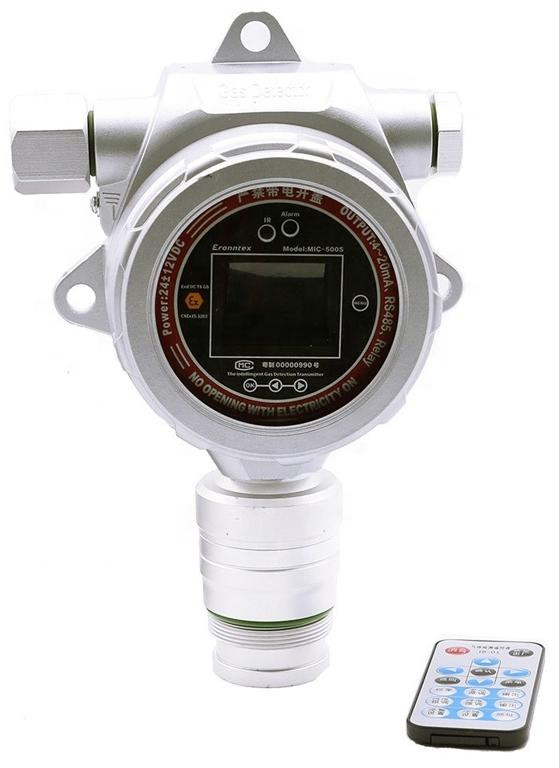

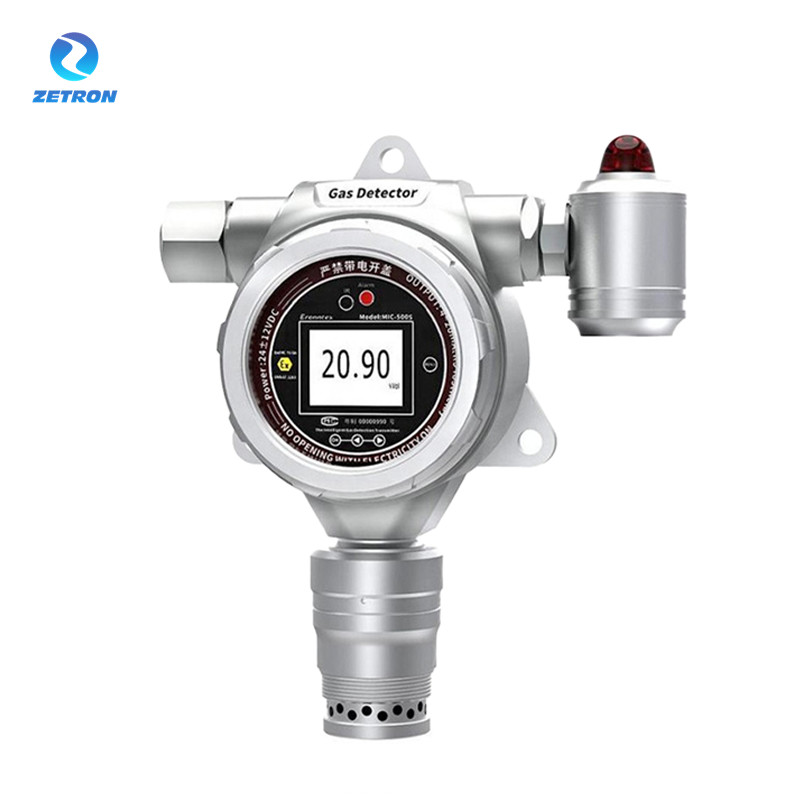

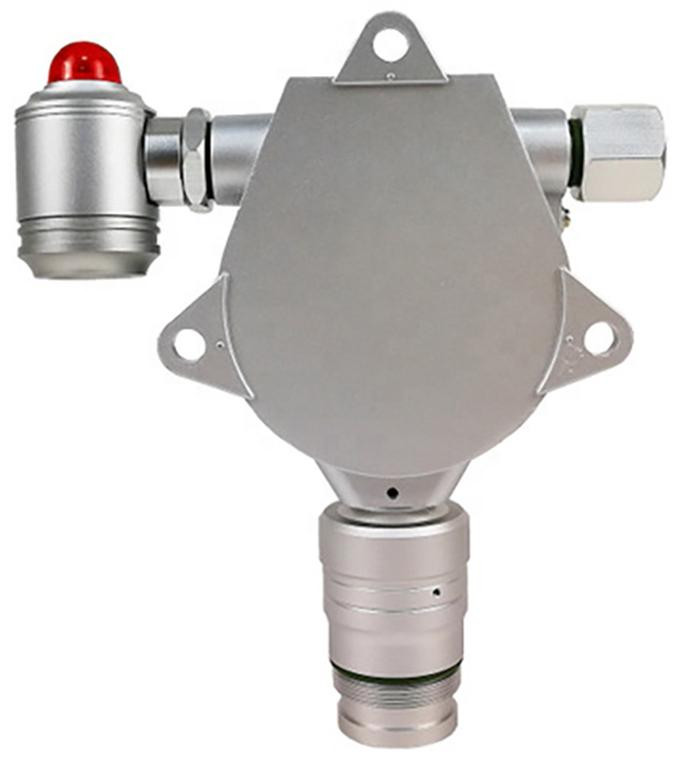

MIC500-OZ Fixed Gas Detector for Continuous Gas Monitoring
OVERVIEW
The MIC500 Series gas detector is designed for continuous 24-hour online monitoring of gas concentrations in the field, capable of detecting over 500 different gas types. Equipped with a 4-20 mA analog output, it can easily integrate into a Distributed Control System (DCS) to provide real-time alerts and ensure safety.
SPECIFICATION
| Gas | Toxic& Harmful Gas more than 500 types | Range | 0-50000PPM;
0-100%LEL ;
0-100%Vol.
other ranges can be customized
|
| Size | 210×170×85mm (L×H×W) | Weight | 1.8 Kg |
| Installation method | Pipeline Type
Wall Mounting Type
|
Display | 1.7-inch high-definition color screen |
| Environment | Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
|
Approvals | IP65; Exd Ⅱ CT6 |
| Accessories | Manual, qualification certificate, warranty card, outer packaging box | ||
| Working Voltage | 12 ~ 30VDC direct current, the standard power supply for single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A | ||
| Working Method | Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type. | ||
| Connecting Cable | Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth. | ||
| Optional items | Alarms; Wireless Transmission; Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
|
||
| Installation Type Accessories
(Optional configuration)
|
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe), stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...), rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m), vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters
|
||
APPLICATION
