Product Details
Flow Rate 2.83L/Min Dimension 135x120x60(mm)
Display Customizable,2.4 Inch OLED Weight 0.9kg
Highlight

Real-Time Data Logging Particle Counter

,

Reliable Online Particle Counter

,

Analysis Particle Counter
Leave a Message
Product Description

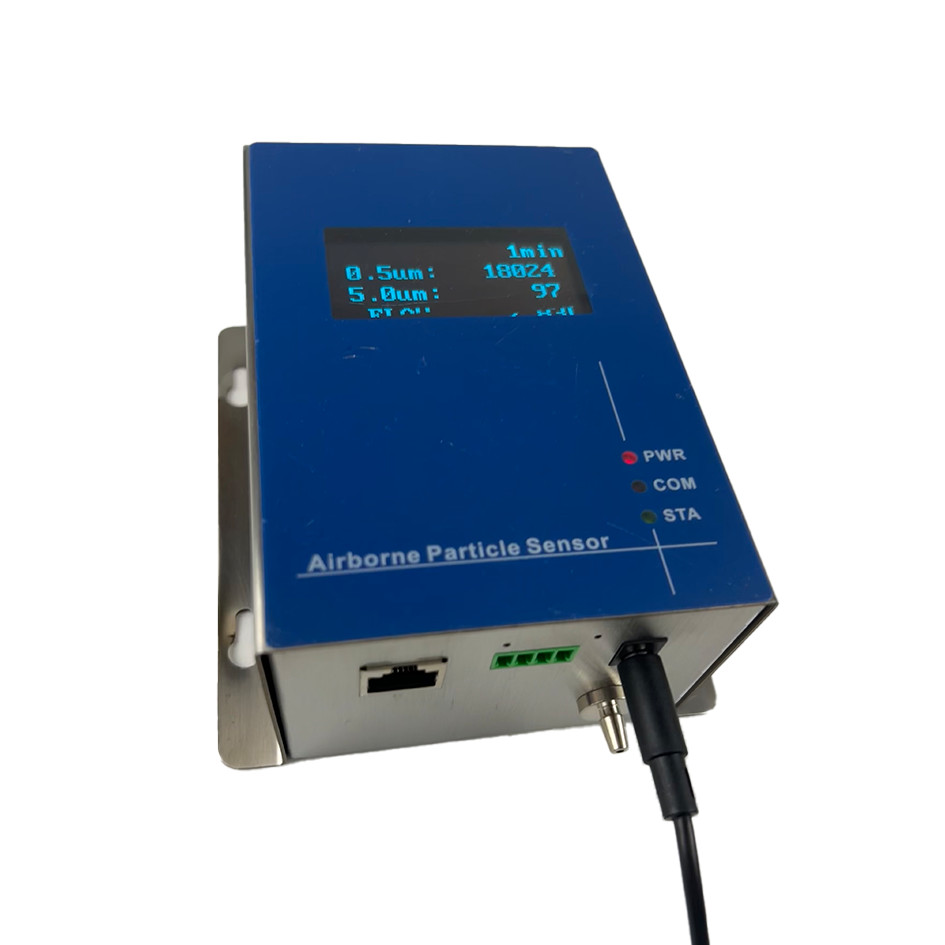

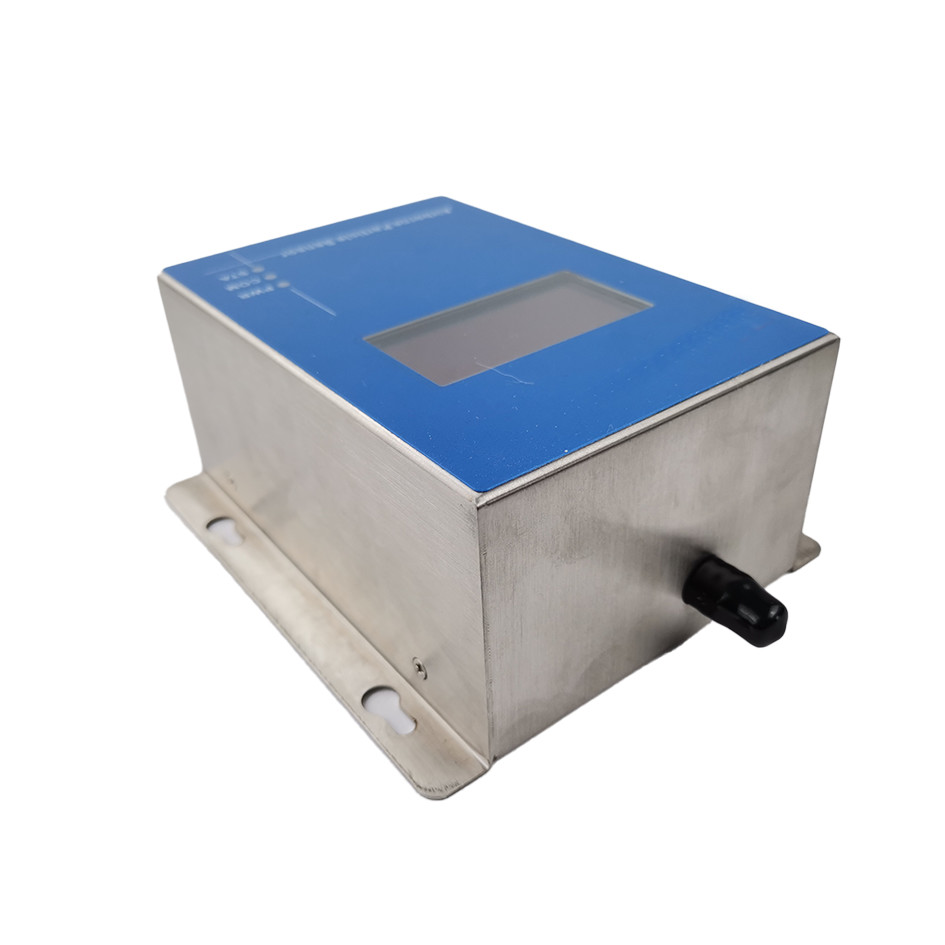

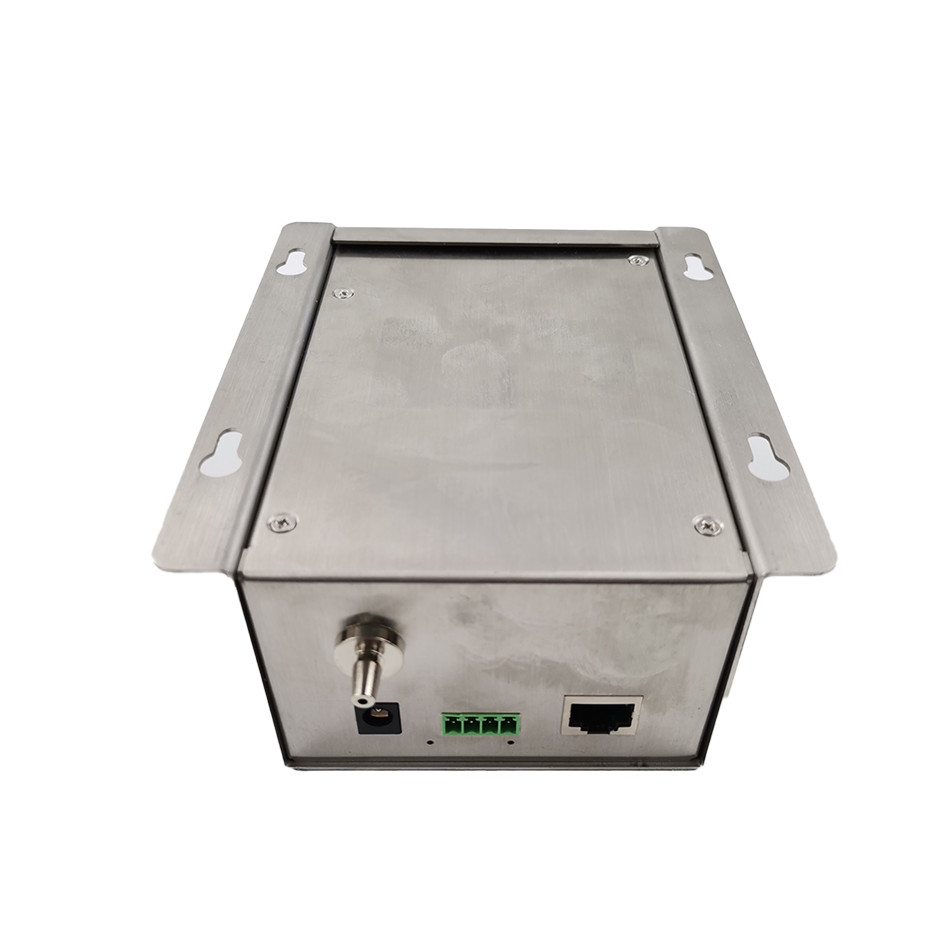

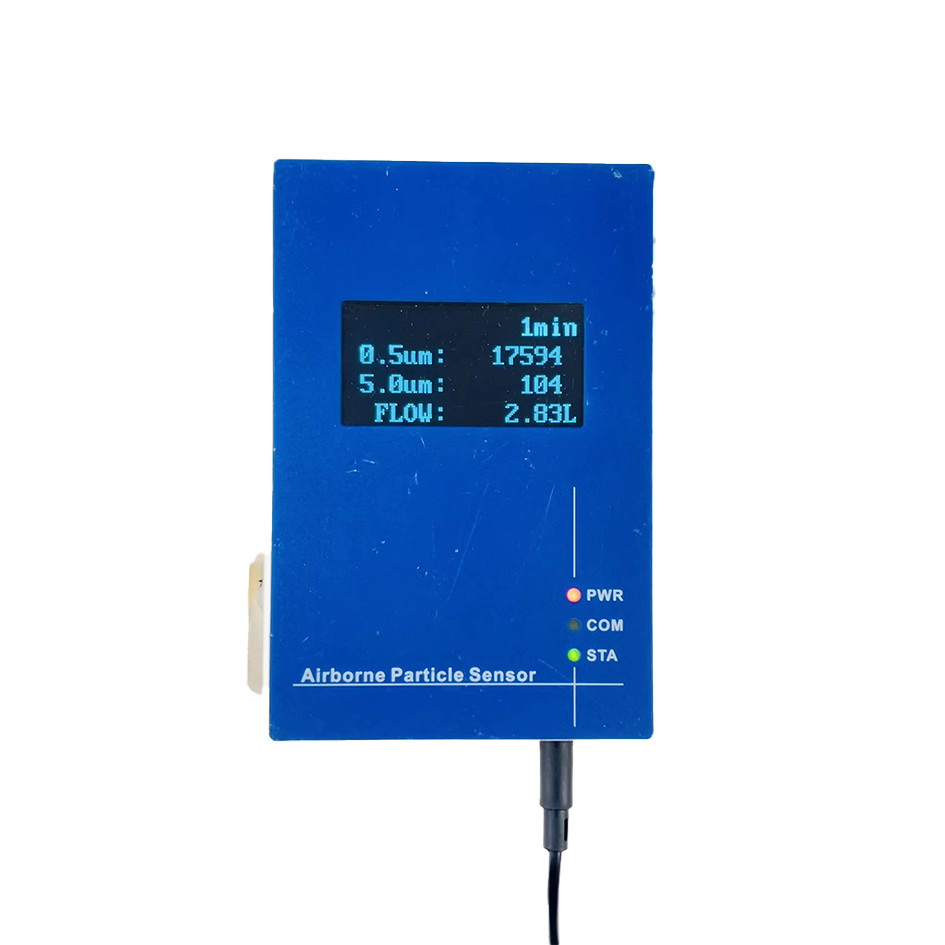

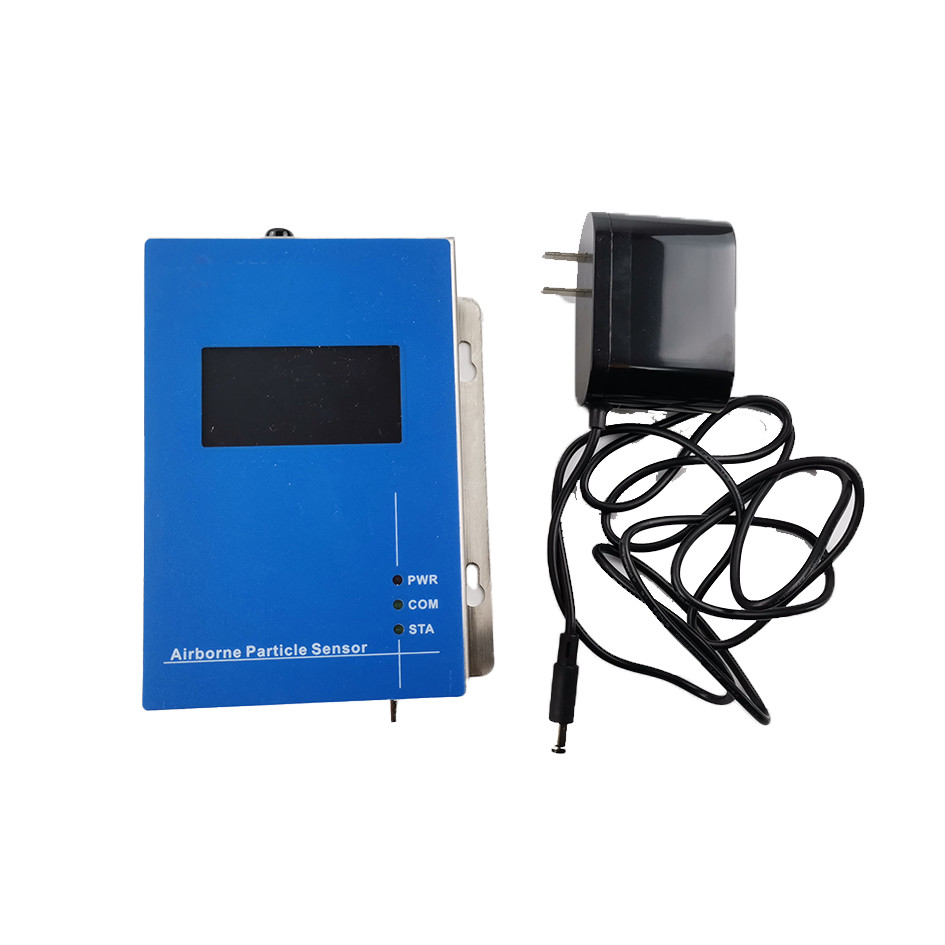

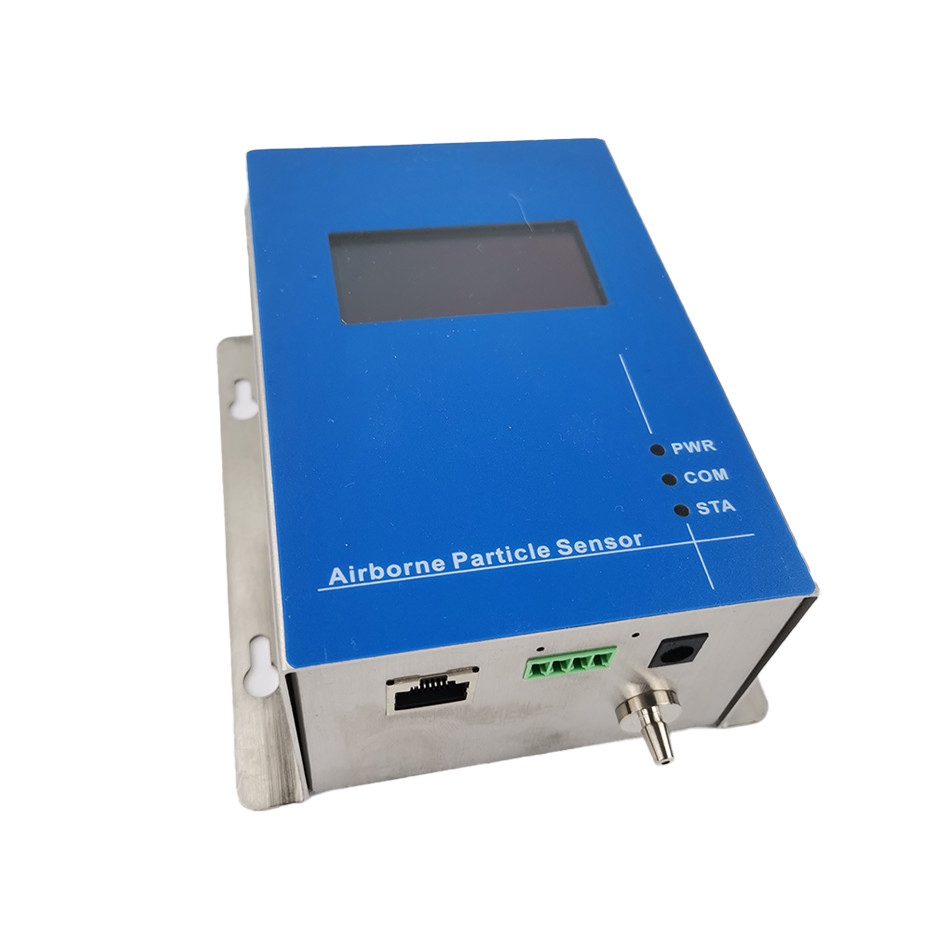

R210 Reliable Online Particle Counter for Real-Time Data Logging and Analysis
OVERVIEW

R210 Remote particle counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point.

R210 Remote Particle Counter meets the requirements of GMP, and ISO21501-4. If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.



FEATURE


1. Reasonable structure design, compact size, easy installation
2. Particle size channel: 0.3um-25um optional Note: CLJ-R200 optional 0.2μm
3. sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) optional
4. Three kinds of status indicator guide: power indicator; communication indicator; measurement status indicator
5. RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output methods can be selected
6. Using foreign original laser diode and vacuum pump, long service life
7. 2.4 inch OLED display, intuitive and clear reading
8. 316 stainless steel housing can be customized
9. Customizable explosion-proof sensor


TECHNOLOGY PARAMETER

​

Model R200 (2.83L/min) R210(2.83L/min) R310P
R300 (28.3L/min) R310 (28.3L/min) (28.3L/min)
Channel sizes Two Channels:0.5μm,5.0μm
Three Channels:0.3μm,0.5μm,5.0μm
Four Channels:0.3μm,0.5μm,1.0μm,5.0μm
Six Channels:0.3μm,0.5μm,1.0μm,2.0μm,3.0μm,5.0μm(Customizable)
Display X Customizable Display
2.4 inch OLED 2.4 inch OLED
Output RS485(modbus) RS485(modbus)or TCPIP(modbus)
(TCPIP has no extended output)
RS485(modbus) X 4-20mA(2channels);0-5V(2channels)
Extended Output Relay(2channels);WiFi;LORA
Power Supply 12-24V 12-24V(RS485(modbus))
12-24V,48V Standard POE(TCPIP(modbus))
Pump External pump Built-in pump(R210) Built-in pump
External pump(R310)
Weight &Size 0.2-0.3Kg 0.9Kg 2.6-2.8Kg
106.5*76*49(mm) 135*120*60(mm) 217*250*138(mm)

​
