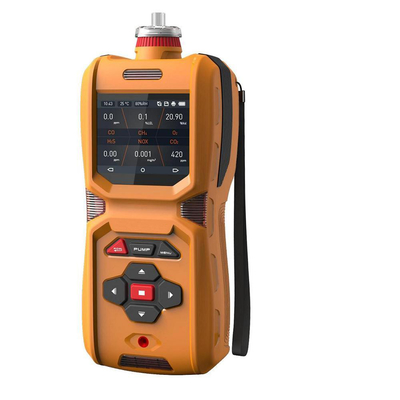

Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor

  • Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor
  • Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor
  • Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS600
Minimum Order Quantity 1 set
Price USD 446/set - 1298/set
Packaging Details 195*77*46mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor Type Portable Gas Detector
Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM Function Multi Gas Detector
Color Orange Data Storage 100, 000 Entries
Protection Level IP67 Alarm Mode Audible-visual Alarm,Vibration Alarm,Voice≥75dB@25cm
Exterior Dimensions 180×78×33mm (L×W×H) Weight 350g
Otional 4G, Lora,WiFi, Printer
Highlight

High Accurate Gas Leakage Detector

,

Semiconductor Gas Leakage Detector

,

NDIR Sensor Gas Leakage Detector
Leave a Message
Product Description



High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector in Semiconductor



OVERVIEW



Using infrared sensor technology, the SF₆ concentration detection error is ≤1%, and trace leaks are accurately identified to meet the compliance monitoring needs of high-demand scenarios such as electricity and chemical industry. Built-in powerful air pump supports 10-30 meters remote gas extraction, easily cope with complex spaces such as deep wells and underground pipe corridors in substations, and cover detection without blind spots. Non-dispersive infrared (NDIR) technology is not affected by temperature, humidity, and dust, and is suitable for high electromagnetic environments to ensure data reliability. Real-time monitoring of SF₆ leakage in GIS equipment to prevent insulation failure and arc risks. Monitoring of SF₆ process gas leakage in chip factories to protect clean room environment and personnel safety. Early warning of SF₆ diffusion in urban underground integrated pipe corridors and tunnel construction to support rapid ventilation decisions. Greenhouse gas emission monitoring station to track SF₆ concentration and generate emission reduction reports.



6 in 1 Portable Multi Gas Detector 0



FEATURES & BENEFITS



Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 1



①It is possible to simultaneously detect 1 ~ 6 types of gases, and the types for detection are more than 500 types. It is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space; and the purity of the gas leakage and various high concentration single gases with the background gas as nitrogen gas or oxygen gas.
②There are 7 gas units to display, and the units can be switched freely. Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.

③Built in pump, could fas detection and give accurate value at ±1%FS.



Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 2
Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 3
Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 4

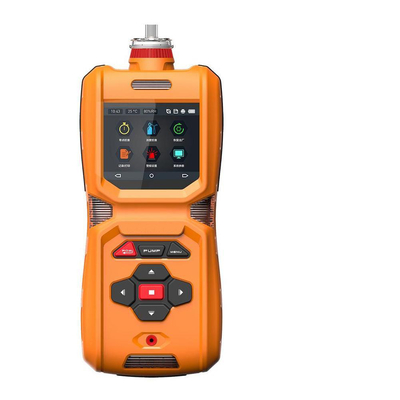

①2.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.
②Graphical display, and use the form of curve to reflect the trend of gas concentration changes in a certain period of time.
③Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch among three display modes.

Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 5
Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 6



①Standard configuration is the data storage capacity for 100, 000 entries; real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored. Large capacity can be customized.
②It is supported to use the local host to view, and delete data, and upload the data via USB, RS232 interface or infrared communication to the computer for data analysis or printing.
Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 7
Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 8
Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 9



1. Built-in humidity dust filter, preliminary treatment of the detection gas, so as to protect the equipment.
2. Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarm, vibration alarm, display screen visual alarm.Alarm types include: concentration alarm, under-voltage alarm, and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
3. Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.
4. Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.
5. Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.
Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 10
Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 11
Zetron MS600 High Accurate SF6 Sulfur Fluoride NDIR Sensor Gas Leakage Detector In Semiconductor 12
  • Optional Wifi, 4G, Lora wireless transfer, external printer
SPECIFICATION



Gases to be detected

Arbitrary combination of 1 ~ 6 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.

Optional configuration: temperature and humidity measurements.
Application scenarios All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution

0.01ppm or 0.001ppm (0 ~ 10 ppm);

0.01ppm (0 ~ 100 ppm),

0.1ppm (0 ~ 1000 ppm),

1ppm (0 ~ 10000 ppm or more),

0.01 mg/l (0 ~ 200 mg/l),

0.1% LEL,

0.01%,

0.001% Vol
Detection principle Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error ≤±1% F.S (other precision levels can be customized)
Linearity ≤±1% Repeatability ≤±1% Uncertainty ≤±1%
Response time T90≤20 seconds Recovery time ≤30 seconds
Working environment Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Temperature and humidity measurement Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply 3.6VDC, 6000mA high capacity rechargeable polymer battery
Display mode 2.5-inch high-definition color screen
Detection mode Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min, three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
Protection level IP67
Explosion-proof type Intrinsically safe type
Explosion-proof mark Exia II CT6
Exterior dimensions 180×78×33mm (L×W×H)
Weight 350g
Standard accessories Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter
Optional items Temperature and humidity measurement function, 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter), 0.4 meter stainless steel sampling handle (with dust filter, not retractable), high temperature sampling and cooling filter handle, high temperature humidity pretreatment system, multiple humidity dust filter, hanging rope, CD-ROM (upper level computer communication software), SD card storage, wireless data communications, external mini wireless infrared printer
Detection mode Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min, three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
Protection level IP67
Explosion-proof type Intrinsically safe type
Explosion-proof mark Exia II CT6





APPLICATION


All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
