MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer With Remote Sensor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer With Remote Sensor | Type | Fixed Type |
|---|---|---|---|
| Function | Measure Residue | Sensor Type | EC |
| Detecting Gas | Combustible Gas/H2S/CO/O2/H2S/H2 | Connection | 4-20mA, RS485, Hart, Relay |
| Customized Support | OEM, ODM, OBM | Weight | 2.5kg |
| Housing | Aluminum, 316L SS | ||
| Highlight | PH3 Residual Gas Analyzer,Fixed Residual Gas Analyzer,Remote Sensor Residual Gas Analyzer |
||
Product Description

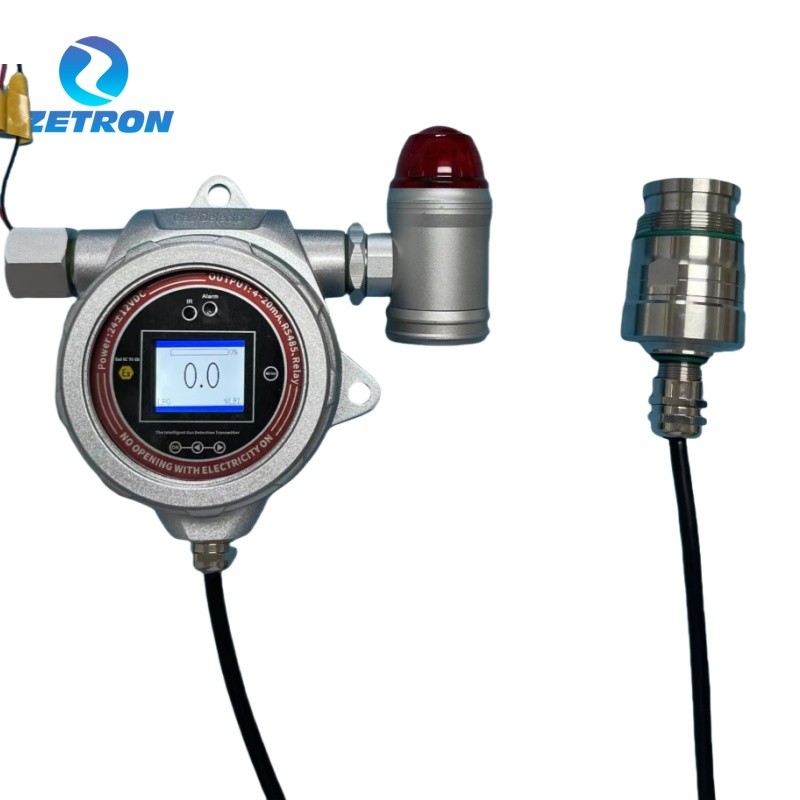

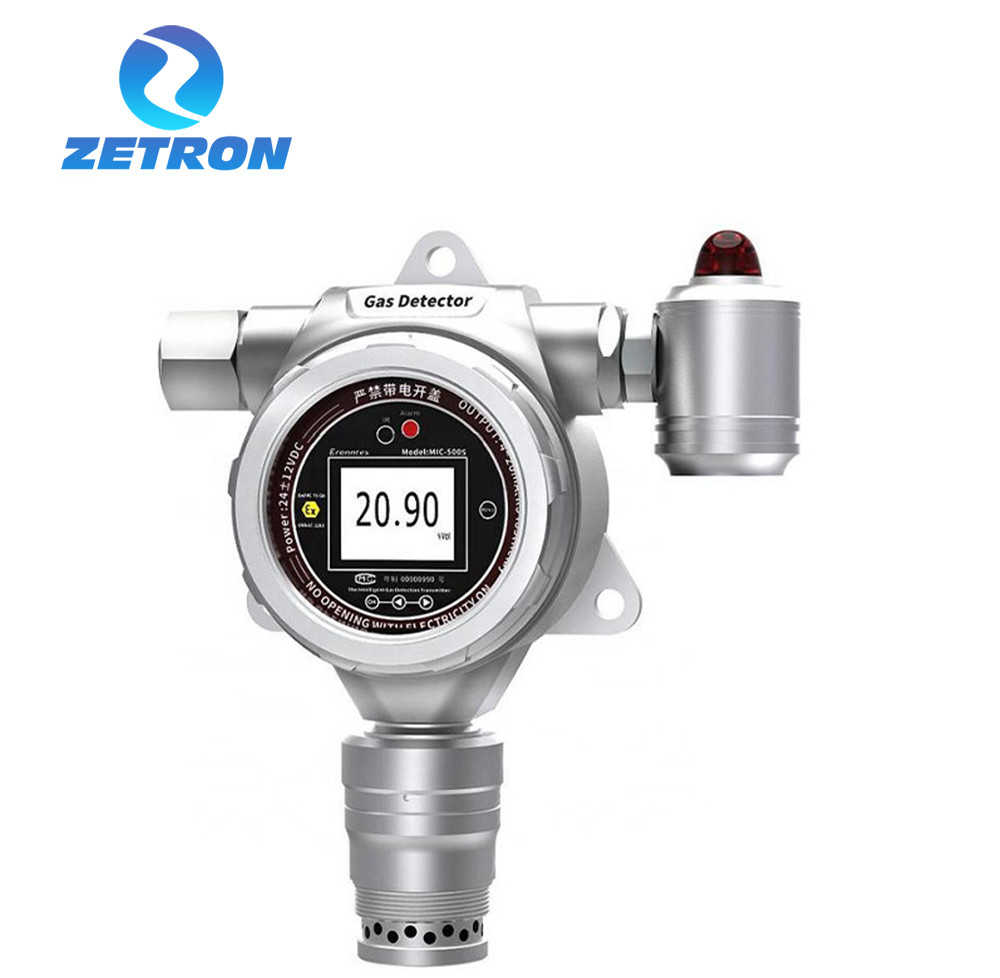

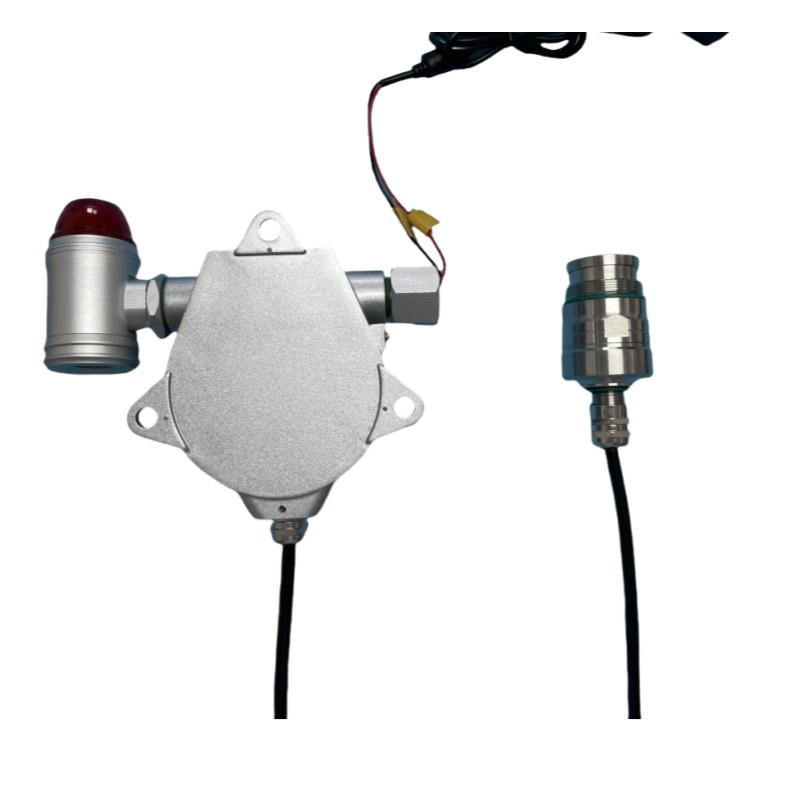

MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer with Remote Sensor
OVERVIEW
Using electrochemistry, the detection accuracy reaches ±3%FS, and it can measure the residual concentration of PH₃, meeting the needs of trace leakage monitoring in scenarios such as grain warehouse fumigation and chemical production. Real-time monitoring of the residual concentration of PH₃ during fumigation operations, split design to protect the safety of workers. Rapid screening of residual gas in the warehouse after fumigation, linkage exhaust system to accelerate purification, ensure environmental safety.
SPECIFICATION
| Gas | Toxic& Harmful Gas more than 500 types | Range | 0-50000PPM;
0-100%LEL ;
0-100%Vol.
other ranges can be customized
|
| Size | 210×170×85mm (L×H×W) | Weight | 1.8 Kg |
| Installation method | Pipeline Type
Wall Mounting Type
|
Display | 1.7-inch high-definition color screen |
| Environment | Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
|
Approvals | IP65; Exd Ⅱ CT6 |
| Accessories | Manual, qualification certificate, warranty card, outer packaging box | ||
| Working Voltage | 12 ~ 30VDC direct current, the standard power supply for single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A | ||
| Working Method | Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type. | ||
| Connecting Cable | Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth. | ||
| Optional items | Alarms; Wireless Transmission; Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
|
||
| Installation Type Accessories
(Optional configuration)
|
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe), stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...), rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m), vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters
|
||
