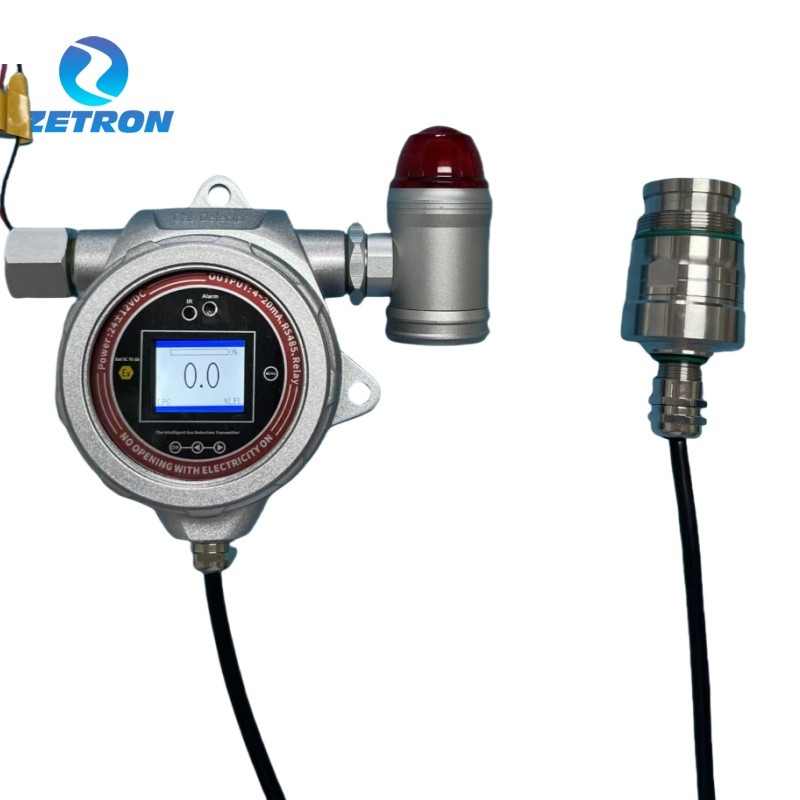

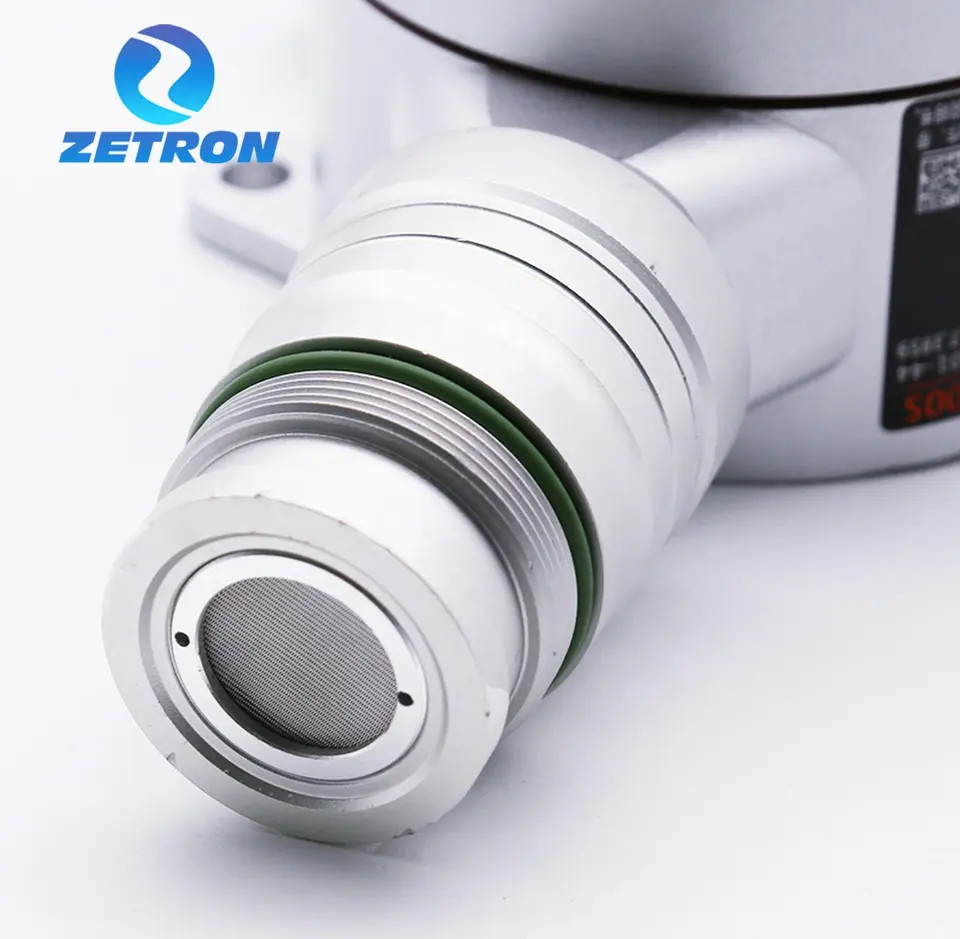

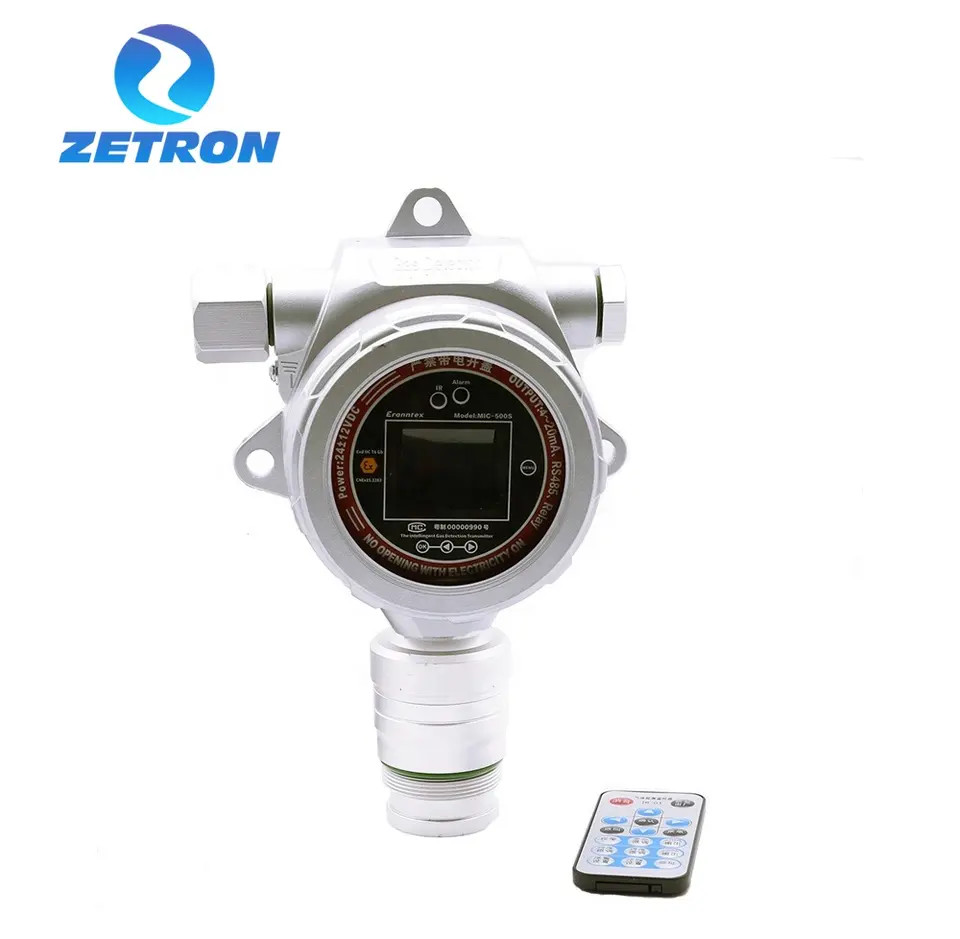

MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm

  • MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm
  • MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm
  • MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC500
Minimum Order Quantity 1 set
Price USD 890/set - 7298/set
Packaging Details 230x210x120 mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector With Alarm Type Fixed Type
Function Measure Gas Purity Sensor Type Imported Electrochemical Sensor
Detecting Gas Combustible Gas/H2S/CO/O2/H2S/H2 Connection 4-20mA, RS485, Hart, Relay
Customized Support OEM, ODM, OBM Weight 2.5kg
Highlight

MIC500S Toxic Gas Detector

,

MIC500S Fixed Gas Detector
Leave a Message
Product Description

MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm

OVERVIEW



Hydrogen sulfide (H₂S) is colorless and highly toxic. When the concentration exceeds the standard, it can threaten life and may even cause explosion accidents! Traditional portable detectors rely on manual inspections and have monitoring blind spots. The  MIC500S online H₂S detector, with imported high-precision electrochemical sensors as the core, monitors in real time 24 hours a day, builds a safety net without blind spots, and kills hidden dangers in the bud. In refineries, natural gas processing plants, chemical plants and other scenes, H₂S often accompanies oil and gas leaks and escapes during the reaction process. Detectors installed in pipelines, storage tanks, and production workshops can monitor gas concentrations in real time and link ventilation systems to avoid poisoning and explosion risks.



MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 0MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 1MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 2MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 3MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 4MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 5MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 6MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 7MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 8
MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 9



SPECIFICATION





Gas Toxic& Harmful Gas more than 500 types Range 0-50000PPM;
0-100%LEL ;
0-100%Vol.
other ranges can be customized
Size 210×170×85mm (L×H×W) Weight 1.8 Kg
Installation method Pipeline Type
Wall Mounting Type
 Display 1.7-inch high-definition color screen
Environment Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
 Approvals IP65; Exd Ⅱ CT6
Accessories Manual, qualification certificate, warranty card, outer packaging box
Working Voltage 12 ~ 30VDC direct current, the standard power supply for single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Working Method Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
Connecting Cable Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
Optional items Alarms; Wireless Transmission; Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
Installation Type Accessories
(Optional configuration)
 Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters




APPLICATION



MIC500S Atex Certificate Fixed H2S Hydrogen Sulfide Toxic Gas Detector with Alarm 10
