MIC200-UVIR3 High Reliability Infrared UV IR Flame Detection 50m Long Distance With Wide Viewing Angle 120 Degree

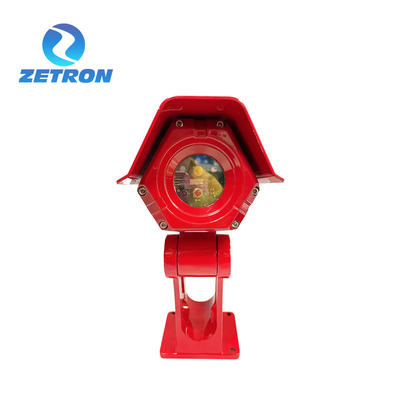

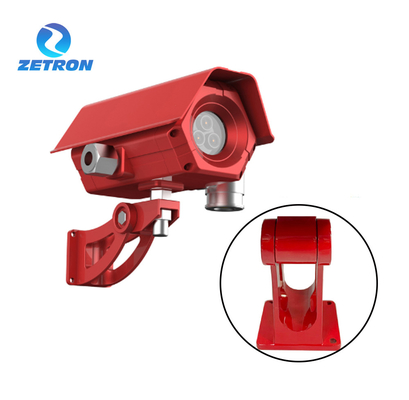

MIC200-UVIR3 Infrared Flammable Detector

The MIC-200-UVIR3 flame detector combines the latest UV and dual IR detection technology to provide fast, accurate and reliable fire detection with improved immunity to false light sources and effective flame detection over longer distances. Depending on the user's settings for sensitivity and delay time, the MIC-200-UVIR3 detector can effectively eliminate false alarms and is suitable for applications in high-risk industrial environments. In addition to general applications, the MIC-200-UVIR3 detector is particularly suitable for fire suppression in railway locomotives, explosion suppression in military armoured vehicles and ships, and hydrogen combustion flames. the MIC-200-UVIR3 detector's explosion-proof housing is securely and accurately mounted both indoors and outdoors, its high brightness LED indicates the detector's status, and its automatic test function ensures that the detector is fully functional at all times.

• Built-in high-performance microprocessor;
• Excellent anti-radio frequency and electromagnetic interference performance;
• Radially symmetrical and bonded window heating delivers good low-temperature performance
• Fully temperature-compensated solid-state detectors
• Three-wire current ring and relay are optional
• Low power consumption in all conditions
• Patent signal processing algorithms to minimize the possibility of false positives

• Offshore platforms

• Downstream chemical processing plants

• Large storage areas & buildings
• Gas transport and pipelines
• Perimeter detection
