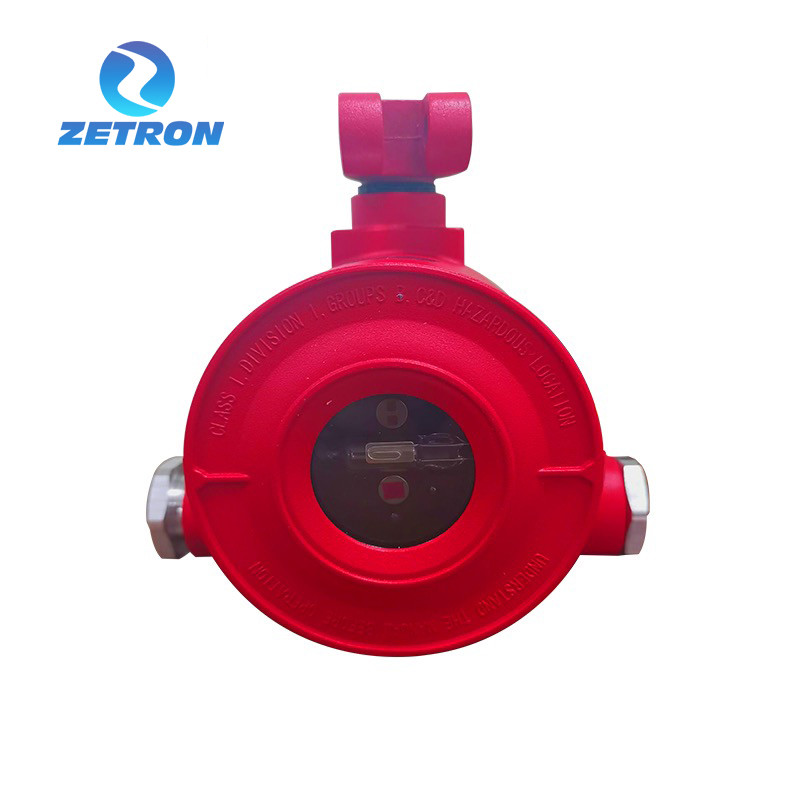

MIC-200-FD705EX 60m IR UV Fire Detector Ultraviolet Protect Level IP66

  • MIC-200-FD705EX 60m IR UV Fire Detector Ultraviolet Protect Level IP66
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MIC-200-FD705EX
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Fixed Flame Detector Maximum Detection Angle 120°
Voltage 24 VDC(18~30 VDC ) Maximum Detection Range 60m
Size 119mm* 141mm* 120mm (L*H*W) Weight 3(kg)
Highlight

ultraviolet ir fire detector

,

60m ir fire detector

,

60m ultraviolet infrared flame detector
Leave a Message
Product Description

MIC200-FD705EX Infrared Flammable Gas Detector

OVERVIEW



The detector AW-FD705EX combines the latest 4 spectral ranges of ultraviolet and infrared detection technologies to provide accurate and reliable fire detection, and the patented signal processing algorithm can eliminate false alarms against wrong light sources. For high reliability and strong anti-interference, it can be applicable In smokeless liquid and gas fireplaces (Just like Refinery, Platform, Tank Farm, Hangar, and so on).



SPECIFICATION



Model
MIC200-FD704EX
Main Voltage
24 VDC(18～30 VDC )
Operating Current
(Relay) Monitor: ≤25mA Alarm: ≤35mA
(Current Loop) Monitor: ≤30mA Alarm: ≤45mA
Maximum Detection Angle and Range
120°60m
Spectrum Range
UV(185-260nm)IR (3.8um/4.3um/5.0um)
Ex-Atex Protection Level
Exd IIC T6 Gb/Ex tD A21 T80°C
Protection Class
IP66/IP67
Temperature range
Temperature range: -40 to 70°C (-40~158°F, Enhance Type)
Humidity
0 to 96% RH, non-condensing
Materials and Colors
Stainless steel ,Red
Electrical Interface
RS-485/RS-232；HART
Size(L*W*H)
119mm* 141mm* 120mm
Weight About
3 Kg


MIC-200-FD705EX 60m IR UV Fire Detector Ultraviolet Protect Level IP66 0

MIC-200-FD705EX 60m IR UV Fire Detector Ultraviolet Protect Level IP66 1

MIC-200-FD705EX 60m IR UV Fire Detector Ultraviolet Protect Level IP66 2MIC-200-FD705EX 60m IR UV Fire Detector Ultraviolet Protect Level IP66 3MIC-200-FD705EX 60m IR UV Fire Detector Ultraviolet Protect Level IP66 4MIC-200-FD705EX 60m IR UV Fire Detector Ultraviolet Protect Level IP66 5





APPLICATION



The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.



MIC-200-FD705EX 60m IR UV Fire Detector Ultraviolet Protect Level IP66 6
