150m Explosion Proof Rmld Leak Detection Zetron P20

  • 150m Explosion Proof Rmld Leak Detection Zetron P20
  • 150m Explosion Proof Rmld Leak Detection Zetron P20
Place of Origin China
Brand Name Zetron
Certification CE
Model Number P20
Minimum Order Quantity 1 piece
Price USD 2995/set- 2999/set
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Laser Methane Leak Detector Working Humidity 0~90%RH
Measuring Range 0ppm*m-50000 Ppm*m Protection Level IP 68
Size 140mm*140mm*265mm Weight 6kg
Name Zetron P20 Scanning Monitoring System Laser Remote Methane Gas Leakage Detector
Highlight

explosion proof rmld leak detection

,

150m rmld leak detection

,

explosion proof methane laser detector
Leave a Message
Product Description

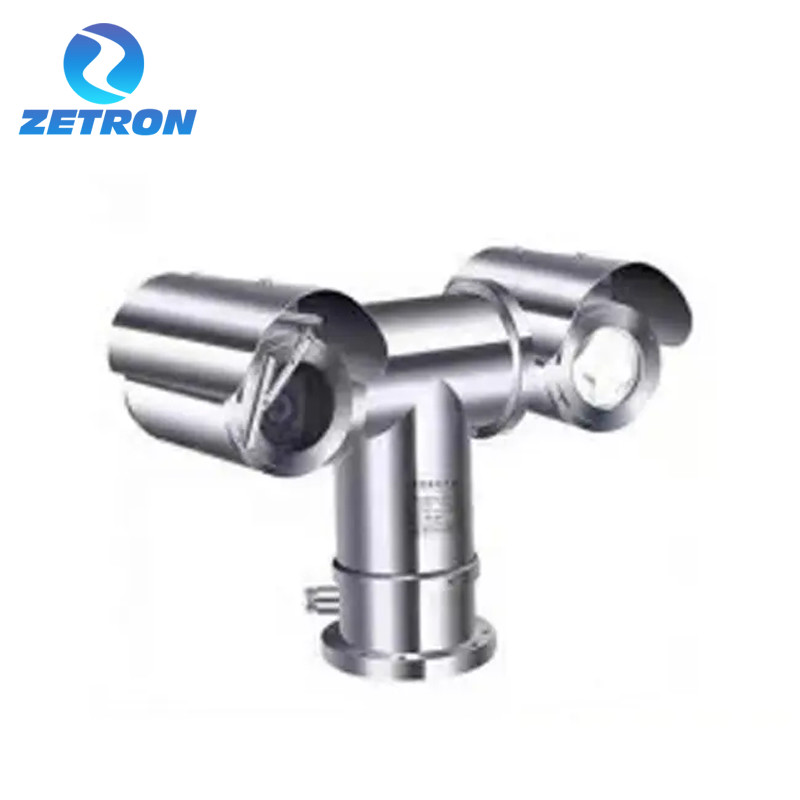

Zetron P20 Laser Methane Leakage detector Scanning monitoring system

OVERVIEW

P20 has a maximum detection distance of 150m.
With 360° PTZ device, the detection area reaches to 70,000 square meters which realize a large-scale and uninterrupted leakage detection.
With advanced preset point or curve cruise functions, P20 can easily get the detection laser close to the inspection targets such as valves and pipelines.
P20 has the response time of 0.05s.
The detection performance can still be guaranteed under the condition of high linear velocity of "scanning" the target at.
The patented PTZ control technology greatly enhances the PTZ operation accuracy which ensures the deviation <0.1°
Benefit from networked data connection, multiple monitor can be managed in the same LAN.
Redundant, localized inspection and alarm strategy, the inspection will not be interrupted, even if the data network is out of work.

FEATRURES

・Explosion-proof grade update to Ex ib IlB T4
・Highly reliable gimbal with longer life time
・Introduce closed-oop control logic to greatly improve control accuracy
・Power consumption saved to 20W
・4 times smaller in size
・6 times lighter in weight
・Plug and operate with easier configuration
・New optional accessories: 5G communicationunit and photovoltaic / solar power supply

SPECIFICATION



Model P20 Detection Targets Methane(CH4)
Measuring Principle TDLAS Testing Laser Rating Class I
Concentration Range 0~50,000 ppm ·m Directing Laser Rating Class IIIR
Response Time 0.05s Explosion-proof Grade Ex ib IIB T4 Gb
Max Detection Distance 150m Protection Level IP68
Data Interface RS-485(ModBus TCP/ RTU)/ Ethernet Gimbal Range Horizontal 360°& Vertical +/-90°
Operating Temperature -40℃~+70℃ Operating Humidity <90%RH
Power Supply 220VAC Power Consumption 20W
Weight 6 kg Size 140×140 × 265 mm
Device Shell Material Stainless Steel Optional Accessories 5G Unit / Solar Power Supply







APPLICATION



Versatile and practical, this device is ideal for short-term testing of air quality in buildings, workplaces and on the roadside. With a very fast response time, it delivers accurate readings and can locate sources of airborne dust and fumes even at very low concentrations.
