Zetron Oxygen Detector Sensor O2 Sensor O2-A2 High Performance

  • Zetron Oxygen Detector Sensor O2 Sensor O2-A2 High Performance
Place of Origin UK
Brand Name Alphasense
Certification CE
Model Number O2-A2
Minimum Order Quantity 1
Payment Terms L/C, D/A, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Range High Performance Leak Free O2 Sensor Sensitivity < 0.1% CO2 Sensitivity
Response Time T90 T90 Of Less Than 15 Seconds Temperature Range -30 To 40 ℃
Pressure Range 80 To 120 KPa Humidity Range 15 To 85% Rh Continuous
Weight < 13 G
Highlight

Zetron oxygen detector sensor

,

High Performance oxygen detector sensor

,

leak free oxygen detector sensor
Leave a Message
Product Description

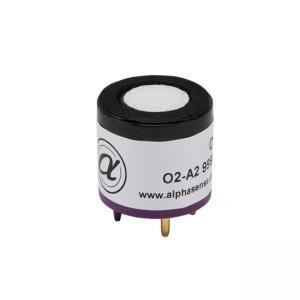

O2-A2 Oxygen Sensor (O2 Sensor) Description
Alphasense Oxygen sensors use capillary flow control.
Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.
Standard galavanic sensors use lead for greatest reliability but fixed lifetime.
Sensors are available in three sizes:
A: 20mm diameter, the industry standard size for portable gas detectors
C: 20mm diameter, extra height allows additional filter material when measuring combustion gases
G: Miniature, proven long-term performance. The sensors are designed for the next generation of portable gas detectors. Part of the Alphasense ‘D‘ family.



O2-A2 Oxygen Sensor (O2 Sensor) Features

– High-performance leak-free O2 Sensor
– T90 of less than 15 seconds
– < 0.1% CO2 Sensitivity
<span font-size:15.2px;background-color:#ffffff;"="" style="color: rgb(33, 37, 41);">– Up to 99% humidity resistance



O2-A2 Oxygen Sensor PERFORMANCE
Output μA @ 20.9% O2 80 to 120
Response time t90 (s) from 20.9% to 0% O2 < 15
Zero current μA in N2 < 2.5
Linearity % O2 deviation @ 10% O2 0.6

O2-A2 Oxygen Sensor LIFETIME
Output drift % change in output @ 3 months < 1
Operating life months until 85% original output of 20.9% O2 > 24

O2-A2 Oxygen Sensor ENVIRONMENTAL
Humidity Sensitivity % O2 change: 0% to 95% rh @ 40℃ < 0.7
CO sensitivity % (change O2 reading) / % CO2 @ 5% CO2 0.1
Pressure sensitivity (% change of output)/(% change of pressure) @ 20kPa < 0.1

O2-A2 Oxygen Sensor KEY SPECIFICATIONS
Temperature range ℃ -30 to 55
Pressure range kPa 80 to 120
Humidity range % rh non-condensing (0 to 99% rh short term) 5 to 95
Storage period months @ 3 to 20℃ (store in sealed pot, open circuit) 6
Load resistor Ω (recommended) 47 to 100
Diameter mm (including label) 20
Height mm (including foam ring) 17.4
Weight g < 16


Matched Transmitter board for O2-A2 O2 Sensor

Alphasense 4-20m Analogue Transmitter Board
• Factory calibration, custom-set for immediate use
• Wide operating voltage range
• Low RFI susceptibility
