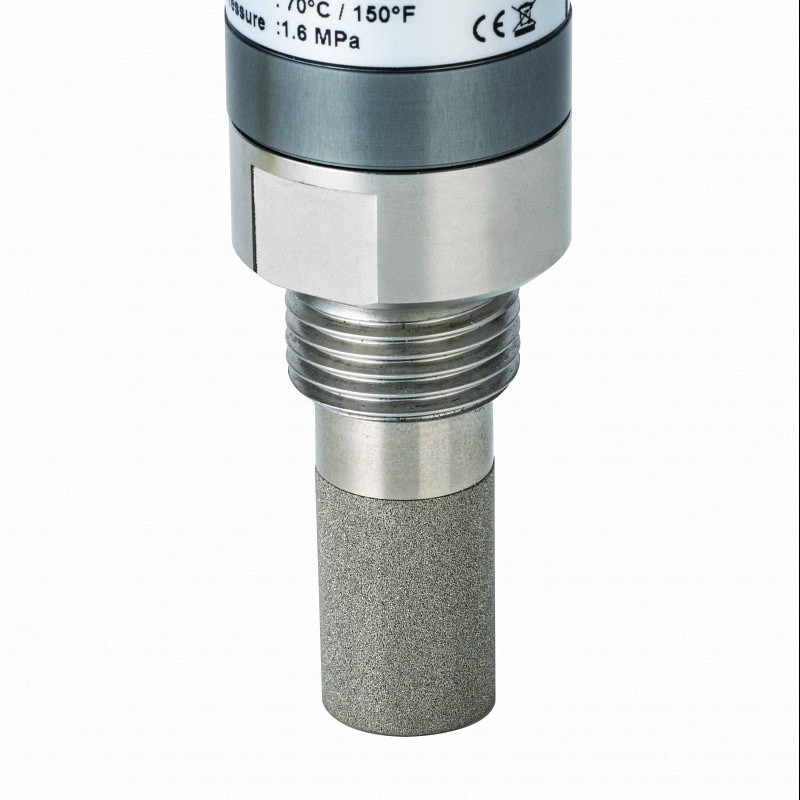

SUTO S211 Aluminum Alloy Dew Point Sensor For Desiccant Dryers
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Dew Point Transmitters | Model Number | S211 |
|---|---|---|---|
| Dew Point Sensor | Polymer | Dew Point Range | -60~+20 °C Td |
| Temperature Rnage | -30~+70 °C | Pressure Range | 0~1.6 MPa |
| Materials | Aluminum Alloy | Classification | IP65 / CE |
| Measured Gases (Medium) | Air, Argon, O₂, N₂, CO₂ | Supply Voltage | 15 ... 30 VDC |
| Weight | 180 G | ||
| Highlight | SUTO S211 Dew Point Sensor,Aluminum Alloy Dew Point Sensor,Desiccant Dryers Dew Point Sensor |
||
Product Description
S211 Dew Point Sensor for Desiccant Dryers (-60… +20 °C Td)
OVERVIEW
The SUTO S211 Compact Dew Point Sensor provides an affordable and reliable dew point monitoring solution for industrial applications in accordance to ISO 8573-1. It’s compact design and great features makes it the perfect choice for dew point measurements in desiccant dryers.
FEATURES
The S211 with a range of -60 ... +20 'c Td isthe ideal tool for monitoring adsorption dryers.
Redesigned for our customers’ needs
The new SUTO Dew Point Sensors have been redesigned from ground up, integrating the latest technology and all our experience. The sensors are fully backwards compatible to existing compressed air and gas installations.
Dew Point, Pressure and Temperature
The sensor is equipped with an integrated pressure sensor, combining dew point, temperature and pressure monitoring into a single instrument.
User-friendly Outputs
The S211 Dew Point Sensor is perfectly suited to be integrated into process controls or high-level monitoring systems. Various output options are offered for a seamless integration: 4 … 20 mA 2-wire + SDI; 4 … 20 mA 3-wire + SDI; 4 … 20 mA 3-wire +; Modbus/ RTU. The S211 is easily connected to the SUTO S330/331 Displays / Data Logger as well as the SUTO Portable Data Logger S551.
Optional OLED Display
The optional OLED display directly mounted on the S211 provides real-time values on-site. The display can be easily rotated by 340 ° to adjust to any application.
Long Lasting Materials
The main body is made from high class aluminum alloy with a soft finish. The process connection material is 1.4301 (SUS 304) stainless steel, made to last forever.
The top cover is made from aluminum with the same quality as the main body.
APPLICATION SCENES
Dew point measurement in desiccant dryer applications where dew points down to -60 °C Td must be measured
SPECIFICATION
|
MEASUREMENT |
|
|
Dew Point |
|
|
Accuracy |
± 1 °C Td (0 ... 20 °C Td) |
|
Selectable units |
°C, °F, bar(g), MPa(g), psi(g), % rH, g/m³, |
|
Measuring range |
-60 ... +20 °C Td |
|
Repeatability |
0.25 % from measured value |
|
Sensor |
Polymer |
|
Response time (t90) |
0 °C Td ➞ -60 °C Td ≤ 280 sec |
|
Pressure |
|
|
Accuracy |
0.5 % FS |
|
Measuring range |
0 ... 1.6 MPa |
|
Sensor |
Piezo resistive type |
|
Temperature |
|
|
Accuracy |
+/- 0.3 °C |
|
Measuring range |
-30 ... +70 °C |
|
Sensor |
Pt100 |
|
Reference conditions |
|
|
Selectable conditions |
20 °C 1000 mbar (ISO1217), 0 °C 1013 mbar (DIN1343) Freely adjustable |
|
SIGNAL INTERFACE & SUPPLY |
|
|
Analog output |
|
|
Signal |
4 ... 20 mA 2-wire or |
|
Scaling |
4 mA = -60; 20 mA = +20 °C Td; freely adjustable |
|
Load |
250R |
|
Update rate |
3/sec |
|
Fieldbus |
|
|
Protocol |
Modbus/RTU |
|
Update rate |
1/sec |
|
Supply |
|
|
Voltage supply |
15 ... 30 VDC |
|
Current consumption |
2-wire: 4 ... 20 mA |
|
GENERAL DATA |
|
|
Configuration |
|
|
PC Software |
S4C-DP Application |
|
Display (Optional) |
|
|
Integrated |
0.66” OLED display, indicates the measured value and unit |
|
Material |
|
|
Process connection |
Stainless steel 1.4301 (SUS 304) |
|
Housing |
Display cover: PC + ABS |
|
Sensor |
Polymer + Quartz-Crystal |
|
Metal parts |
Sinter filter (stainless steel) |
|
Miscellaneous |
|
|
Electrical connection |
M12, 5-pole |
|
Protection class |
IP65 |
|
Approvals |
CE |
|
Process connection |
G 1/2” (ISO 228/1) |
|
Weight |
180 g |
|
Operating conditions |
|
|
Medium |
Air, Argon, O₂, N₂, CO₂ |
|
Medium quality |
ISO 8573-1: 4.6.3 or better |
|
Medium temperature |
-30 ... +70 °C |
|
Medium humidity |
≤ 20 °C Td |
|
Operating pressure |
0.1 ... 1.6 MPa |
|
Ambient temperature |
0 ... +50 °C |
|
Ambient humidity |
0 ... 100 % rH |
|
Storage temperature |
-20 ... +50 °C |
|
Transport temperature |
-30 ... +70 °C |
