SUTO S520 Portable Dew Point Meter For Compressed Air And Gases
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Portable Dew Point Meter For Compressed Air And Gases | Model Number | S520 |
|---|---|---|---|
| Dew Point Sensor | QCM+Polymer;Polymer | Dew Point Range | -100~+20 °CTd ;-60~+50 °CTd |
| Temperature Rnage | -30~+70 °C | Materials | PC+ABS |
| Classification | IP30 | Measured Gases (Medium) | Air, N2, O2, Argon, CO2 |

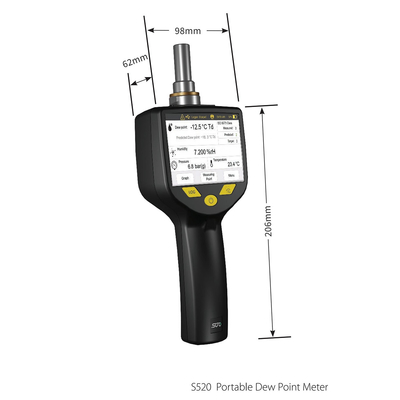

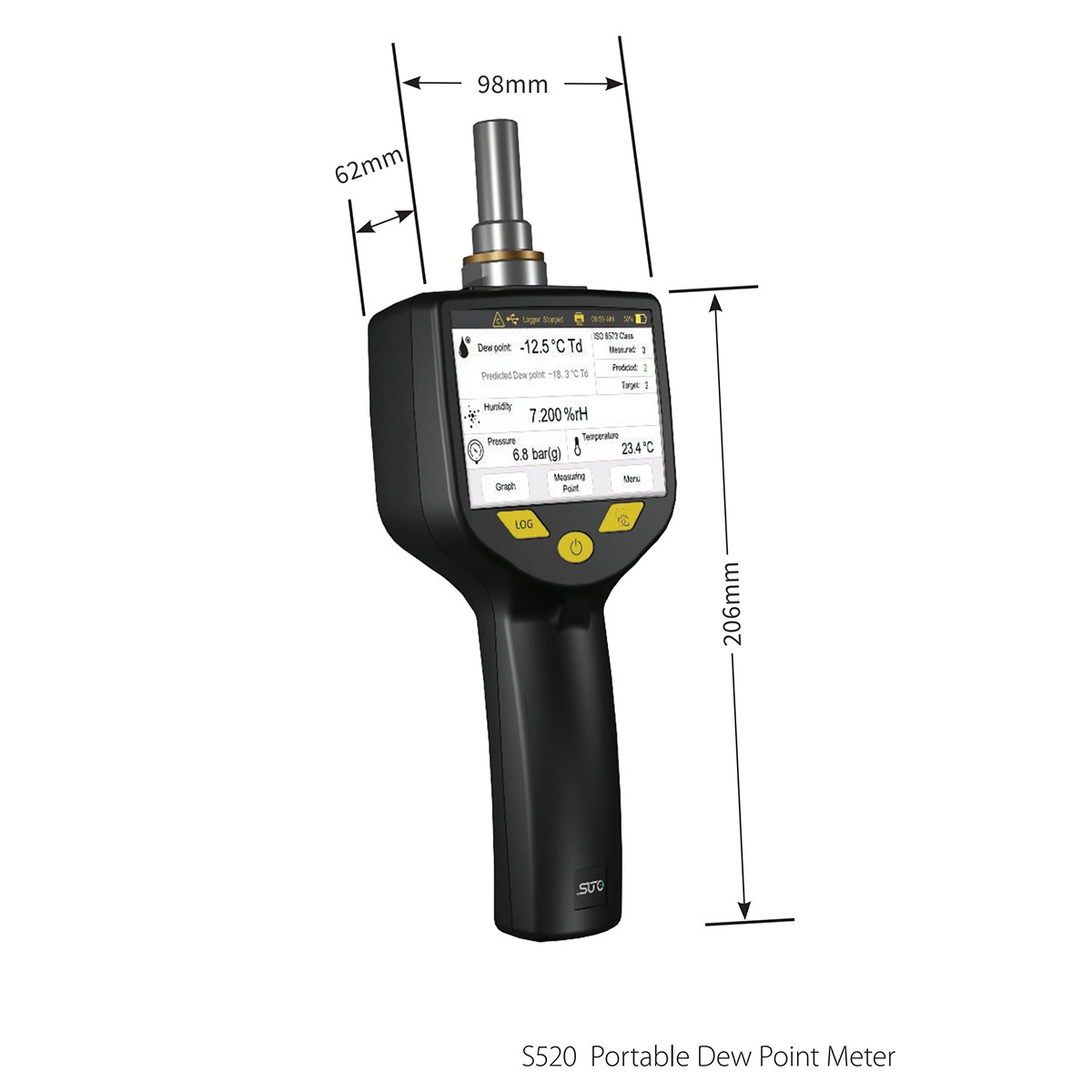

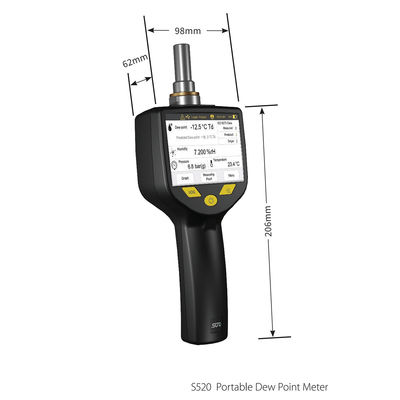

| Size | 98X62X206mm | Weight | 2.7 Kg Complete Set In Transport Case |
| Highlight | Compressed Air Dew Point Meter,Gases Dew Point Meter,Portable Dew Point Meter |
||
Product Description

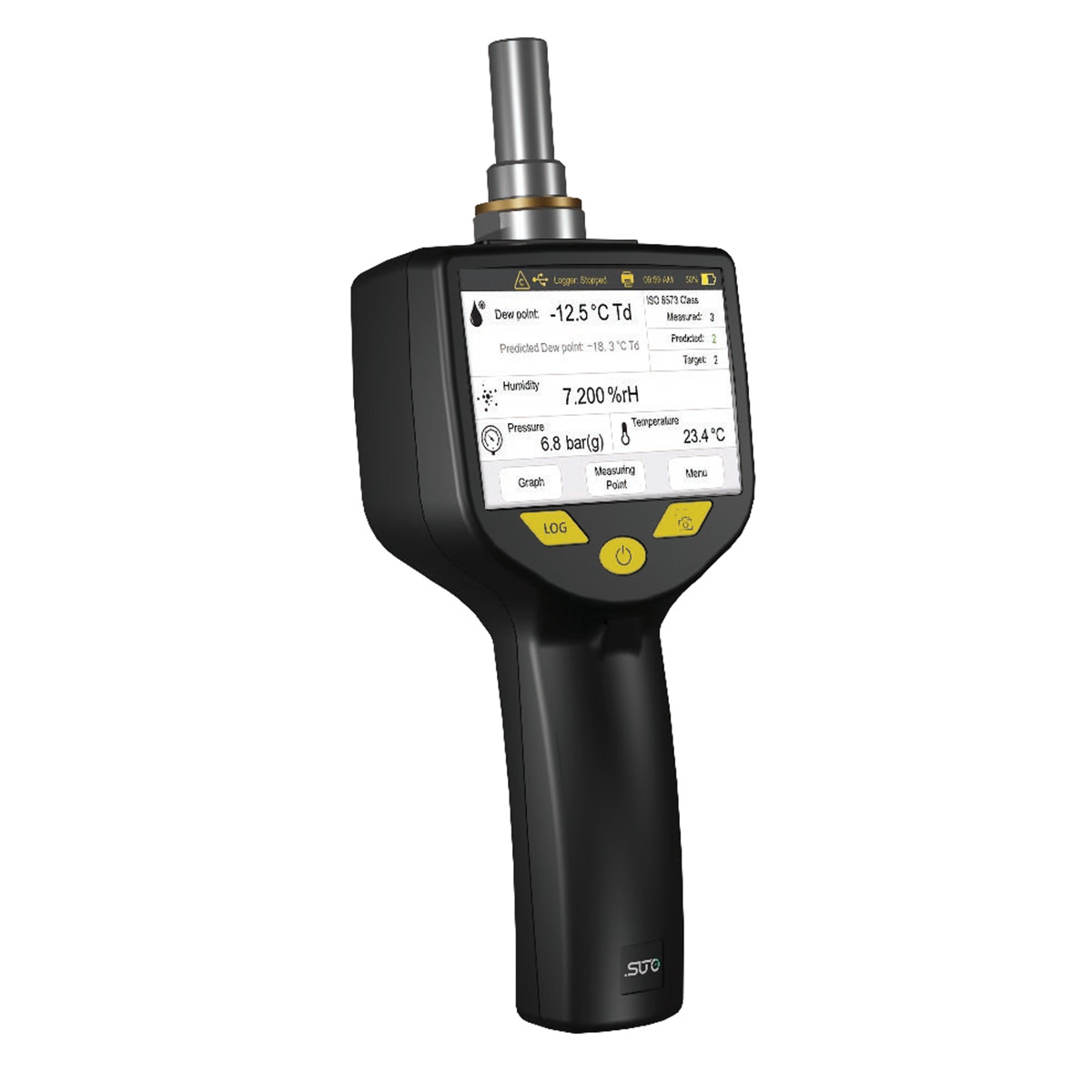

S520 Portable Dew Point Meter for Compressed Air and Gases (-100~+20°CTd / -60~+50 °CTd)
OVERVIEW
The S520 Portable Dew Point Meter offers users a single hand-held unit to easily perform on-site measurements in compressed air and gas systems. With its state-of-the-art dew point technology, the S520 provides dew point monitoring at the point-of-use. The first steps toward maintaining high standard compressed air quality and purity conditions.
FEATURES
· Unique Triple-Sensor System
With the combination of a QCM and a Polymer sensor in a single unit, the user can measure the dew point in a range from -100 °C Td up to +20 °C Td. without having any drawbacks in terms of accuracy. The integrated pressure sensor allows converting the measured value into any humidity value needed, for example ppm(v) or atmospheric dew point.
· Dew Point Value Prediction
The S520 Portable Dew Point Meter includes an innovative dew point end value prediction algorithm, which anticipates the final value based on the measurement curve, allowing users to predict it quickly. This feature saves time for on-site engineers, enabling faster dew point audits, and is part of the device’s smart features.
· Optional Smart Features

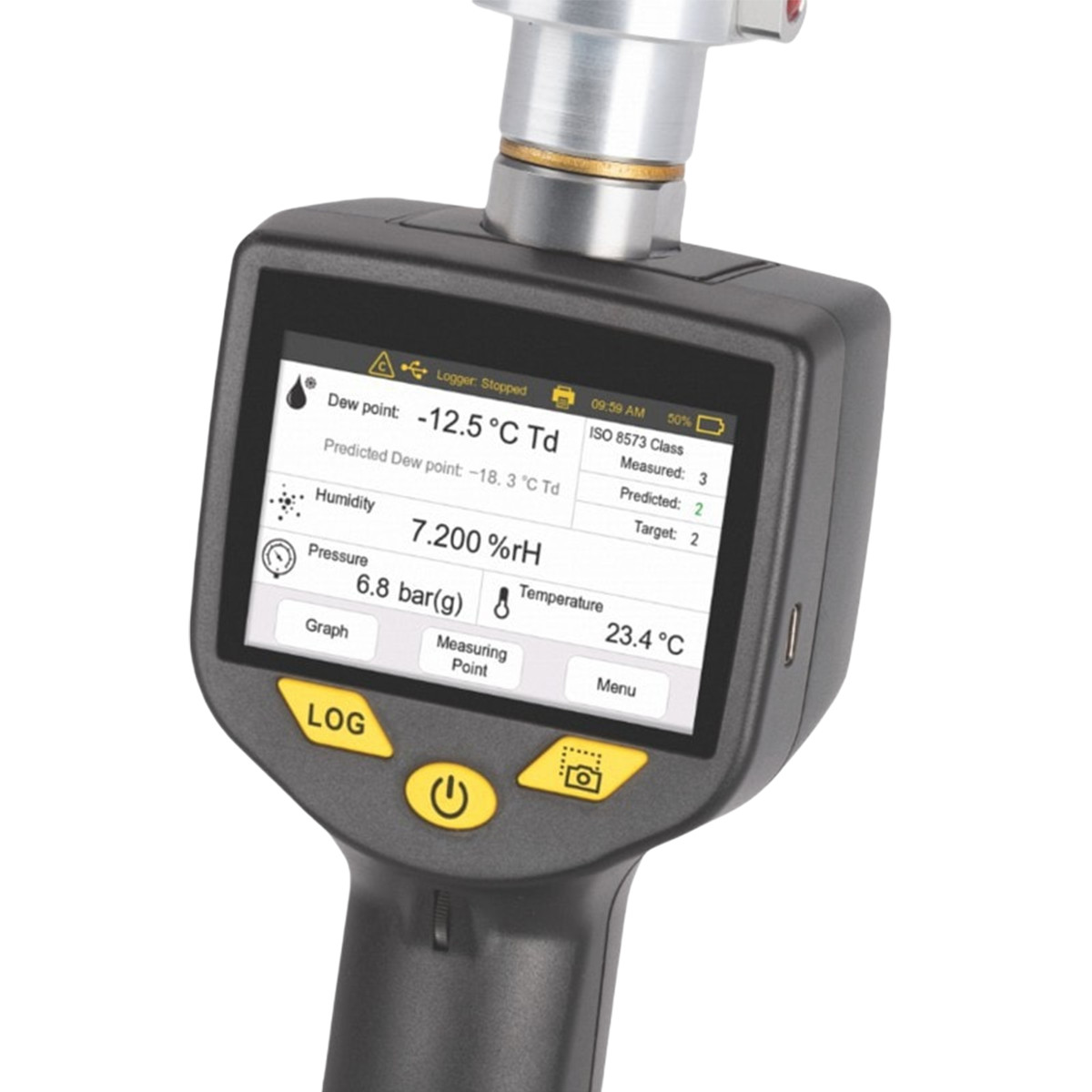

Dew point end value prediction is one of the smart features. Users can also access a 5-megapixel camera and snapshot function for rapid measurement logging, all controllable via touchscreen input for added convenience.
· PDF Report Function according to ISO 8573-1
The S520 allows users to generate ISO 8573-1 standard-compliant PDF reports on-site, with options to input customer and service provider details for comprehensive audits. Reports can be created from any device recordings and swiftly copied to a connected USB drive. The device’s integrated pressure sensor ensures accurate measurements under actual conditions, meeting ISO standards.
APPLICATION SCENES
- ISO 8573-1 dew point audits
- Fast and convenient dew point checks
- Check drier performance
- Humidity checks at the point of use
- Measure absolute humidity in units like ppm or mg/m3
SPECIFICATION
MEASUREMENT |
|
| Dew point | |
| Accuracy | ± 1 °C Td (0 ... 20°C Td) ± 2 °C Td (-70 ... 0 / +20 … +50°C Td) ± 3 °C Td (-100 ... -70°C Td) |
| Selectable units | %rH, °C Td, g/m³, mg/m³, g/m³ atm. ,mg/m³ atm. , ppmv, g/kg, °C Td atm. |
| Measuring range | Sensor A: -100 ... +20°C Td Sensor B: -60 ... +50°C Td |
| Repeatability | 0.5 °C |
| Sensor | Sensor A: QCM + Polymer Sensor B: Polymer |
| Pressure | |
| Accuracy | 0.5 % FS |
| Measuring range | 0 ... 1.5 MPa (g) |
| Sensor | Piezo resistive sensor |
| Temperature | |
| Accuracy | ± 0.3 °C |
| Measuring range | -30 ... +50 °C |
| Sensor | PT 100 |
SIGNAL INTERFACE & SUPPLY |
|
| Supply | |
| Power supply | USB charger: 5 V, 3 A Connector: USB-C |
| Operating time | 8h |
| Data interface | |
| Connection | USB |
GENERAL DATA |
|
| Display | |
| Integrated | 3.5” color LCD touch screen |
| Data Logger | |
| Storage | Integrated mass storage, up to 30 million recorded data sets (4 channels each) |
| Material | |
| Housing | PC + ABS |
| Metal parts | Aluminium |
| Miscellaneous | |
| Protection class | IP30 |
| Approvals | CE |
| Weight | 2.7 kg complete set in transport case |
| Operating conditions | |
| Medium | Air, N2, O2, Argon, CO2 Note: The CO2 measurements with the A1371 sensor are limited to -40 °C Td. |
| Medium temperature | -30 ... +50 °C |
| Medium humidity | 0 ... 90 %, no condensation |
| Operating pressure | -0.1 ... 1.6 MPa (g)* |
| Ambient temperature | 0 ... +40 °C |
| Ambient humidity | 0 ... 80 % rH |
| Storage temperature | -20 ... +50 °C |
| Transport temperature | -30 ... 70 °C |

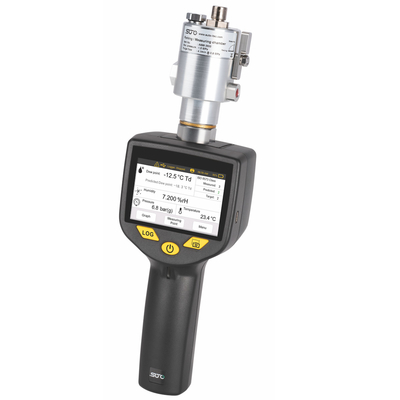

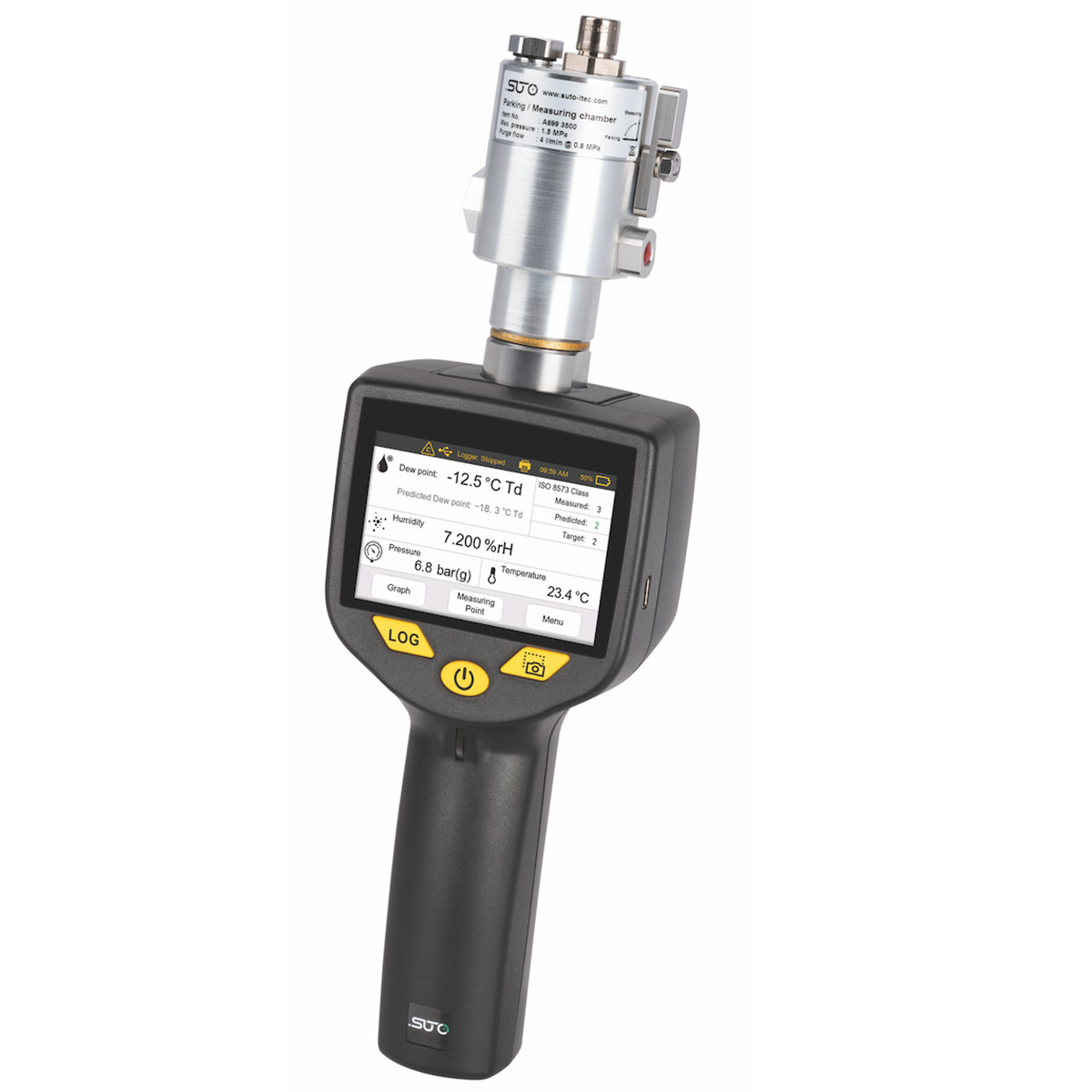

| * At least 0.3 MPa(g) is needed for the measuring chamber supplied with the instrument. For low-pressure measurements below 0.3 MPa (g) choose the optional bypass measuring chamber A699 3501. |
|
