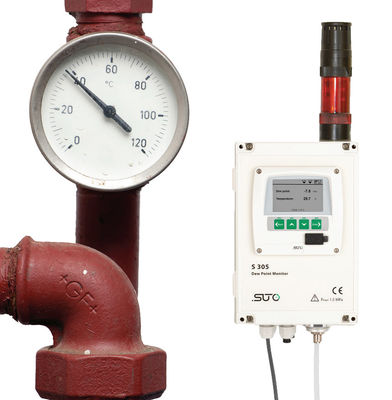

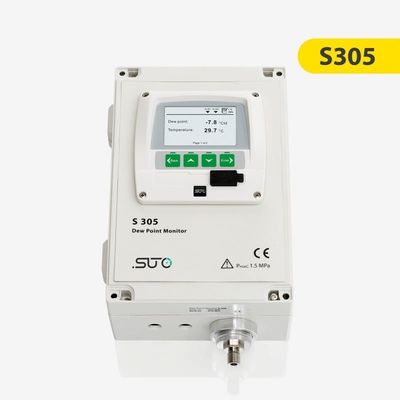

SUTO S305 Dew Point Monitor For Desiccant And Fridge Dryers
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Dew Point Monitor For Desiccant And Fridge Dryers | Model Number | S305 |
|---|---|---|---|
| Dew Point Sensor | Polymer | Dew Point Range | -50~+20 °CTd ;-20~+50 °CTd |
| Temperature Rnage | -30~+70 °C | Materials | ABS, Aluminum Alloy |
| Classification | IP65 | Measured Gases (Medium) | Non-corrosive Gases |
| Signal | 4-20 MA 3-Wire | Supply Voltage | 100-240 VA 50/60 Hz ; 24 VDC |
| Size | 160X105.5X240mm | Weight | 520 G |
| Highlight | SUTO S305 Dew Point Monitor,Desiccant Dew Point Monitor,Fridge Dryers Dew Point Monitor |
||
Product Description
S305 Dew Point Monitor for Desiccant and Fridge Dryers (-50~+20°CTd / -20~+50°CTd)
OVERVIEW
The SUTO S305 Dew Point Monitor offers a simple and inexpensive dew point monitoring solution, with alarm options. The all-in-one solution serves as a dew point measuring and display device for desiccant and fridge dryers.
FEATURES
· Alarm Indications Before It Is Too Late
Refrigeration dryers are among the dryers in compressed air treatment most commonly used. If the required drying is not achieved, the impact of wet air can be serious: Rust in the pipes, failures of machines, and a negative impact on product quality.
The S305 Dew Point Monitor has an optical red backlight which blinks when an alarm is triggered as well as 2 alarm relays which can be used to connect to alarm lights and sirens to warn when dew points are not within the pre-defined ranges. Two alarm levels can be programmed (pre and main alarm).
· Two Measurement Range Models
The S305 can be ordered in two ranges, to perfectly fit your needs:
Option 1: -50… +20 °C Td
Option 2: -20 … +50 °C Td
· Various Connection Options
The connection to the compressed air network is via a 6 mm quick-connector and corresponding connecting hose. The 4 … 20 mA output can be used to connect the dew point monitor to a PLC or a SCADA system.
· Easy Installation and Robust Design
The entire measuring unit is integrated with the display in a rugged housing. The IP65 casing provides robust protection in harsh industrial environments. The dew point monitor is available both as a panel variant or as a wall-mounted housing.
APPLICATION SCENES
- Monitor fridge and desiccant driers
- Simple after-market installation
- Monitoring of process humidity and notification in case of alarms
- Control dew point temperature at a single glance
SPECIFICATION
MEASUREMENT |
|
| Dew Point | |
| Accuracy | ±2 °C Td |
| Selectable units | °C, °F |
| Measuring range (model depending) | -50 ... +20 °C Td -20 ... +50 °C Td |
| Sensor | Polymer |
| Response time t90 (@ 4l/min) | -50 °C Td -> -20 °C Td = 20 sec 0 °C Td -> -40 °C Td = 120 sec |
| Temperature | |
| Accuracy | 0.3 °C |
| Measuring range | -30 ... +70 °C |
| Sensor | NTC |
| Reference conditions | |
| Selectable conditions | Pressure Dew Point |
SIGNAL INTERFACE & SUPPLY |
|
| Analog output | |
| Signal | 4 ... 20 mA 3-Wire |
| Scaling | -50 ... +20 °C Td or -20 ... +50 °C Td |
| Load | 250R |
| Update rate | 3 / sec |
| Supply | |
| Voltage supply (model depending) | 100 ... 240 VAC ; 50/60 Hz 24 VDC |
| Current consumption (model depending) | 40 mA @ 220 VAC 120 mA @ 24 VDC |
GENERAL DATA |
|
| Configuration | |
| PC Software | S4C-Display Software |
| Others | Instrument comes pre-configured Plug & Play |
| Display | |
| Integrated | LCD Display, indicates values and alarms |
| Material | |
| Process connection | Stainless steel 1.4301 (SUS 304) |
| Housing | ABS, Aluminium alloy |
| Sensor | Polymer |
| Metal parts | Sinter Filter (stainless steel) |
| Miscellaneous | |
| Electrical connection | Screw terminals |
| Protection class | IP65 |
| Approvals | CE |
| Process connection | 6 mm quick connector |
| Weight | 520 g |
| Operating conditions | |
| Medium | Non-corrosive gases |
| Medium quality | ISO 8573-1: 4.6.3 or better |
| Medium temperature | -30 ... +70 °C |
| Medium humidity | ≤ 20 °C Td or ≤ 50 °C Td (model depending) |
| Operating pressure | 0.3 ... 1.5 MPa |
| Ambient temperature | -10 ... +40 °C |
| Ambient humidity | 0 ... 100 % rH |
| Storage temperature | 0 ... +40 °C |
| Transport temperature | -30 ... +70 °C |
| Stated accuracy under following conditions: | |
| Ambient temperature 23 °C ±3 °C Process temperature 23 °C ±3 °C Ambient humidity < 95 %, no condensation Airflow > 2 l/min at sensor tip |
|
