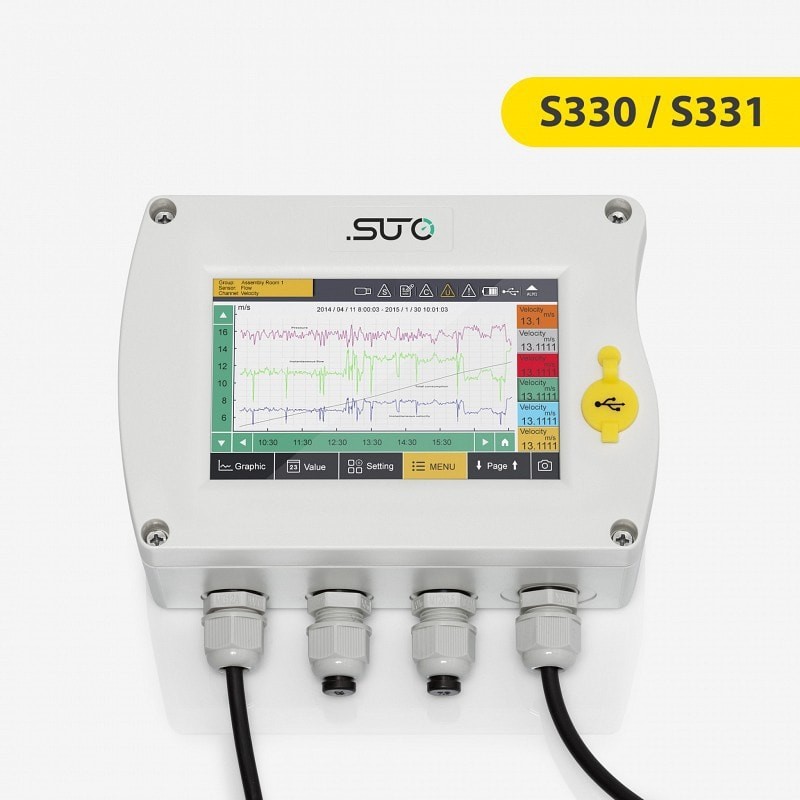

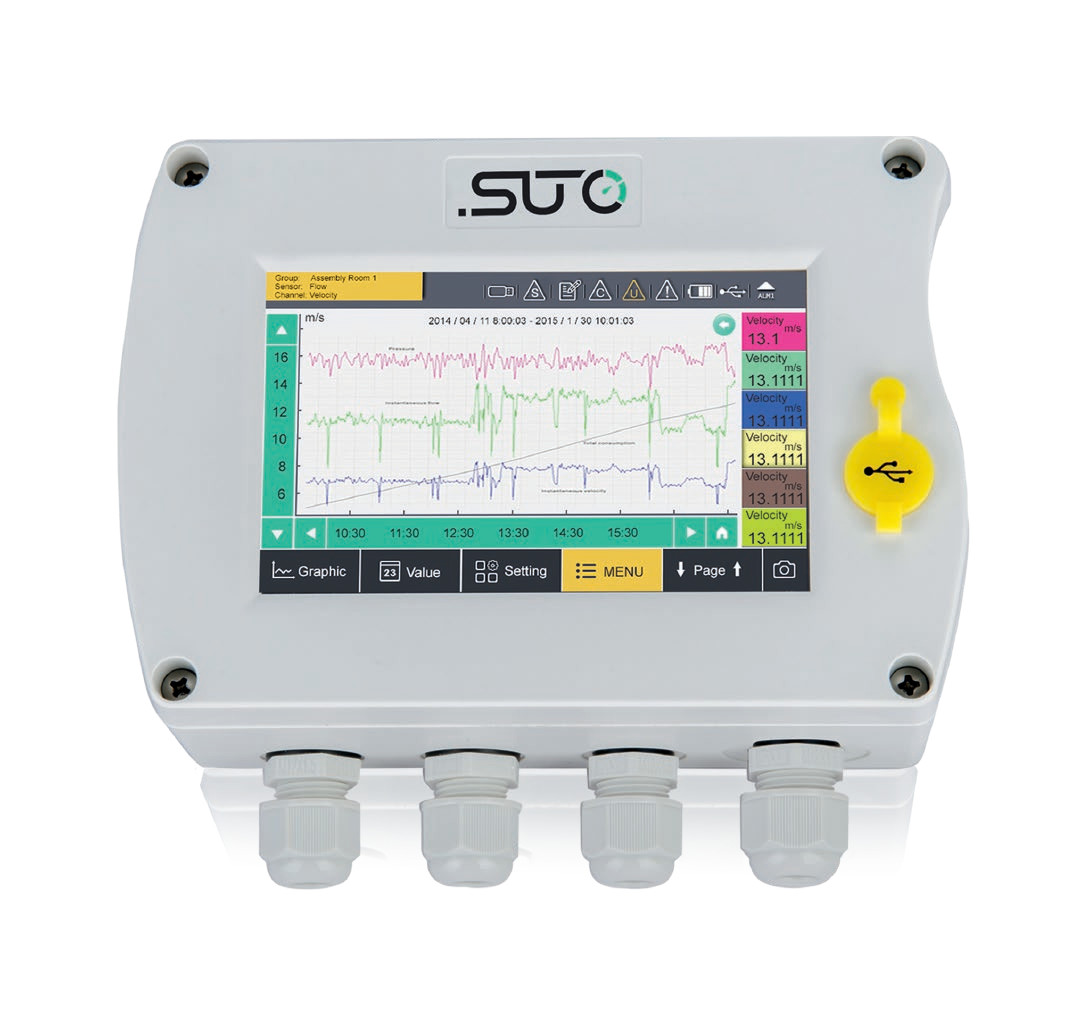

The S330 / S331 Data Logger and Display provides a universal solution for displaying and recording all relevant parameter of a compressed air system. This includes flow, dew point, pressure, temperature, power consumption, compressor status, and so on. The device offers a powerful yet cost-efficient data logger and display solution for optimal and reliable management and monitoring of your compressed air system.

S330: Display Solution

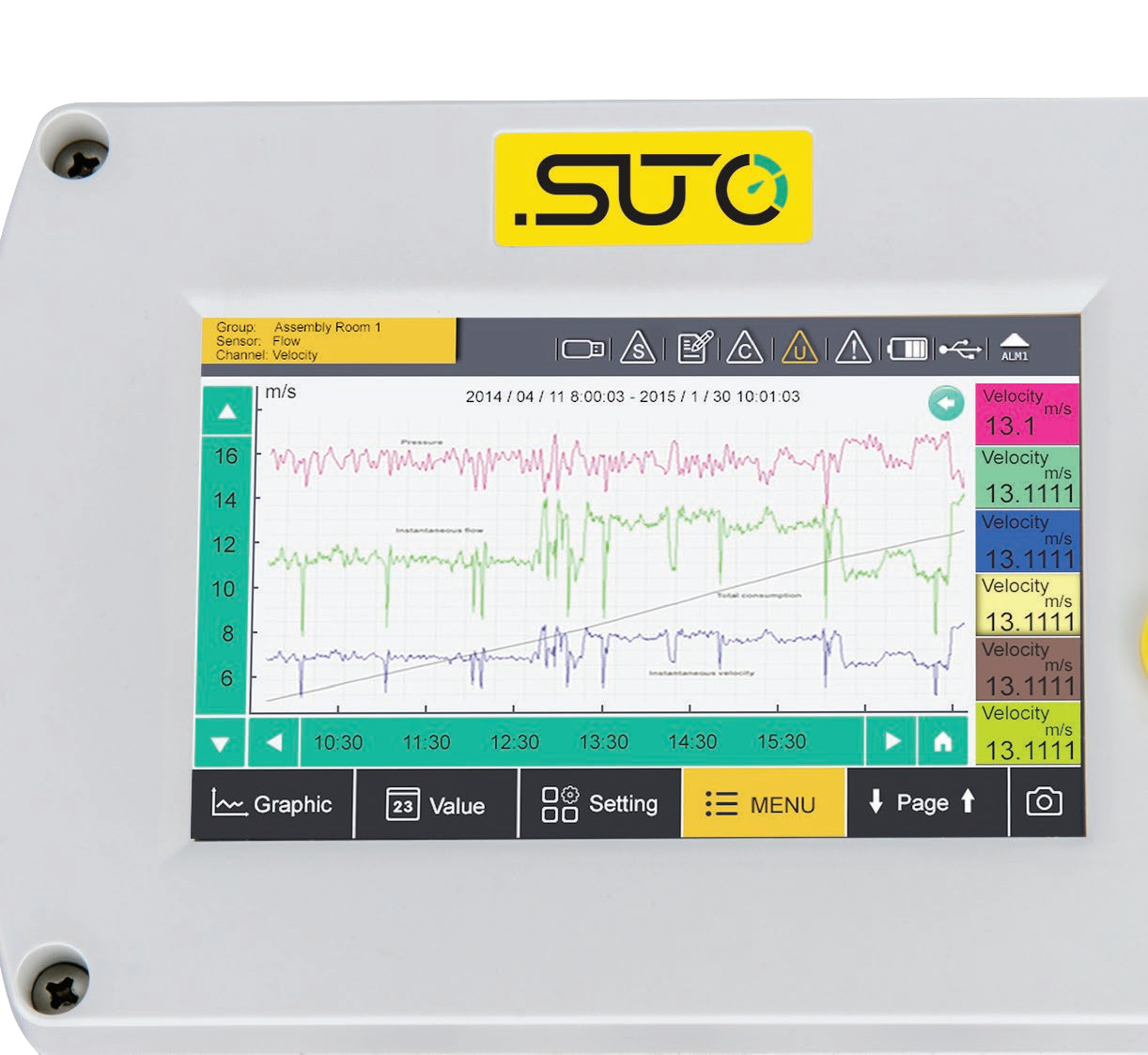

The S330 is a simple and easy-to-install display device with a high resolution 5” graphic display. This allows an easy operation where details are much sharper shown compared to many of the smaller low-resolution displays.

Various Connection Options

The S330 / S331 includes digital inputs for SUTO SDI sensors and Modbus/RTU sensors. To connect the Modbus/RTU sensors properly on an RS 485 bus system, it’s recommended to daisy-chain the sensors to one of the inputs. For this purpose, SUTO offers a RS 485 splitter to simplify the connection. Through this method, users can add up to 16 sensors to the master input, making it most versatile and allowing to monitor whole plants with a single data logger (Additional power supplies for field devices might be necessary).

Connect Third-Party Sensors and Field Device Support

By relying on the industry standard protocol Modbus/RTU, the S330 / S331 supports third-party sensors to be easily integrated into the monitoring system. Field devices can be easily set up using the configuration software, allowing to add a third-party sensor within seconds. All connected sensor data can be logged to the internal memory. This can be used for virtual channel calculations. All real-time values are also forwarded to connected software and monitoring solutions.

Collect Your Sensor Data for Further Analysis

Through the free SUTO S4A software, recordings are downloaded to the PC via USB, LAN or wirelessly using the LTE/4G Modem. The basic analysis can be done in S4M. For more sophisticated compressor analysis, the SUTO CAA software (incl. with the S551) offers many advanced features such as: Performance statistics of compressors like efficiency, air delivery, load/unload cycles as well as leakage analysis, report generation and more.
